72 - PowerBook G4 (12-inch) Take Apart
Inner Frame: PowerBook G4 (12-inch DVI)
2. Warning: The subwoofer cone, located below the right corner of the frame, is a
sensitive device. Avoid touching the cone as you perform this procedure.

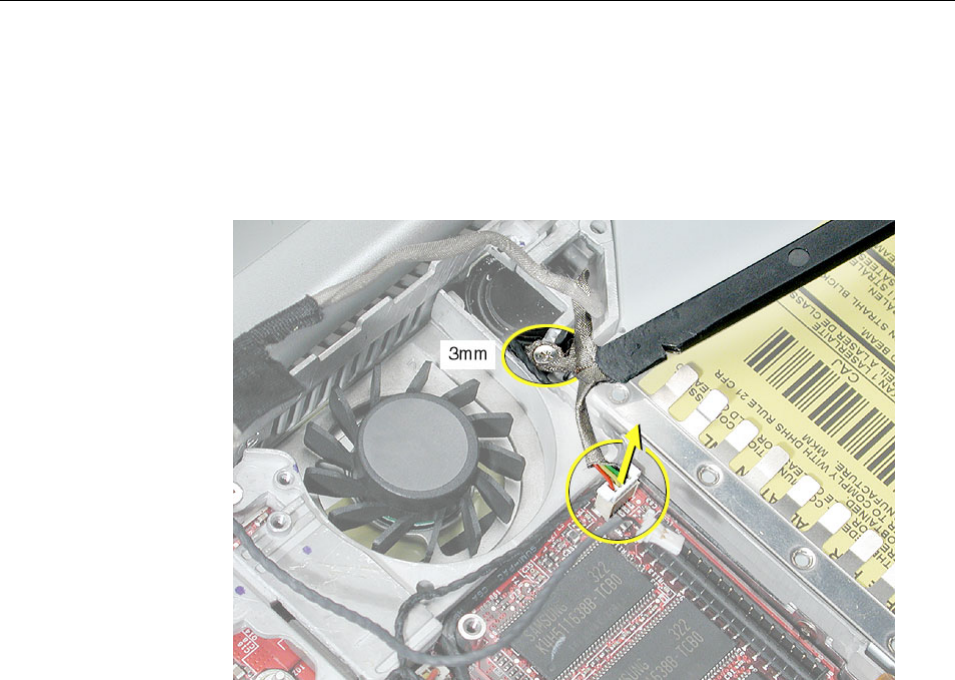

3. Disconnect the connector from the upper right corner of the logic board.
4. Remove the screw near the right corner of the frame.
