Fan: PowerBook G4 (12-inch DVI)
Fan: PowerBook G4 (12-inch
DVI)
Tools
This procedure requires the following tools:
• #0 Phillips screwdriver
• Black stick (or other nonconductive nylon or plastic flat-blade tool)
Note: To organize the screws you remove from the computer, use a tray with divided
compartments (such as a plastic ice cube tray).

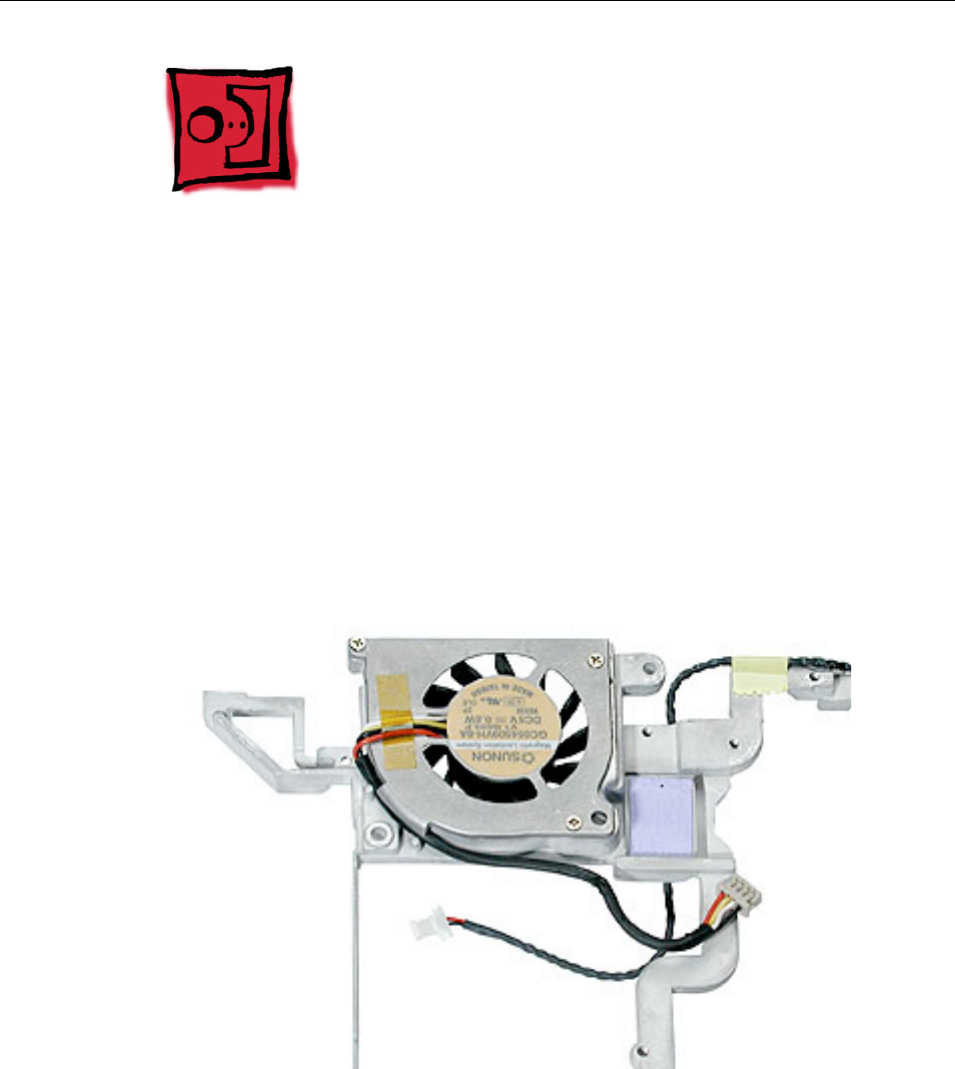

Part Location
Preliminary Steps
Before you begin, remove the following:
• Battery
• Memory door and memory card
• Keyboard
• Top case
• Hall effect Sensor Board
