92 - PowerBook G4 (12-inch) Take Apart
Logic Board

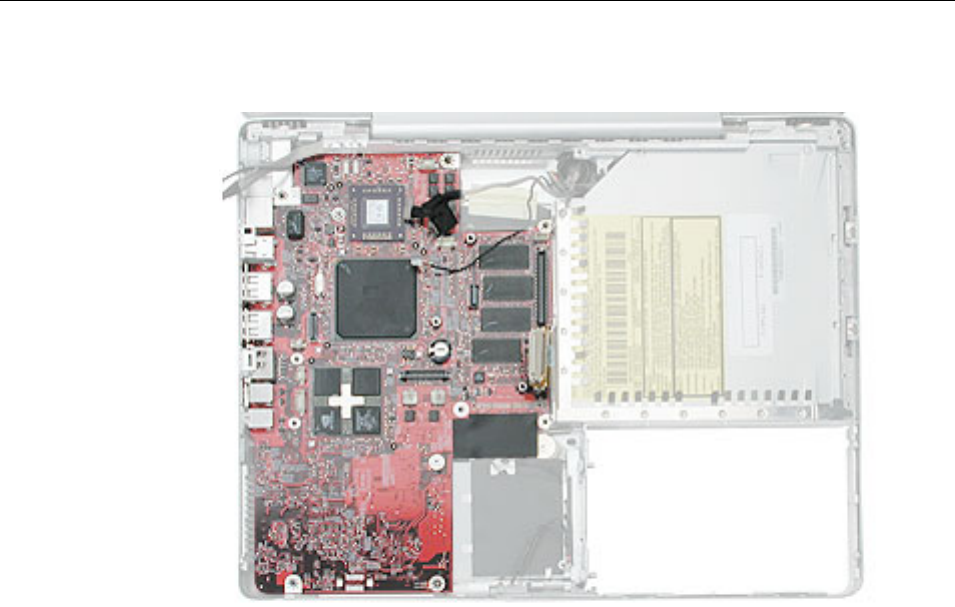

PowerBook G4 (12-inch DVI)
Preliminary Steps
Before you begin, remove the following:
• Battery
• Memory door and memory card
• AirPort Extreme Card, if installed
• Keyboard
• Top case
• Reed switch
• Hard drive
• Modem
• DC-to-DC board
• Heatsink with fan
• Inner frame (with RJ11 board attached)
