Take Apart CD-ROM or DVD-ROM Drive - 10

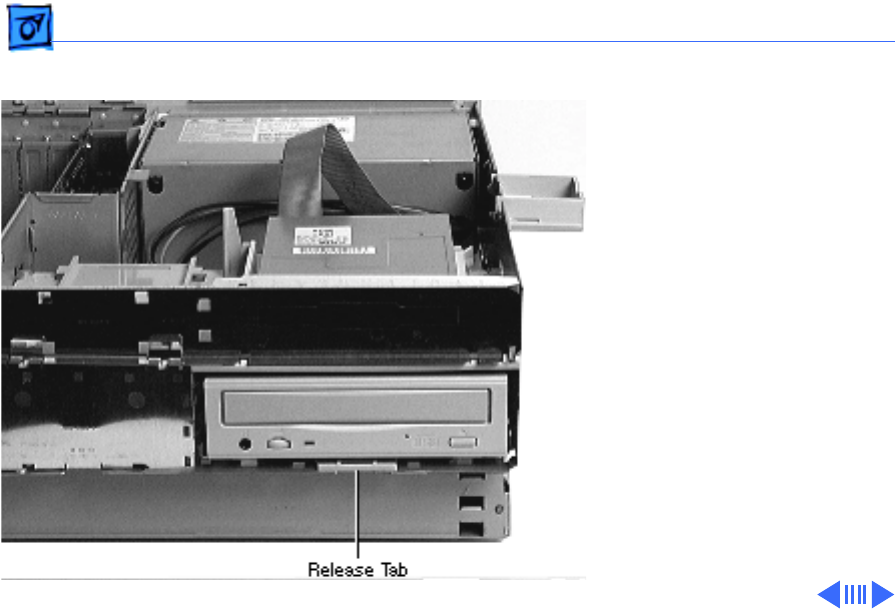

2 Pull up the release tab
and slide the CD-ROM or
DVD-ROM forward to
remove it from the
internal chassis.
Note:
Be sure to remove the
CD-ROM or DVD-ROM drive
from its carrier before
returning the drive to Apple.
Note:
If you have an ultra
wide hard drive installed in
the unit, you must have a
leaf gasket installed in
between the right side of the
CD-ROM drive and the
internal drive chassis.
