Take Apart Open Internal Chassis - 34

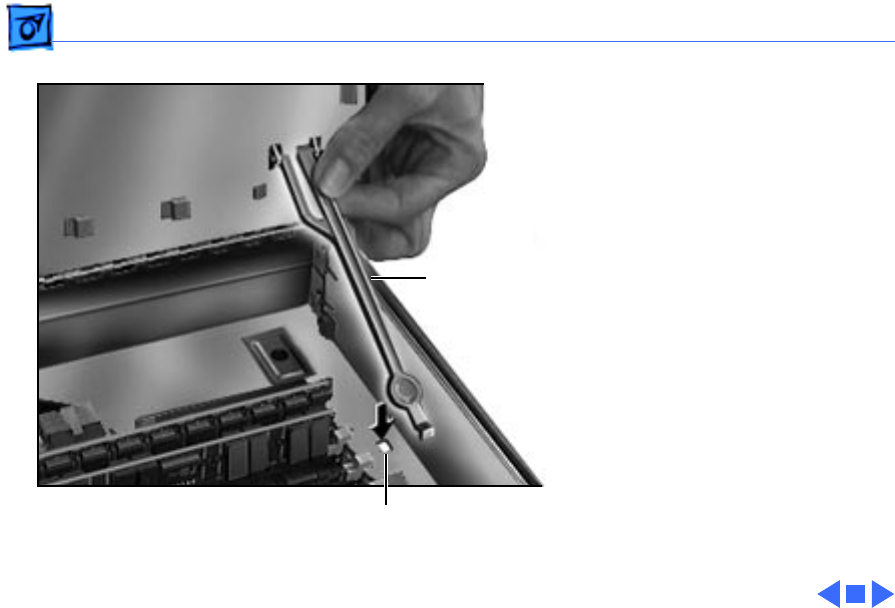

4 To secure the internal
chassis in the up
position, flip down the
chassis support arm.
Make sure the tab on the
bottom of the support
arm is securely fastened
in the hole provided in
the bottom chassis.
Warning:
To be safe, never
work on the computer with
the internal chassis in the
up position unless the
chassis support arm is down
and securely fastened.
Chassis
Support Arm
Tab
