Take Apart Hard Drive - 37

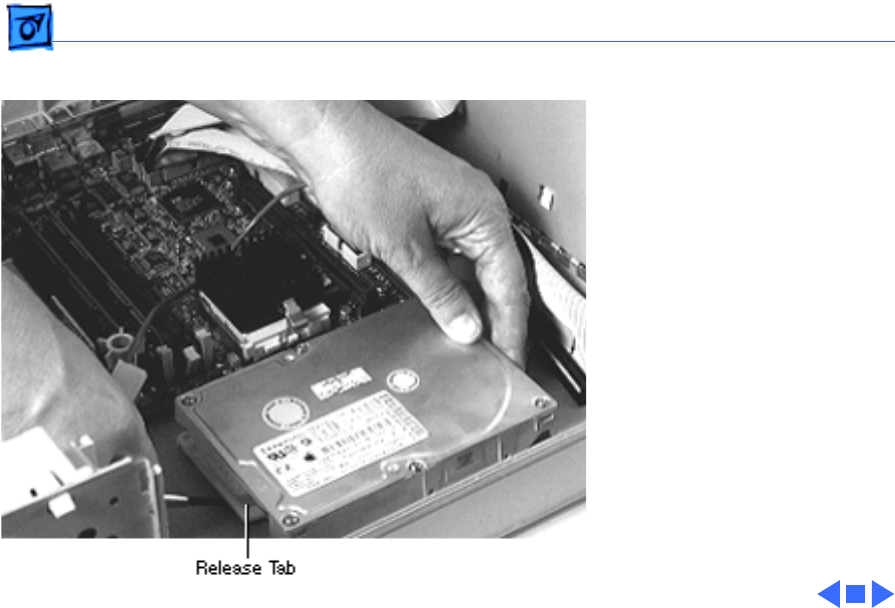

2 Pull up the release tab at
the front of the hard
drive and push the back
of the hard drive to
remove it from the drive
chassis.
Note:
For information on
removing the hard drive
from its carrier and
returning drives, cables,
and carriers to Apple, refer
to Additional Procedures in
the Hard Drives manual.
