Take Apart Drive Rails - 38

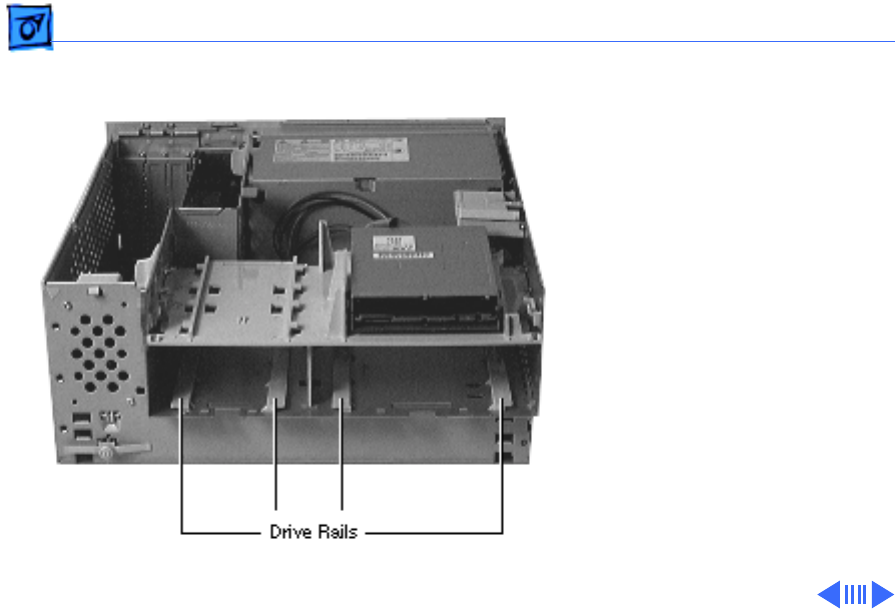

Drive Rails
Before you begin, do the
following:
• Remove top housing
• Remove CD-ROM or DVD-
ROM drive
• Remove Zip drive
• Open Card Retainer Baffle
• Open internal chassis
• Remove hard drive
Note:
The drive rails attach
to the chassis underneath the
CD-ROM or DVD-ROM
drive, Zip drive, and hard
drive.
