Take Apart Processor Module - 54

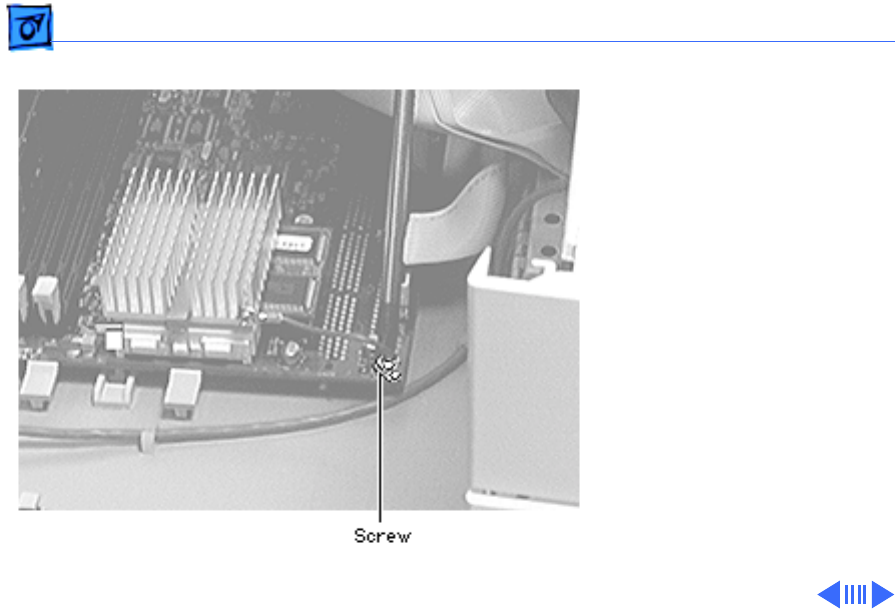

1 Remove the screw that
holds the processor
module wire to the logic
board.
Replacement Note: The
processor module wire
attaches to the top of the
logic board (not
underneath). When
screwing down the wire, be
careful not to damage the
capacitor that is next to the
screw hole. Use a manual
screw driver to avoid
damaging the capacitor.
