Take Apart Processor Module - 59

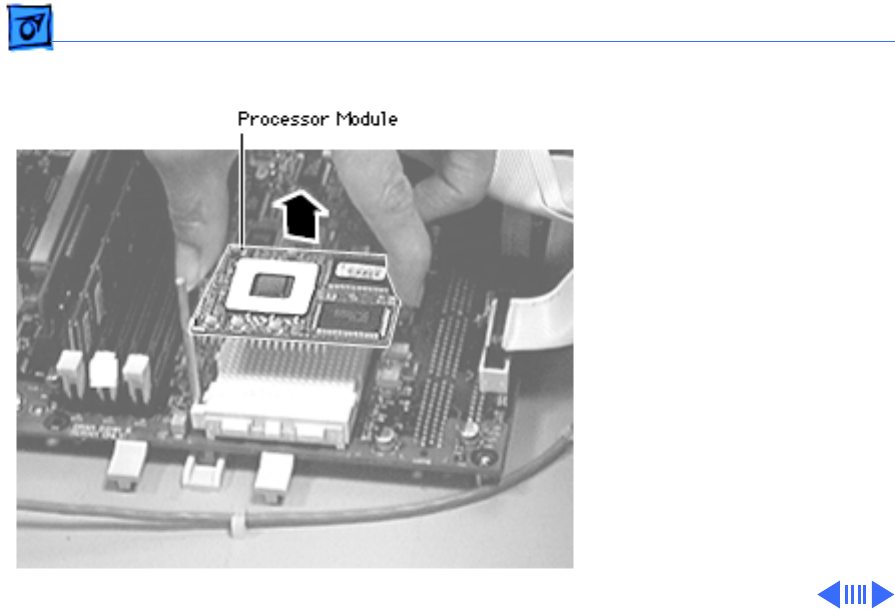

6 Pick up the processor
module by the edges and
gently lift straight up to
remove it. Be careful not
to bend the pins under-
neath the module.
IMPORTANT: If you are
only replacing the processor
module, stop here. If,
however, you are removing
the processor module in
order to replace the logic
board, continue on to the
next page.
Replacement Note: Don’t
force the processor module.
