User's Manual

Take Apart Processor Module - 61

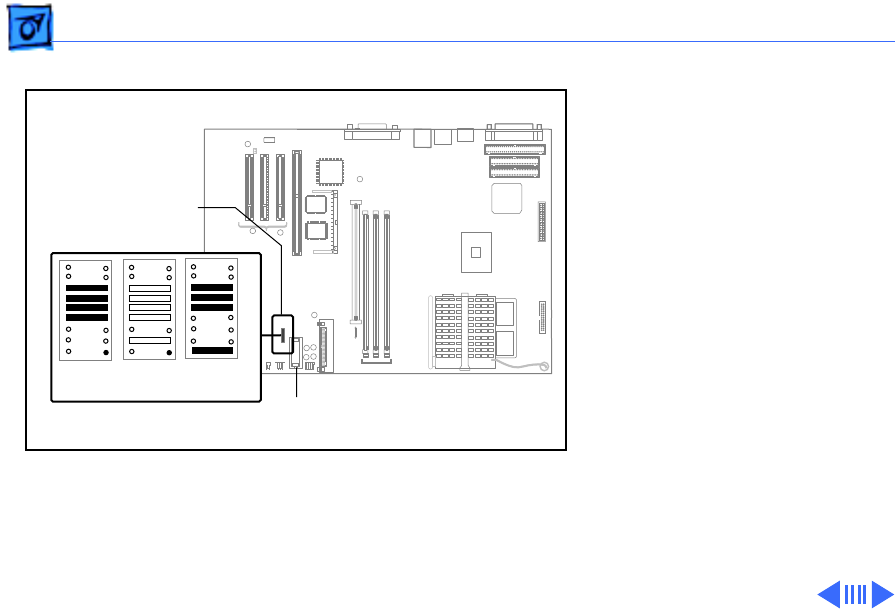

8 Install the jumper as
shown. Depending on the
computer’s processor
speed, you will install a
red jumper (233 MHz),
a white jumper (266
MHz), or a black jumper
(300 MHz). Be sure to
cover the pins as shown
and to install the jumper
block with the gold
connector pins facing
down towards the board.
Replacement Note:
Position
the processor module over
the slot, seat it evenly, and
press down gently on the
Battery
Processor
Jumper Block
233 MHz
Red
266 MHz
White
300 MHz
Black
Pin1
Pin1
Pin1
