Take Apart Ultra Wide SCSI PCI Card - 70
1 Attach the end of the
ultra wide SCSI cable
that has just one
connector to the ultra
wide SCSI PCI card.

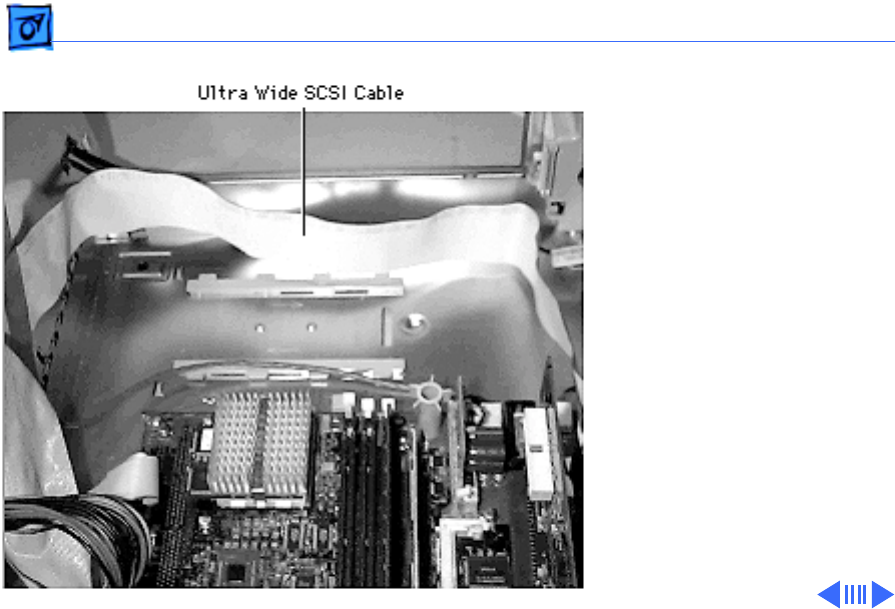

2 Route the cable along the
back edge of the chassis
and away from the logic
board. If there is an
additional hard drive
installed in the bottom
chassis, the cable will
run between the hard
drive and the back
chassis wall.
