Take Apart Ultra Wide SCSI PCI Card - 74
Note: You must order
leaf gaskets to install on
the ultra wide hard drive
whenever you replace
this module.

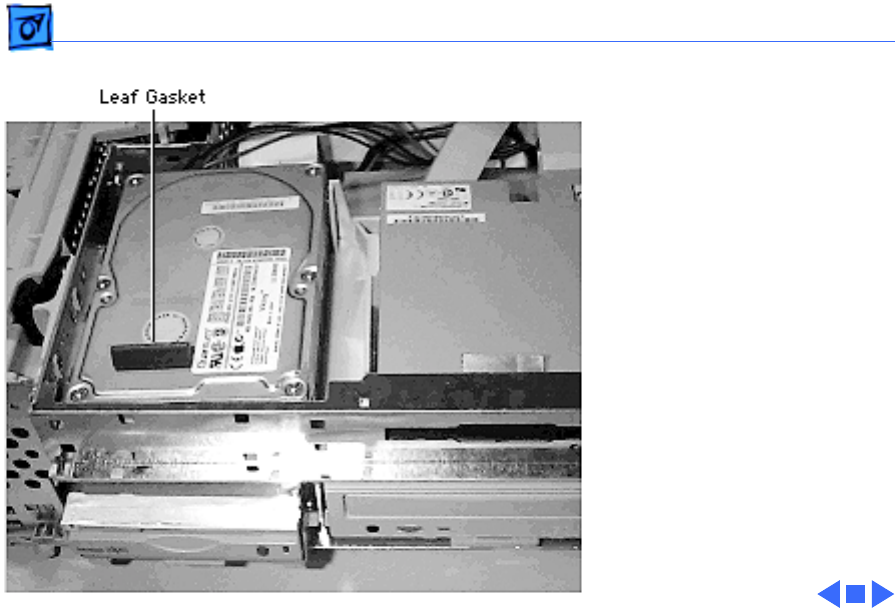

6 If the ultra wide hard
drive is installed in the
upper bay, place one leaf
gasket on the top front
end of the hard drive (as
shown here) and place
another leaf gasket on
the right side of the CD-
ROM or DVD-ROM drive
so that it makes contact
with the drive and the
internal chassis.
