Take Apart Logic Board - 82

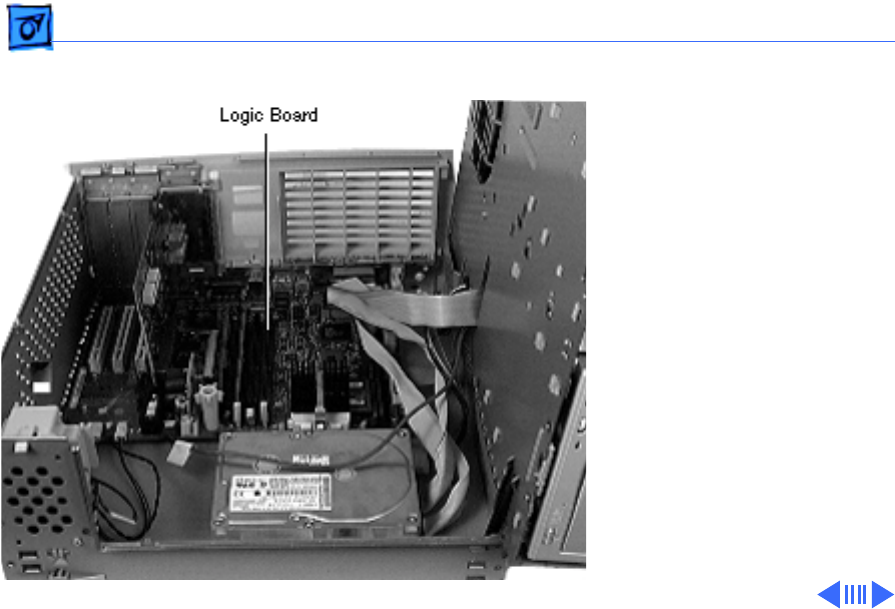

Logic Board
Before you begin, do the
following:
• Remove top housing
• Open Card Retainer Baffle
• Open internal chassis
• Remove PCI cards (if
present)
• Remove I/O card
• Remove processor module
(only if you are replacing
the logic board)
Note: The logic board is
located in the very bottom of
the bottom chassis.
