Take Apart Logic Board - 88

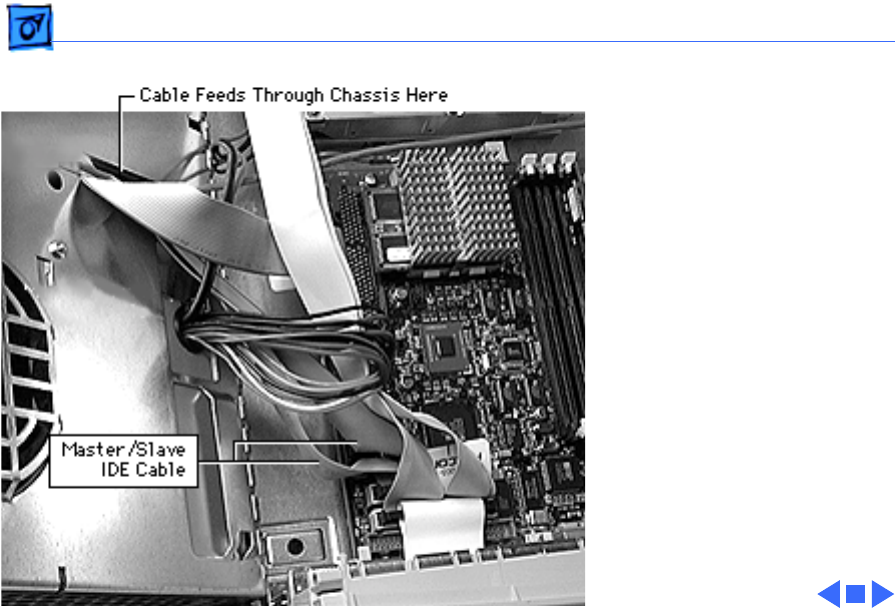

The graphic at left shows
how the split master/slave
IDE cable connects to the
logic board. The same
connector is used for both
the regular IDE cable and the
master/slave IDE cable that
connect to the CD-ROM and
Zip drives, depending on
which one comes with the
unit.
