Take Apart Rear Panel - 90

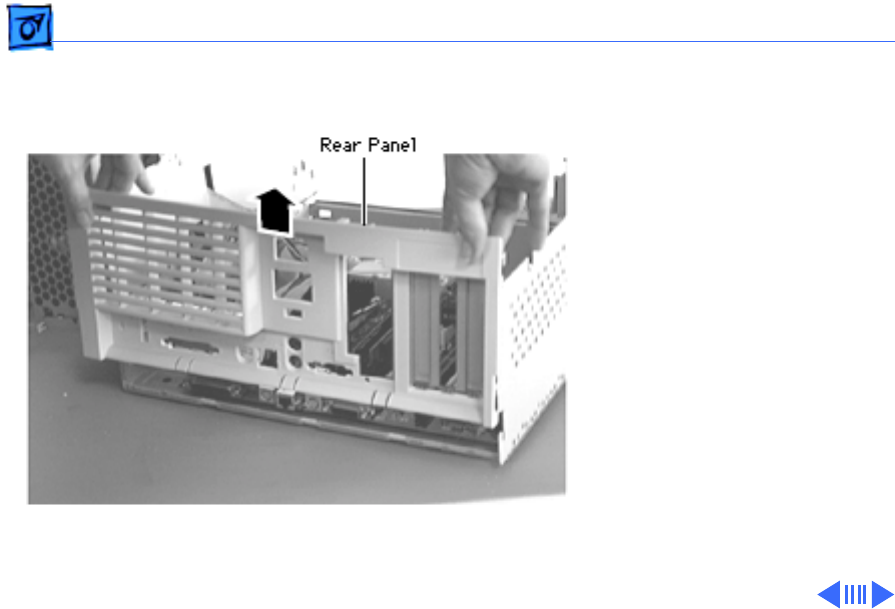

1 Lift the rear panel
straight up to unhook it
from the metal chassis.
Once the rear panel is
unhooked, you can
remove it from the
computer.
Note : There are tabs on the
rear panel that hook into the
metal chassis.
Replacement Note: To
replace the rear panel, you
must first follow the
procedures for removing the
logic board. Instead of fully
removing the logic board
