Troubleshooting Power Supply Verification/Verification Procedure - 13

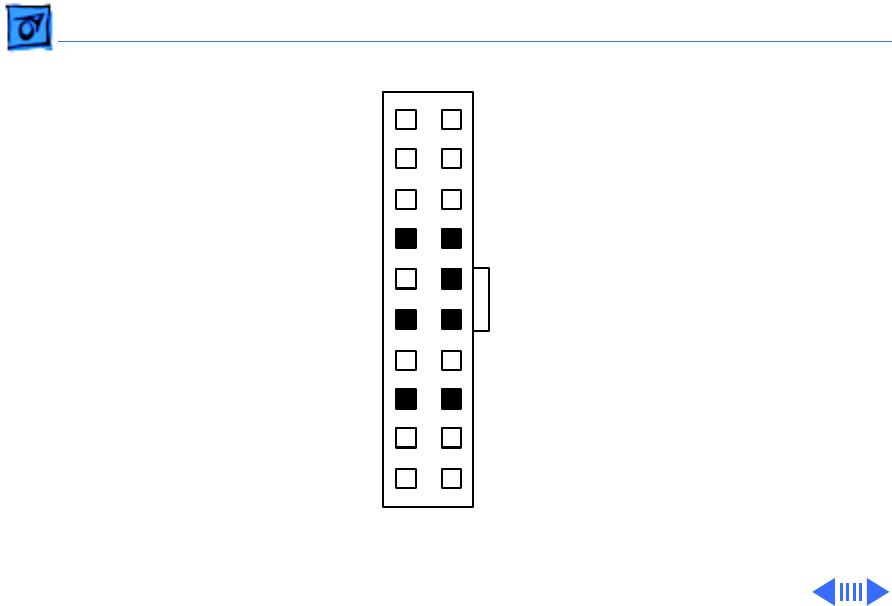

Figure 1. Power Supply 20-Pin Connector
Pin 20 +5V
Pin 19 +5V
Pin 18 GND
Pin 17 GND
Pin 16 GND
Pin 15 GND
Pin 14 [Power On]
Pin 13 GND
Pin 12 -12V
Pin 11 +3.3V
+12V Pin 10
+5V TRKL Pin 9
POK Pin 8
GND Pin 7
+5V Pin 6
GND Pin 5
+5V Pin 4
GND Pin 3
+3.3V Pin 2
+3.3V Pin 1
