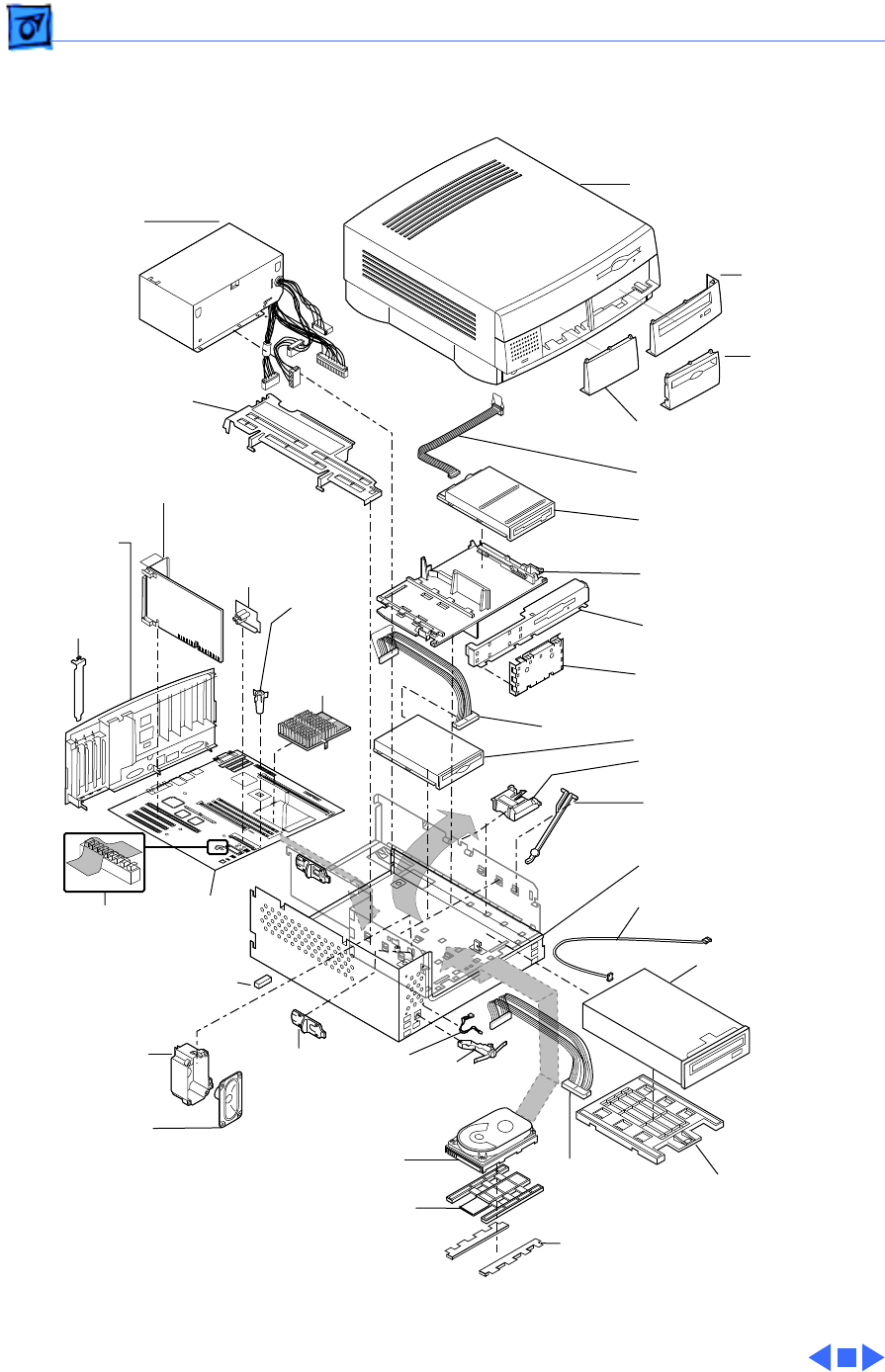

Exploded View 2
Top Housing
922-3282
CD-ROM Drive
661-1401
Rear
Panel
(Part of
Chassis)
Speaker
922-1639
Speaker
Housing
922-1640
CD-ROM
Carrier
922-0850
Floppy Drive
661-1390
Zip Drive
661-1331
Floppy Drive Cable
922-1636
LED
Cable
922-3273
Power
Actuator
922-3280
Floppy/Hard Drive Shield
922-1648
Hard Drive Carrier
922-1124
Power
Supply
661-1445
6GB Hard Drive
661-1451
CD Audio Cable
922-2663
Bottom Chassis
922-3286
Foot
922-2611
Drive Rail
922-3228
Support Arm
922-1730
Support Foot
922-1661
Card Retainer
Baffle
922-3281
CD-ROM
Bezel
922--3276
Blank Bezel
922-1651
Zip Drive
Bezel
922-3285
Blank Shield
922-1652
Chassis
Latch
922-1656
SCSI Cable
922-3271
IDE
Data Cable
922-3272
Floppy/Hard Drive
Chassis Bracket
922-1657
Blank PCI
Cover
922-1628
Column
Support
922-1643
Logic
Board
661-1302
661-2093
I/O Card
(Audio Only)
661-1457
Product family configurations may vary.
Voltage
Regulator
Card
922-3292
Jumper Block Kit
076-0716 (233MHz)
076-0717 (266 MHz)
076-0737 (300MHZ)
Processor
Module
661-1460 (233)
661-1461 (266)
661-2059 (300)
Heat Sink Kit
076-0715
