S-video connection for input from a camera
Composite video connection for input from a camera
6 Turn on the computer and the VCR or camera.
7 To hear or capture on your computer the audio coming into the RCA input ports, open the
Monitors & Sound control panel, click the Sound button, and make sure that the RCA input
ports are the selected sound input source.
Click the button labeled h for help.
You can now begin working with the video equipment connected to your computer. To learn
more about using the AV features of your computer to play or capture video on your
computer, open Mac OS Help (available in the Help menu) and look up “video” in the index.

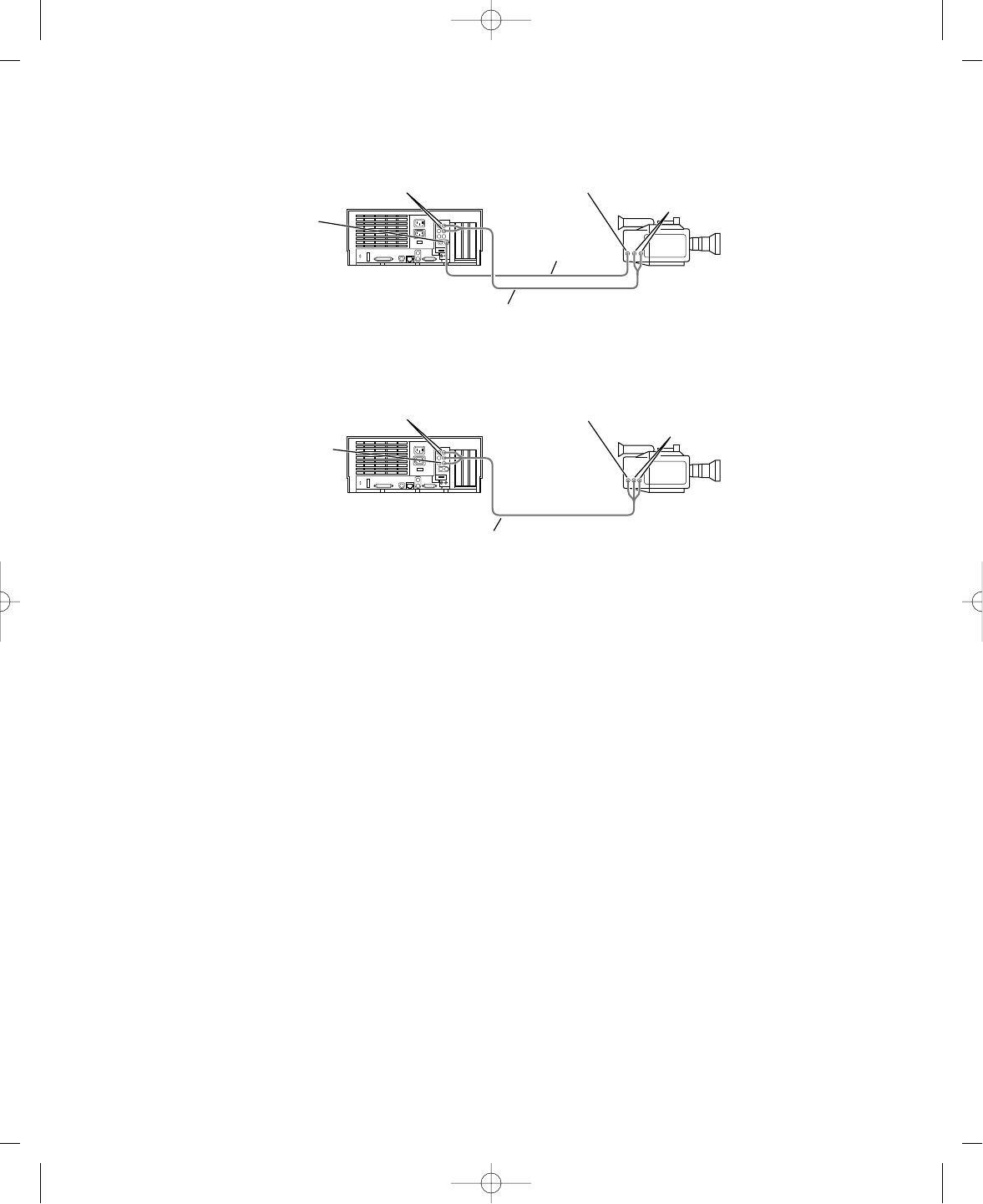

Video Out port Audio Out ports
(left and right)
Composite
video
input port
Audio input ports (left and right)
˜
-
Triple RCA-plug cable (available at most electronics supply stores)
S-video Out port
Audio Out ports
(left and right)
S-video cable
S-video
input port
æ
Audio input ports (left and right)
Dual RCA-plug cable (available at most electronics supply stores)
-
