User's Manual

KP - 6840 Revision E Reader - Keypad I nstallation Sheet 17 June 2006 Page 2 of 2
Product Specifications
Cable to Controller (for basic connections)
· 5, 6 or 7 conductors (not twisted pairs), stranded, 22 AWG, color - coded insulation, overall 100% shielded
(Number of conductors depends upon use of optional features – Beeper, Hold and LED. See Figure 2.)
· Length for Wieg and interface ........................................ Up to 500 feet
Read Range (Metal Compensated)
· At 5 VDC.......................................................................Typically 6 inches (15 cm)
· At 12 VDC.....................................................................Typically 8 inches (20 cm)
Characteristics
· Indoor and Outdoor .......................................................UL Listed
· Operating Temperature Range....................................... - 35 ° C to 65 ° C ( - 31 ° F to 150 ° F)
· Operating Humi dity ....................................................... 0 to 95% non - condensing
Operating Parameters
· Excitation Frequency..................................................... 125 kHz
· Wiegand Output.............................................................Prox reader: 26 bits to 50 bits (as programmed in cards or tags)
Keypad: 26 bits only
Certifications..................................................................................UL 294 Listed; complies with FCC Part 15; CE Mark
Notes
1. A special feature of the KP - 6840 Revision E Reader - Keypad is the ability to convert it easily to an SP - 6820 Revision E proximity
reader (without keypad), and later convert that SP - 6820 back to a KP - 6840.
To convert from KP - 6840 to SP - 6820 : Snap off the KP - 6840’s front cover (see Figure 1). Unplug the keypad assembly by pulling it
straight forward. Snap an SP - 6820 cover (available from AWID) on the base card reader.
To return that SP - 6820 to the original KP - 6840 Rev. E : Snap off the SP - 6820’s front cover (see Fig. 1). Plug the original keypad
assembly into the base reader, aligning the 6 pins and pressing straight in firmly. Snap the original KP - 6840 cover on the unit.
2. Two readers at the same door may need to be separated physically or shielded from each other for best operation. Request Technical
Reference issue on “back - to - back readers” from AWID.
3. When the yellow wire is not used, the beeper remains active and under the reader’s internal control.
4. The Beeper, Hold, and LED lines are logic levels. Never apply power to them. They may be pulled to a low level (0 to 1.2 VDC)
to enable their function. They must float at a high level (3.6 to 5.0 VDC) when not used.
5. KP - 6840 Readers have both Wiegand - protocol and RS - 232 serial interfaces. RS - 232 data out put applies to the card reader output only
(not the keypad). For information on RS - 232, contact AWID’s technical support.
6. For additional information, please visit AWID’s web site ( www.awid.com ). Send all technical sup port questions
to [e-mail]. Call AWID at 1 - 800 - 369 - 5533 from 8:00 a.m. to 7:00 p.m. Eastern Time.
7. FCC Compliance: This equipment has been tested and found to be in compliance with the limits for FCC part 15, Class A digital device. These limits
are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses a nd can radiate radio frequency energy and, if not installed and used in accordance with instruction manual, may cause
harmful interference with radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
The users are prohibited from making any change or modification to this product. Any modification to this product shall void the user’s
authority to opera te under FCC Part 15 Subpart A Section 15.21 regulations.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
8 Industry Canada Compliance: Operation is subject to the following two conditions: (1) This device may not cause harmful interference,
and (2) th is device must accept any interference, including interference that may cause undesired operation of the device.

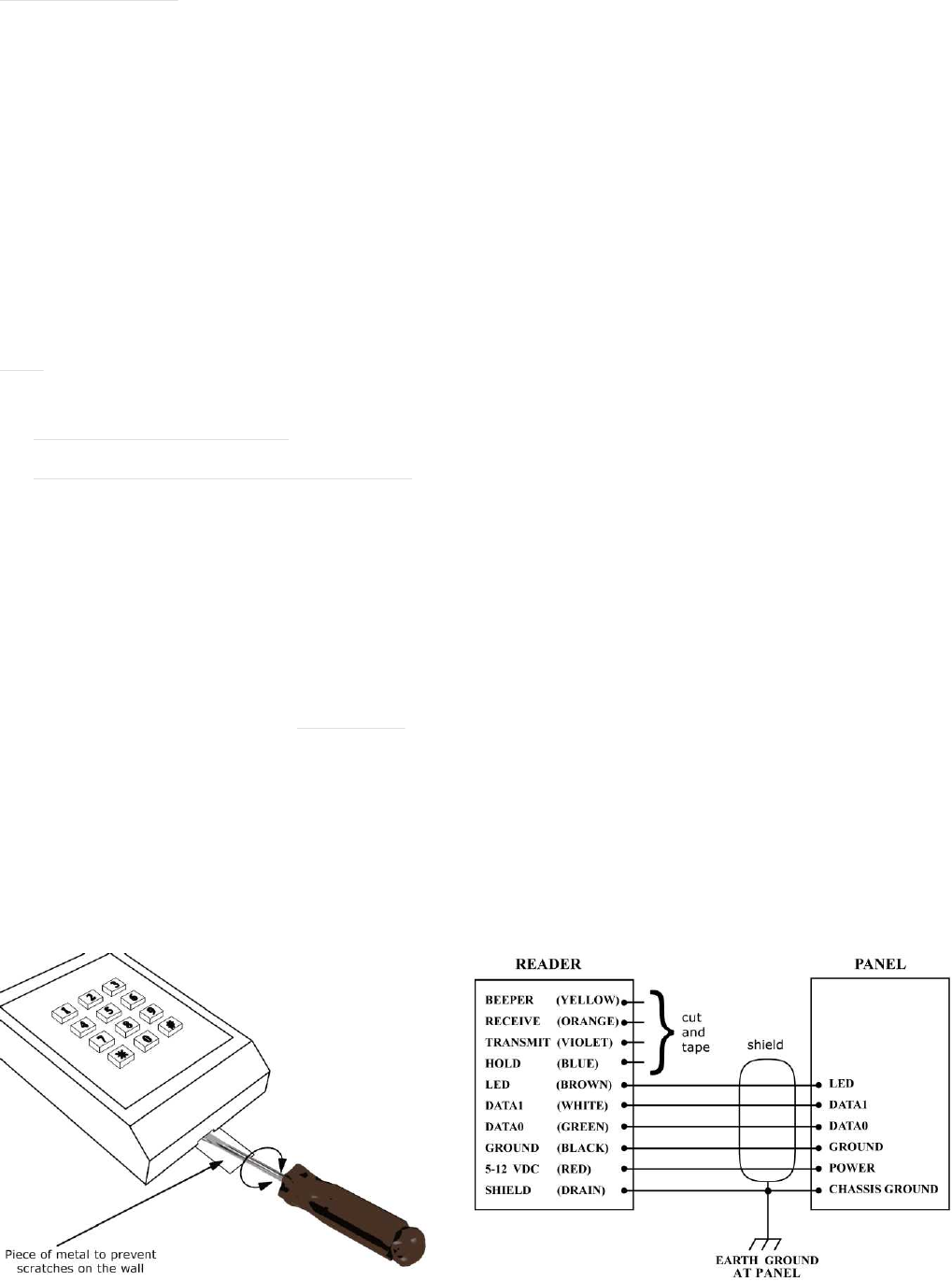

FIGURE 1: SNAPPING OPEN THE COVER FIGURE 2: WIRING DIAGRAM (WIEGAND)
