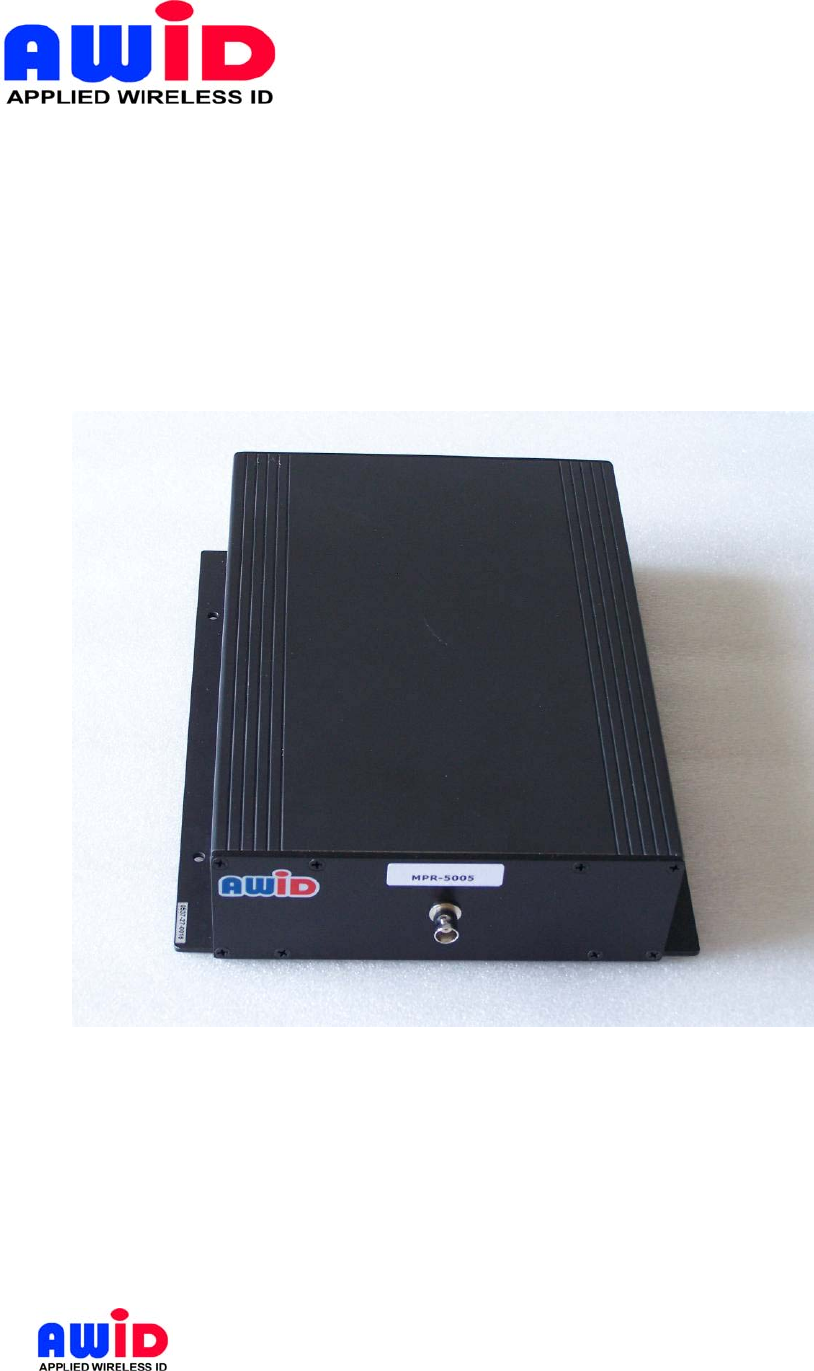

MPR-5005 Page 1 Doc# 041326 MPR-5005 125kHz Reader Installation & Operation Manual - 041326 AWID PROPRIETARY
MPR-5005 Page 2 Doc# 041326 COPYRIGHT ACKNOWLEDGEMENTS The contents of this document are the property of Applied Wireless Identifications Group, Inc. (AWID) and are copyrighted. RFTagger is HP proprietary user interface software. All rights reserved. Any reproduction, in whole or in part, is strictly prohibited.
MPR-5005 Page 3 Doc# 041326 C AUTION: Reader should be positioned so that personnel in the area for prolonged periods may safely remain at least 23 cm (9 in) in an uncontrolled environment from the reader’s surface. Observe FCC OET Bulletin 56 “Hazards of radio frequency and electromagnetic fields” and Bulletin 65 “Human exposure to radio frequency electromagnetic fields.
MPR-5005 Page 4 Doc# 041326 Table of Contents 1.0 INTRODUCTION ...................................................................................................5 1.1 2.0 SPECIFICATIONS ................................................................................................6 2.1 2.2 3.0 Theory of opperation..........................................................................................5 Antenna Specifications ........................................................................
MPR-5005 1.0 Page 5 Doc# 041326 INTRODUCTION AWID's MPR-5005 reader is a Radio Frequency IDentification (RFID) reader operating at 125kHz with Ethernet or RS-232 I/O interface. It has an internal power converter, allowing it to work with a wide range of supply inputs without affecting its performance. The MPR-5005 readers are delivered with the following components and accessories: Antenna: MPR-5007 (single antenna) or MPR-5011A/B (dual antenna) Power supply: Input = 110 VAC ~ 240VAC, 50~60Hz.
MPR-5005 2.0 Page 6 Doc# 041326 SPECIFICATIONS Part Number Power Supply Carrier Frequency Reference Clock Frequency Date Rate Memory Mfr part # MPR-5005 12.0 VDC, 450mA, regulated 125 kHz +/-3.125 kHz 16 MHz 7.81kbps(Receive), 1.95kbps(Transmit) 16 kByte FLASH for Firmware 512 bits EEPROM for Configuration 1 kByte RAM for Data RF Power = 1.
MPR-5005 Page 7 2.2 Doc# 041326 INPUT AND OUTPUT INTERFACES RS232 Connector Pin Assignment Pin 1 2 3 4 5 Function RS232 Tx RS232 Rx Ground o Please refer to document MPR-5005 RS232 Interface for command listings. TCP/IP Interface o Please refer to Document MPR-5005 TCP/IP Interface for command listings.
MPR-5005 3.0 Page 8 Doc# 041326 INSTALLATION & OPERATION GUIDELINES 3.1 o o o o o o PARTS LIST MPR-5005 125kHz RFID Reader MPR-5007 Single Antenna. 6-foot length BNC RF cable connected.
MPR-5005 Page 9 3.2 Doc# 041326 INSTALLATION 3.2.1 Site location The professional installer should select a suitable indoor location for set-up of the reader, antennas, and PC. An AC mains socket should be available to plug in the readers 12V supply. Antennas should not be mounted on metal, or mounted within close proximity of devices generating large amounts of electro-magnetic interference i.e. electric motors. 3.2.
MPR-5005 Page 10 3.3 Doc# 041326 OPERATION 1. Connect antenna(s) to reader 2. Connect reader to PC via crossover Ethernet cable 3. Set PC’s local IP address to 192.168.1.26, Mask to 255.255.255.0 (Default). Leave additional options blank. Reboot will be required for PC’s running Windows 2000 or earlier. To find Network Connections: Control Panel / Network Connections / LAN > Properties. Pop-up window, select TCP/IP > Properties > select Use the fallowing IP Address > Set IP Address. 4.
MPR-5005 Page 11 4 Doc# 041326 SOFTWARE The other options in the drop-down list in the Command box give the user full-functionality of the RFID Tag. The tag has different blocks, and pages of memory that can be read, and written to. These other options are as follows: o FIND TAGS o READ BLOCK o READ PAGE o WRITE PAGE o WRITE READ PAGE o READ BYTES o WRITE BYTES o WRITE READ BYTES With each command, the user can choose to execute the command once or in a continuous mode.
