1" Dia. S.S. Curtain Rod
Important Note:
Aqua Bath Recommends The Use Of A
Slide Bar As An Accessory In The Unit Rather
T
han The Use Of A Glide Bar / Glide Rail.
60" I.D.
65" O.D.
36"
76"
26"
80"
83"
84"
31¾" x 55½" x 31¾"
Grab Bar
36" I.D.
37" O.D.
2" Threshold2" Threshold
36"
I.D.
60" I.D.
Ribbed Bottom For Slip Resistance
30"
18"
For additional information, call the
Aqua Bath Customer Service
Department At 1-800-232-2284
To
p
View - Ri
g
ht Hand Shown
Care Series
ADA Compliant
Submittal Data

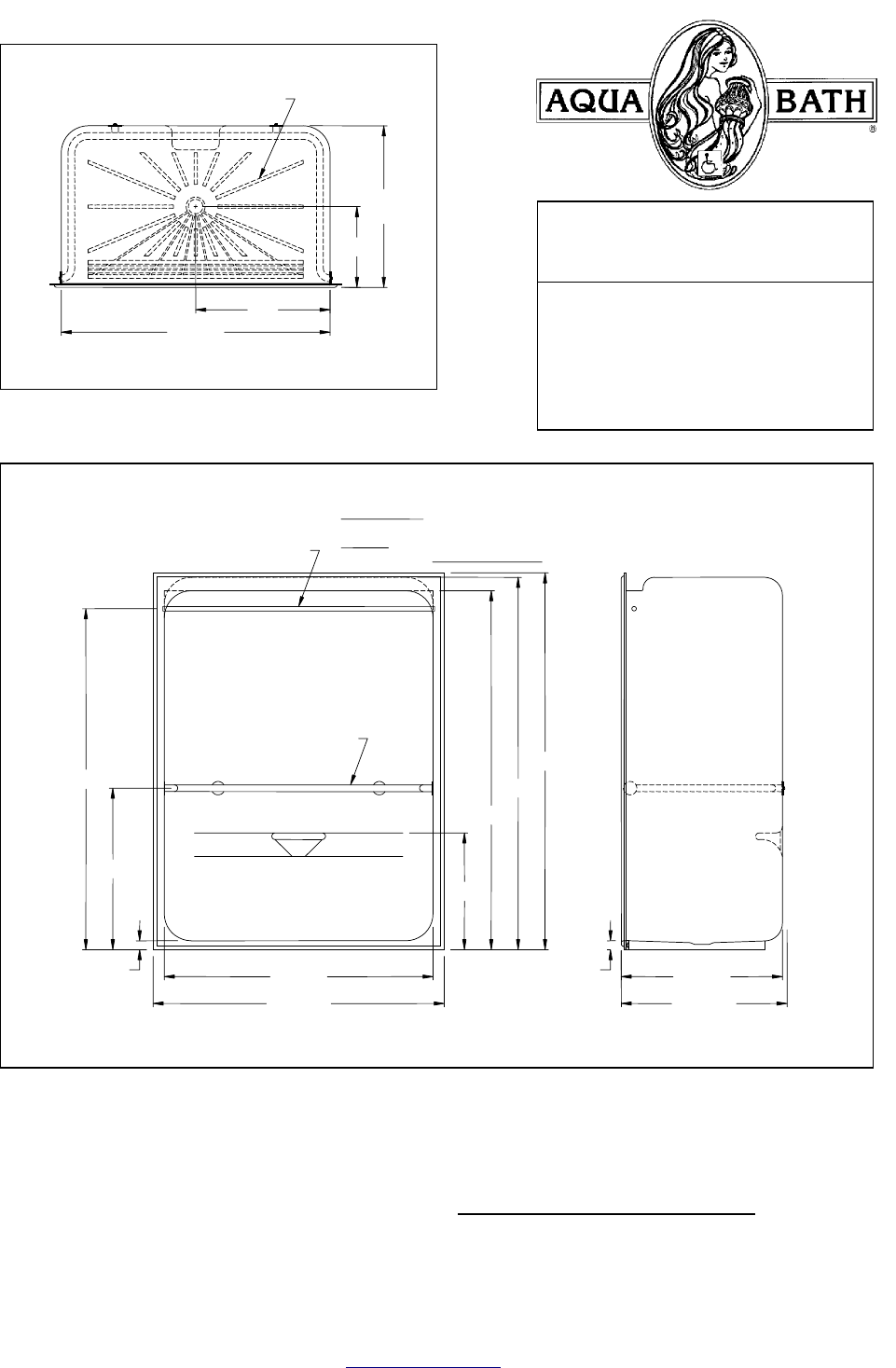

C6536BF 2"
F
ront View and Ri
g
ht Side View
Note: Manufacturing Tolerance Of (±1/4”) Due To The Nature Of The Materials Used
Installation: Detailed installation instructions are contained in this catalog, and provided with each unit shipped.
The field installation instructions must be followed as directed or may void manufacturers warranty
.
Reference installation instructions for C6536BF 2".
ADA states that the threshold must be flush with the finished floor. Because of the threshold height,
the unit must be installed in a pit to comply with ADA.
Page C-5
10/08
