Installation Instructions

Step 2
M15
15
● Parts Needed For ●
Frame Assemblies
The main frame pieces reinforce the
walls. These pieces will later be in-
stalled in the center and at the top
edge of the side walls and the rear
wall. Proceed as follows:

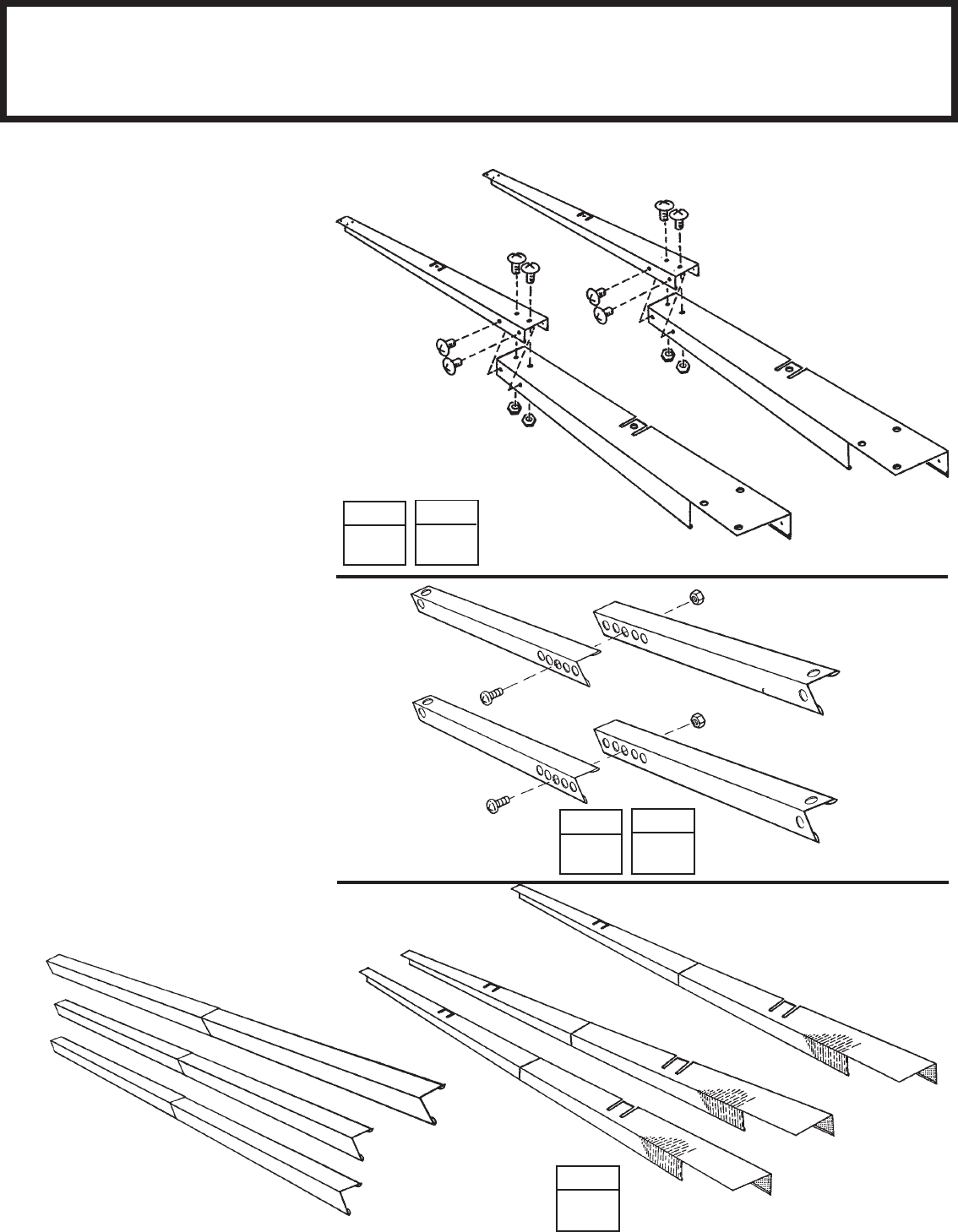

1 Overlap the right & left rear wall
channel pieces as shown in the fig-
ure and fasten the two pieces to-
gether with 4 bolts as shown.
2 Make two side wall channels by
overlapping the right & left side wall
channel pieces as shown. Fasten
each set together with 4 bolts.
3 Overlap the rear wall angle
pieces as shown in the figure and
fasten them together with one bolt in
the center hole (five holes will align) .
4 Make two side wall angles by
overlapping the side wall angle piec-
es as shown. Fasten each set togeth-
er with one bolt in the center hole.
5 Double check the length of each
and set these pieces aside for later
use.
●●
●●
● 5986 Rear Wall Angle (2)
●●
●●
● 8740 Side Wall Angle (4)
●●
●●
● 9004 Right Side Wall Channel (2)
● ●
● ●
● 9005 Left Side Wall Channel (2)
●●
●●
● 9006 Right Rear Wall Channel (1)
●●
●●
● 9007 Left Rear Wall Channel (1)
STEP
STEP
2
9006
9004
Side Wall Channels
102 1/8" 259,4 cm
Rear Wall Angle
118 1/8" 300,0 cm
5986
5986
8740
8740
Side Wall Angles
102 1/8" 259,4 cm
STEP
4
Rear Wall Channel
118 1/8" 300,0 cm
Side Wall Channels
102 1/8" 259,4 cm
Side Wall Angles
102 1/8" 259,4 cm
Rear Wall Angle
118 1/8" 300,0 cm
STEP
5
STEP
Rear Wall Channel
118 1/8" 300,0 cm
3
1
9007
9005
