Installation Instructions

16
The roof beams join the two gables
and support the roof panels. The main
roof beam is made up of four pieces
overlapped back to back at the cen-
ter. The left and right roof beam as-
semblies are made up of two pieces.
Hint: These pieces are force-fitted,
so you may have to press hard to join
them together.

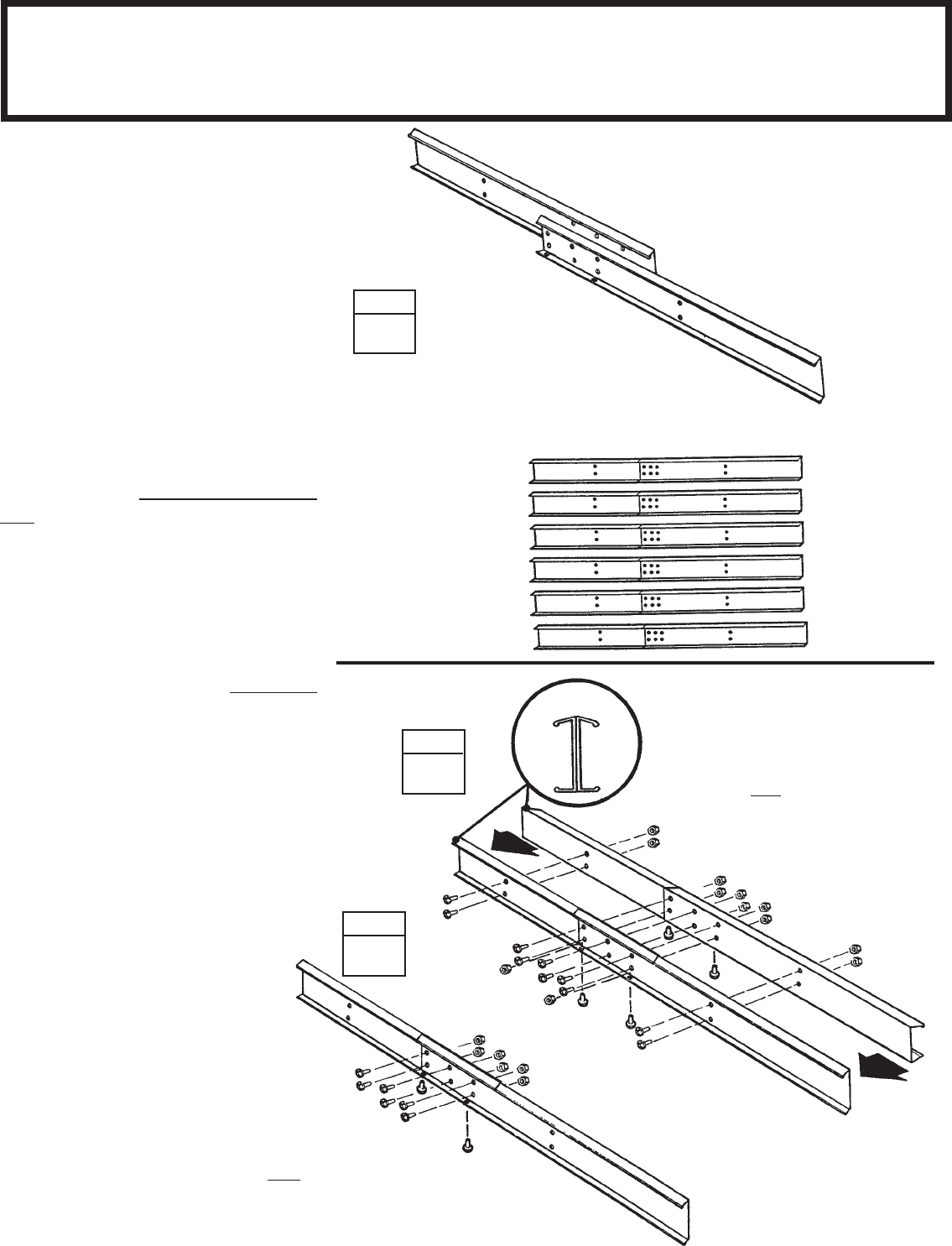

1 Place the end of one roof beam
inside a second roof beam so that the
six holes in each piece align. Make
six sets of roof beams by repeating
this procedure. Do not insert bolts
yet.
2 Take two of the pressed-together
roof beams and join them as shown
to form the main roof beam assembly.
Hold the assembly together and fas-
ten with 14 bolts. Build only one
Doubled Beam Assembly.
3 Fasten the other four pressed-
together roof beams with eight bolts
to make the left and right roof beam
assemblies.
4 Double check the length of each
and set these pieces aside for later
use.
Step 3
M16
● Parts Needed For ●
Roof Beam Assemblies
●●
●●
● 10517 Roof Beam (12)
10517
STEP
1
Roof Beam 104 1/8" 264,5 cm
Build one Doubled Main Roof
Beam Assembly for Peak in Roof
END
VIEW
104 1/8"
264,5 cm
10517
Build four Single Beam Assemblies
STEP
2
STEP
3
10517
10517
10517
10517
ASSEMBLED
104 1/8"
264,5 cm
