Installation Instructions

21
●●
●●
● Side Wall Channel Assemblies (2)
●●
●●
● Rear Wall Channel Assembly (1)
●●
●●
● 9003 Stud (6)
●●
●●
● 9365 Front Wall Channel (2)
● Parts Needed For ●
Mid Frames/Studs
Step 8
M21

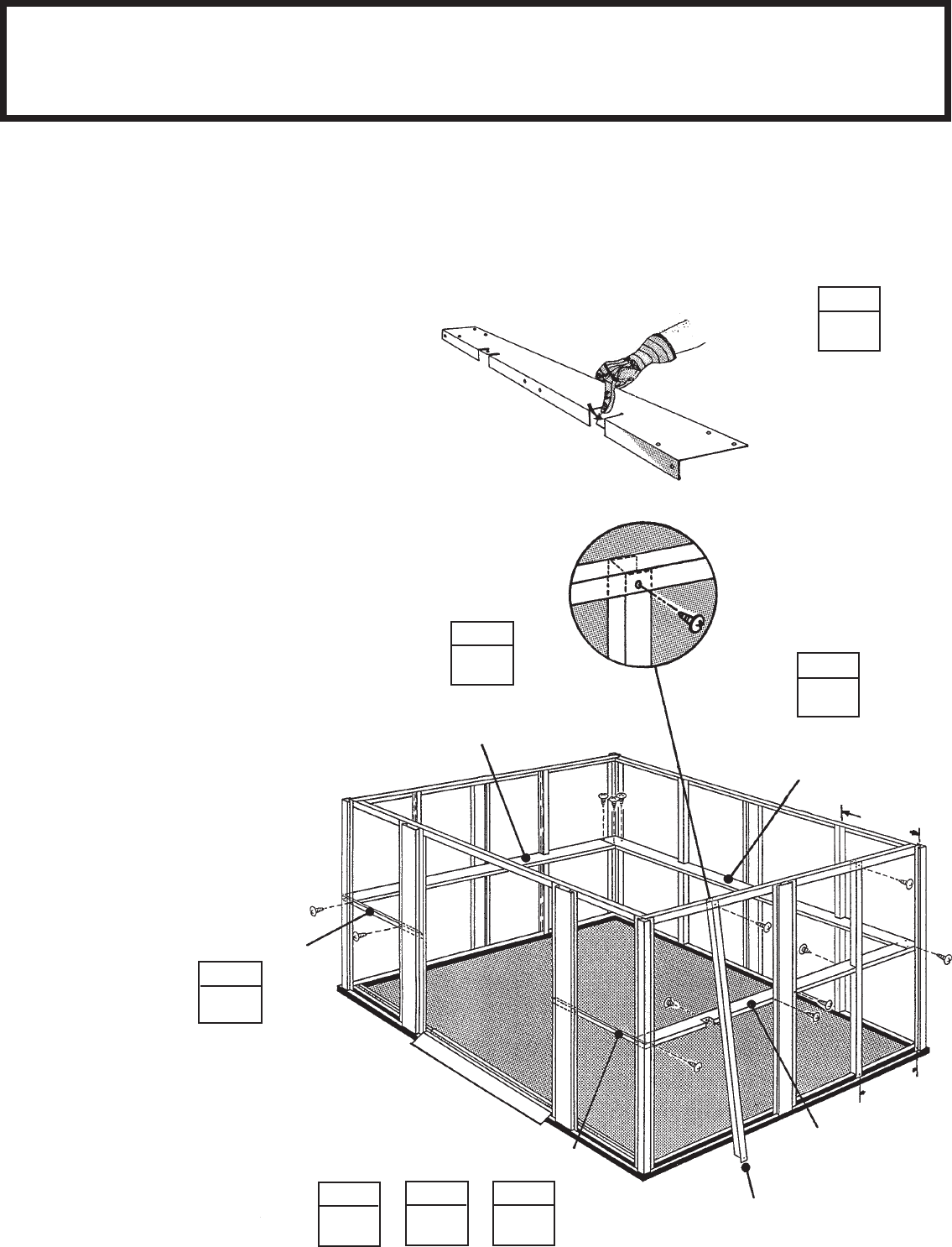

1 Wearing gloves, bend the 2 tabs
on each mid wall channel down.
2 Fasten side wall channel assem-
blies to the sides of building at the
splice and corner posts using screws.
3 Fasten the rear wall channel as-
sembly across the rear of building
overlapping side channels and fas-
ten rear corners using screws.
4 Following dimensions, place a
stud between corner and splice post.
Position stud inside top angle and
fasten with a screw.
5 Fasten middle of stud to channel
with a screw from inside building.
STEP
1
Side Wall Channel
Assembly
BEND 2 TABS
DOWNWARD
Side Wall Channel
Assembly
Rear Wall Channel
Assembly
STEP
STEP
9365
STEP
STEP
2
6
5
STEP
4
STEP
7
28 1/4"
71,8 cm
24 1/4"
61,6 cm
3
6 Rest bottom tab of stud outside
floor frame, but do not fasten at this
time. Repeat procedure for the re-
maining studs around the building.
7 Fasten front wall channel to the
door jamb and corner post using
screws.
9365
9003
DO NOT FASTEN TAB
AT THIS TIME
