Installation Instructions

● Parts Needed For ●
Gables/Roof Beams
Step 11
M24
●●
●●
● Left Gable Assemblies (2)
●●
●●
● Right Gable Assemblies (2)
●●
●●
● Single Roof Beam (4)
●●
●●
● 6636 Gable Brace (2)
24

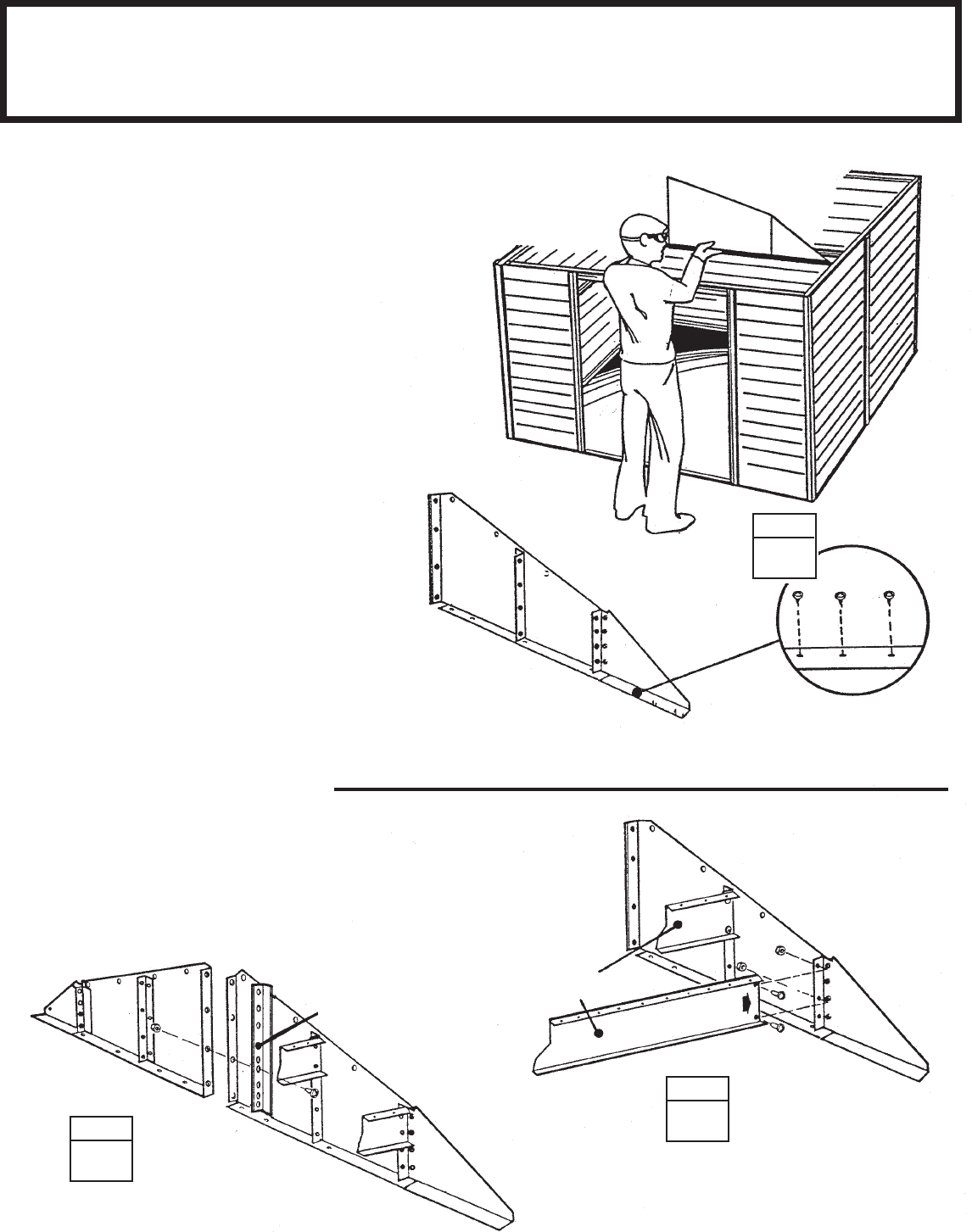

1 Lift and fasten a right and left
gable, under angle at corner, to the
door track and rear wall angle with
screws.
Hint: On the front gable, leave out 2
screws closest to center gable leg.
On the rear gable, use a bolt and nut
at the overlapping rear wall angle.
2 Fasten the single roof beam,
small holes on top, to the outer gable
leg and mid gable brace as shown
using bolts and nuts.
Repeat Step 1 for the opposite side of
building.
3 Join the left and right gables
together with a gable brace using a
bolt in the second hole from the
bottom only . Do this step for both
front and rear gables.
Repeat Step 2 for the opposite side of
building.
STEP
3
6636 Gable Brace
STEP
1
Single Roof Beam Assembly
STEP
2
Gable
