Installation Instructions

30
●●
●●
● 67730 Foam Board (2)
●●
●●
● 10509 Right and Left Doors (2)
●●
●●
● 10501 Horizontal Door Brace (4)
●●
●●
● 8109 Vertical Door Brace (2)
● Parts Needed For ●
Door Assembly

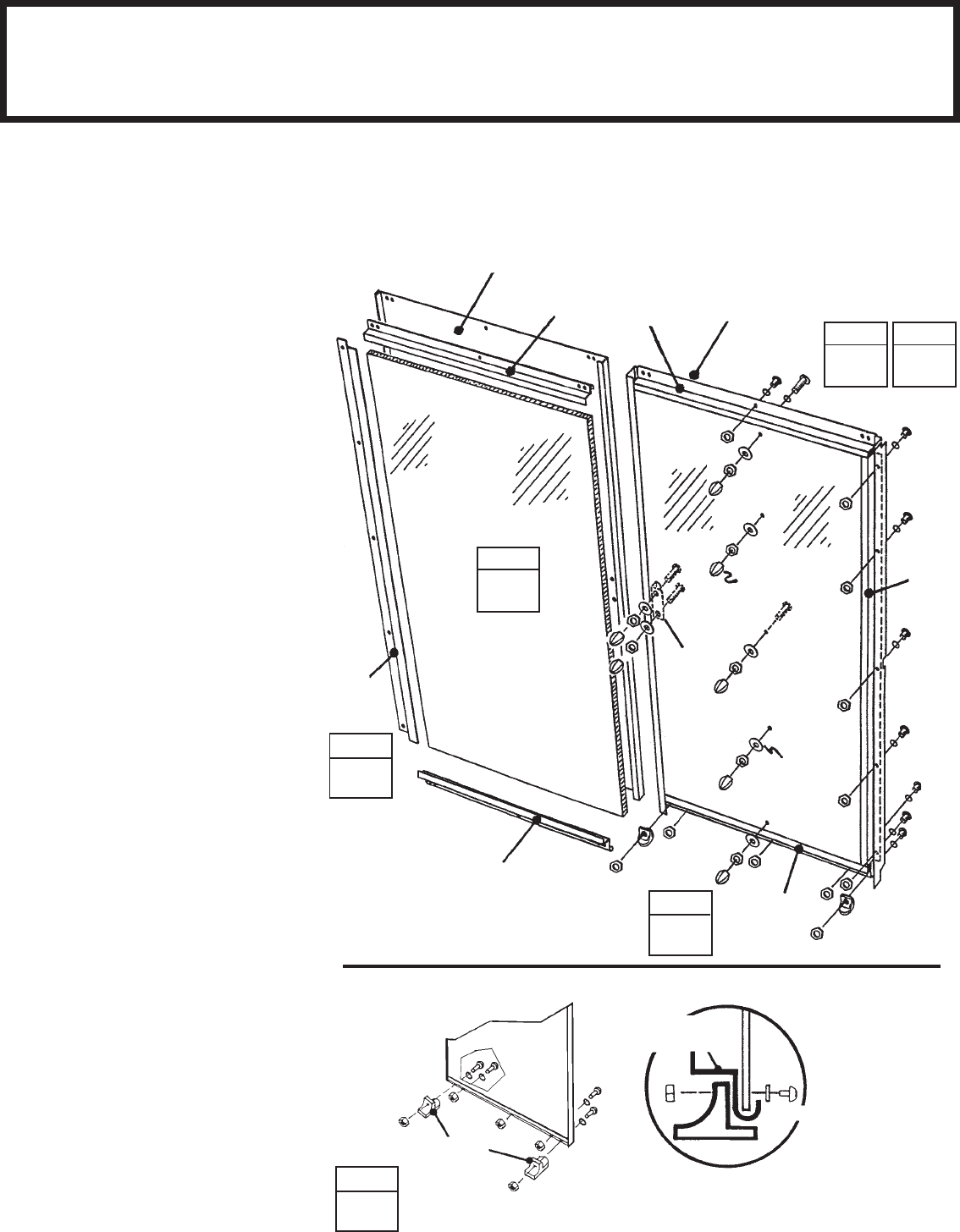

Step 17
M30
The steps on this page tell how to
assemble the left door. You will per-
form exactly the same procedures for
the right door. Each bolt requires a
small washer on the outside of the
door. Proceed as follows:
1 Place foam board under the lip of
door.
2 Hold the vertical door brace
against the long edge of the foam
board inside the door and fasten to
door using 5 bolts and nuts.
3 Put a horizontal door brace onto
the top edge and bottom edge, cover-
ing edge of foam board, and fasten
with 1 bolt in the center.
4 Attach the lower door guides and
bolts as shown.
5 Push 7 holes through foam board
where shown, using an awl or nail.
6 Fasten center of door and install
handle using 7/8" (22 mm) bolts, door
washers, hex nuts and acorn nuts.
7 Repeat steps 1 through 6 for the
right door.
10509 Left Door
10509 Right Door
STEP
1
STEP
STEP
3
67730
10501
66045
8109
66382
2
66382
END VIEW
SHOWING:
Horizontal
Door Brace
Door
Washer
Guide
STEP
4
8109
66382
10501
10501
Door Washer
7/8" (22 mm) Bolt
67730
10501
Acorn Nut
3/8"
(10 mm)
Bolt
STEP
5
STEP
6
