1.3 Front and Back Panel Descriptions
Refer to the following sections for detailed descriptions of the front
and back panels of the IntraCore 3500 series switches.
1.3.1 IC3524 Models
From left to right, the front panel contains the following: Power and
port LEDs; 24 10/100 ports; 2 optional module slots; and a console
port.
The switch is field upgradeable for use with 100BaseFX, 1000-
BaseSX, 1000BaseX GBIC or 10/100/1000BaseT modules.
The back panel (not shown) has only the AC socket.
1.3.2 IC3548-2GT
From the left to the right, the 3548 switch’s front panel contains the
power LED and 2 exchanging LEDs; a push button display mode
converter; 48 10/100 ports, each with its own indicator light; and 2
Gigabit ports (capable of using either the GBIC expansion ports [for
fiber and copper GBICs] OR the 10/100/1000BaseT Gigabit
Ethernet ports), each with its own indicator light.

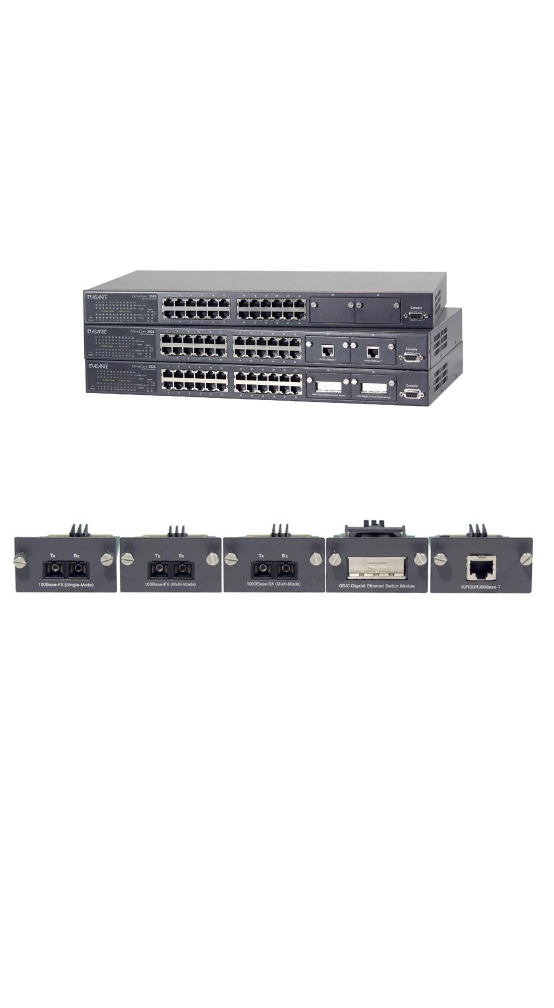

Optional modules for the IC 3524
