- Asant Technologies, Inc. user guide Gigabit Ethernet Switches 3500

Getting Started Guide

Note: There is no uplink port on this switch. All 10/100 ports on this

switch are auto-sensing MDI/MDI-X. This advanced feature means

that the 10/100 ports will automatically determine whether the de-

vice at the other end of the link is a hub, switch or workstation, and

adjust its signals accordingly.

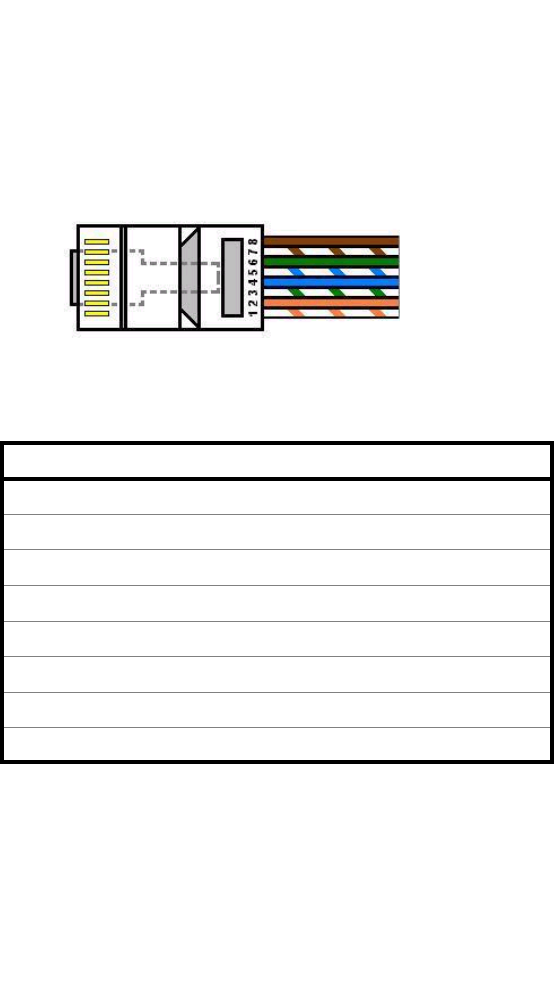

Although 10BaseT requires only pins 1, 2, 3 and 6, Asanté strongly

recommends cables with all 8 wires connected as follows:

1000BaseTX requires that all four pairs (8 wires) be connected cor-

rectly. Table 2-1 shows the correct pairing of all eight wires.

WH/BR

WH/BL

WH/GR

WH/OR

Pin Number Pair Number & Wire Colors

1 2 White/Orange

2 2 Orange/White

3 3 White/ Green

4 1 Blue/White

5 1 White/Blue

6 3 Green/White

7 4 White/Brown

8 4 Brown/White

Table 2-1
