Quick Installation Guide
Quick Installation GuideQuick Installation Guide
Quick Installation Guide
EAI2001S Enterprise Access Point ENGLISH

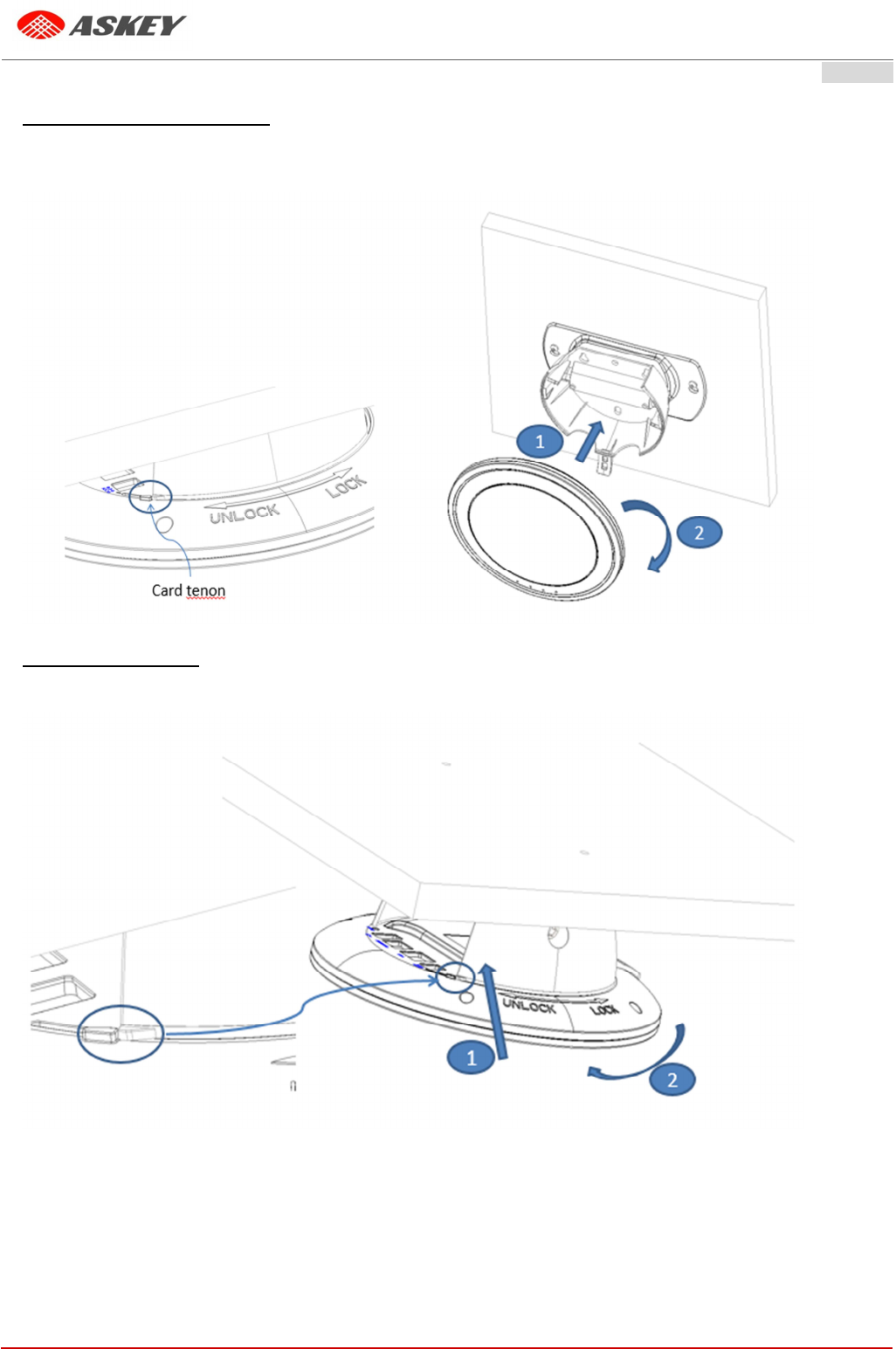

Device assembly installation:
Step1:
(1) Put the device into the Bracket component.
(2) Device clockwise rotation of the fixing tenon.
Device disassemble:
Step1: Press Bracket as shown in the figure to remove the latch
Step2: Device counter-clockwise to remove.
2. Connect the EAI2001S to your network device.
Connect one end of the Ethernet cable to the Uplink port of EAI2001S and the other end of the cable to a
switch, a router, or a hub. EAI2001S is then connected to your existing wired LAN network.
There are two ways to supply power over to EAI2001S.
