Datasheet

Bitte „x“ durch die geeignete Option ersetzen
Please replace „x“ with appropriate option
Bestellcode / Ordercode
68
h accessories
with solderpins
6ZLWFKHV86%
,(((
3RZHULQOHWV
3RZHURXWOHWV
',1 ',1
+DUG0HWULF
0LQL',1
3LQKHDGHU
)HPDOHKHDGHU
6RFNHWV-XPSHU
7HUPLQDO%ORFNV
0HPRU\&DUG
FRQQHFWRUV
))&)3& 0LFUR
0LQLDWXUH
with solderpins
0XOWL슳H[
',1
'6XE
'6XEFRYHU
&HQWURQLFV
0RGXODU

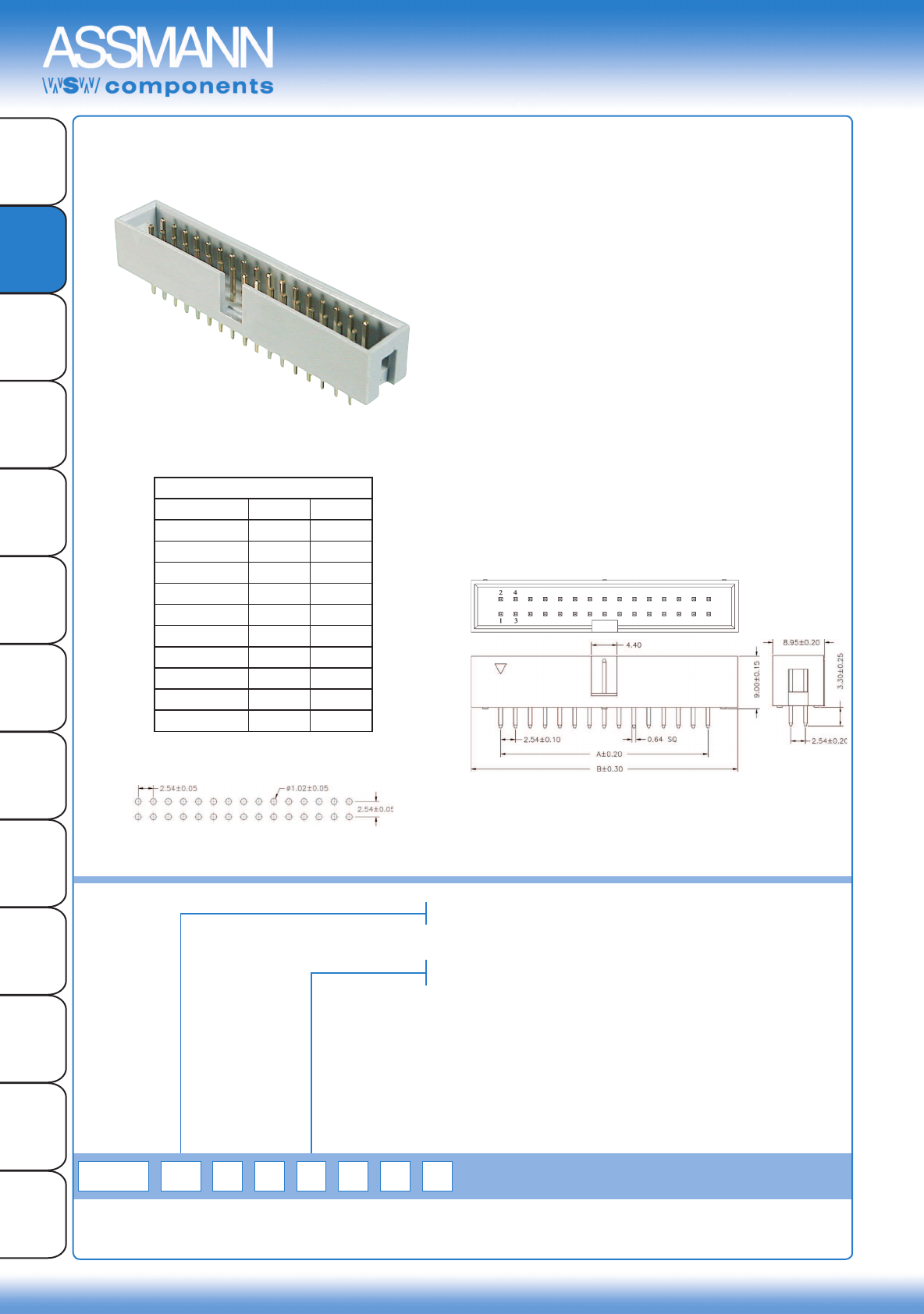

Steckerleisten, 10 - 64 polig, gerade,Raster 2,54mm x 2,54mm
Header, 10 - 64 contacts, straight, pitch 2.54mm x 2.54mm
Polzahl
10 / 14 / 16 / 20 /
26 / 34 / 40 / 50 / 60 / 64
Beschichtung
5 - vollverzinnt
2 - Gold flash (selectiv)
No. of contacts
10 / 14 / 16 / 20 /
26 / 34 / 40 / 50 / 60 / 64
Plating
5 - Tinned
2 - Gold flash (selective)
x
0
0
-
AWHW
G
2 T
-
xx
Isolierkörpermaterial
PBT, UL94V-0
Kontaktmaterial
Messing
Kontaktoberfläche
Ni, Au / Sn
Kontaktwiderstand
20mΩ max
Isolationswiderstand
1000MΩ min
Strombelastbarkeit
3A
Betriebstemperatur
-40°C - +105°C
Betriebsspannung
250V AC
Prüfspannung
1000V AC
Verpackung
Blisterverpackung
Insulator material
PBT, UL94V-0
Contact material
Brass
Plating
Ni, Au / Sn
Contact resistance
20mΩ max
Insulation resistance
1000mΩ min
Current rating
3A
Operating temperature
-40°C to +105°C
Operating voltage
250V AC
Test voltage
1000V AC
Packing
Tray packing
Dimensions
No. of contacts A B
10 10.16 20.32
14 15.24 25.40
16 17.78 27.94
20 22.86 33.02
26 30.48 40.64
34 40.64 50.80
40 48.26 58.42
50 60.96 71.12
60 73.66 83.82
64 78.74 88.90
