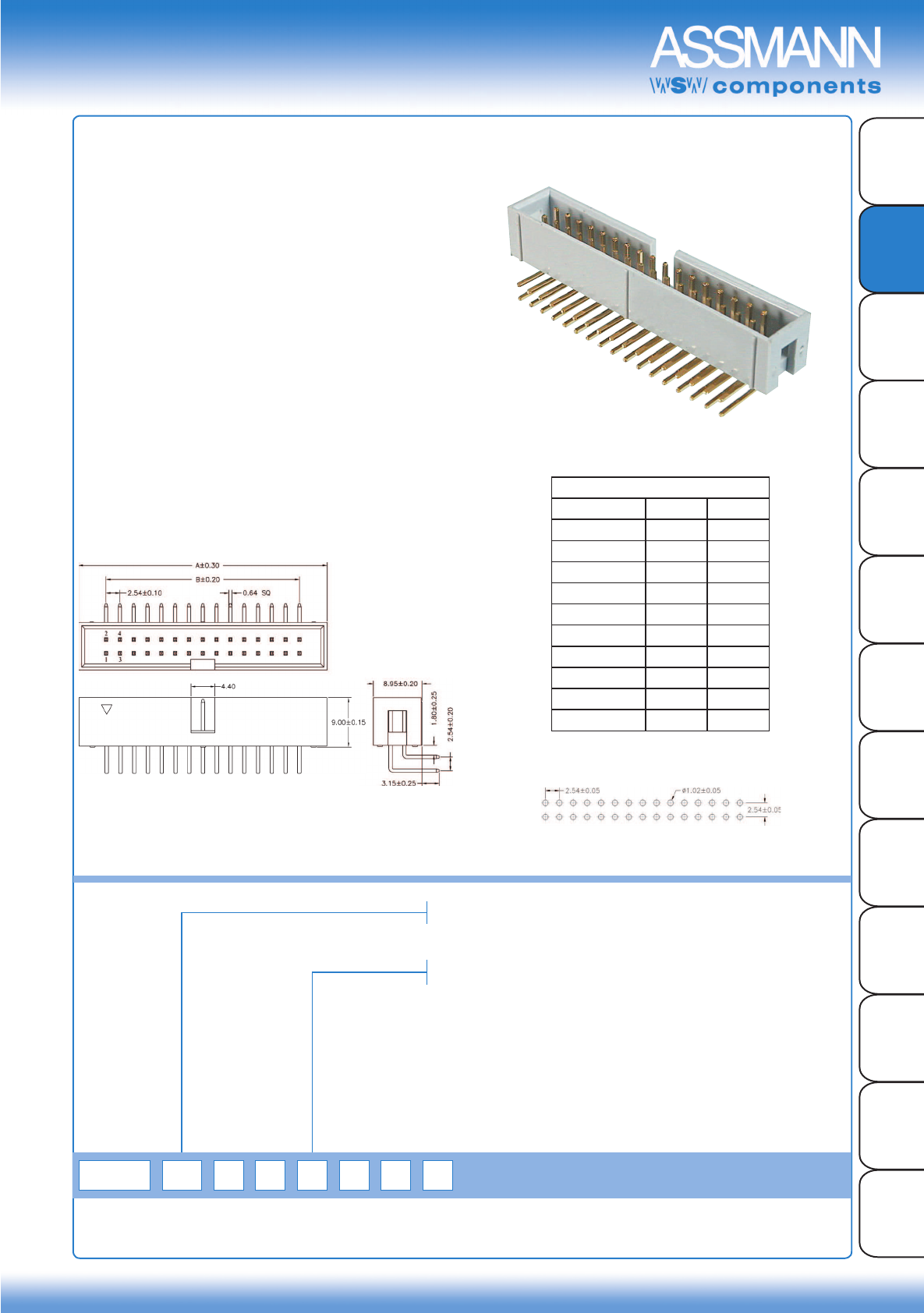

Steckerleisten, 10 - 64 polig, abgewinkelt, Raster 2,54mm x 2,54mm
Header, 10 - 64 contacts, right-angled, pitch 2.54mm x 2.54mm
Isolierkörpermaterial
PBT, UL94V-0
Kontaktmaterial
Messing
Kontaktoberfläche
Ni, Au / Sn
Kontaktwiderstand
20mΩ max
Isolationswiderstand
1000MΩ min
Strombelastbarkeit
3A
Betriebstemperatur
-40°C - +105°C
Betriebsspannung
250V AC
Prüfspannung
1000V AC
Verpackung
Blisterverpackung
Insulator material
PBT, UL94V-0
Contact material
Brass
Plating
Ni, Au / Sn
Contact resistance
20mΩ max
Insulation resistance
1000MΩ min
Current rating
3A
Operating temperature
-40°C to +105°C
Operating voltage
250V AC
Test voltage
1000V AC
Packing
Tray packing
Dimensions
No. of contacts A B
10 20.32 10.16
14 25.40 15.24
16 27.94 17.78
20 33.02 22.86
26 40.64 30.48
34 50.80 40.64
40 58.42 48.26
50 71.12 60.96
60 83.82 73.66
64 88.90 78.74
