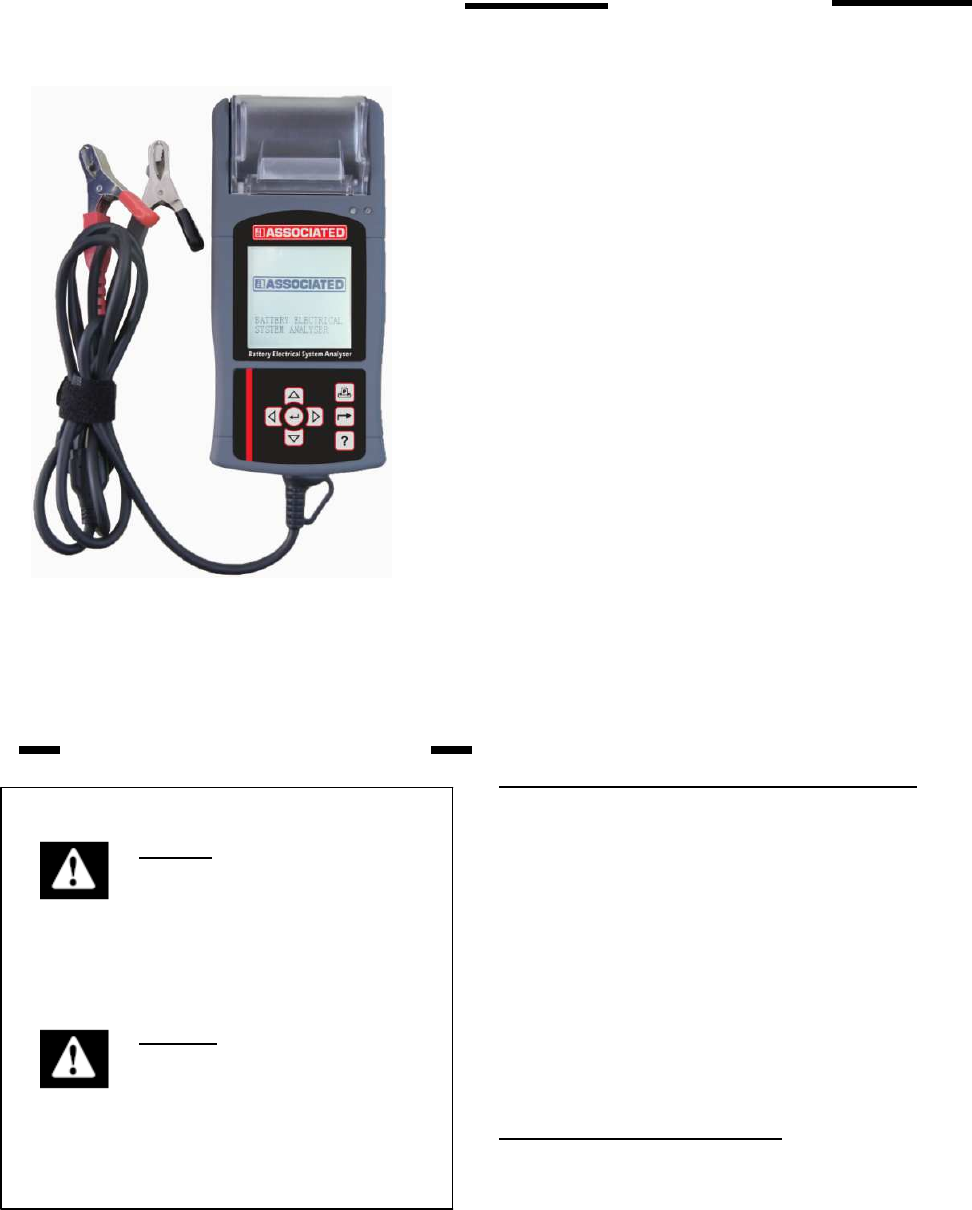

Battery Electrical System Analyser

(12-1015)

For testing all 12V automotive starting batteries

rated in CCA, SAE, DIN, JIS#, IEC, EN and CA.

Also for testing vehicle Electric

al System.

Quick Start Guide

Caution: Never lay tools on the

battery top. You may short the

terminals together causing harm to

yourself, the tools or the battery.

Always follow Battery Council

International safety

recommendations.

Warning: Battery terminals contain

lead compounds which is

hazardous to our body if consumed.

Please wash your hand

immediately after handling.

LIMITED WARRANTY

This Battery Electrical System Analyser [12-1015] is

warranted to be free from defects in material and

workmanship for a period of 12 months from the date

of purchase and is subjected to the following terms

and conditions:

1. Within the warranty period, the manufacturer will

repair or replace, at their options, any defective

parts and return to the owner in good working

order.

2. Any repaired or replaced parts will be warranted

for the balance of the original warranty or 90 days

from the date of repair, whichever is longer.

3. Cost of delivery charges incurred for the repair of

the product (to and from the manufacturer) will be

borne by the owner.

4. The warranty covers only the defects arises as a

result of normal use and does not cover those

arise from:

• Unauthorized modification and repair

• Improper operation or misuse

• Accident or neglect such as dropping onto

hard surfaces.

• Contact with water, rain or extreme humidity

or heat.

• Physical damages such as cables broken,

surface cracks, etc.

Performing Battery Test while it is still in the car:

Vehicle that was running has to have its engine OFF

first and then switch ON the headlights for 30 seconds

to remove the surface charge. After the headlights

had switched OFF, let the battery rest for at least 1

minute to recover before testing commences.

The car engine and all other accessory loads must be

OFF during test in order to have an accurate result.

When attaching the analyser clips, make sure that the

battery posts were not oxidized or badly corroded.

Clean them first before clamping to it. Do not clamp

onto the steel bolts directly which may give inaccurate

and inconsistent results.

Testing on stand-alone batteries:

Clean the battery posts with a wire brush prior testing.

For side- post batteries, install stud adaptors. Do not

use steel bolts for better results.

Summary of content (11 pages)

PAGE 1
Battery Electrical System Analyser (12-1015) LIMITED WARRANTY This Battery Electrical System Analyser [12-1015] is warranted to be free from defects in material and workmanship for a period of 12 months from the date of purchase and is subjected to the following terms and conditions: 1. Within the warranty period, the manufacturer will repair or replace, at their options, any defective parts and return to the owner in good working order. 2.
PAGE 2
1. 2. Connect the tester clamps to the battery posts, Red to the positive (+) terminal and Black to the negative (-) terminal. Rock each clamp back and forth for better contact. BATTERY TEST 4. It will run through a self-test and when completed it displays the Main Menu as shown below: Select Menu If the surface charge is too great for the analyser to handle, it will prompt you with the instructions as shown below: Battery surface charge is present! Turn the ignition key to ON position.
PAGE 3
7. Pressing again will proceed to Battery Test as shown below. 11. Once the rating is confirmed, press key will start the testing process and will display the result in less than 5 sec. Battery: Good Select Rating CCA SAE DIN JIS IEC EN CA Unknown 8. 9. Select the rating system: CCA, SAE, DIN, JIS#, IEC, EN, CA; according to the battery rating. If you cannot find its rating then select Unknown.
PAGE 4
12. Press key will return to the Main Menu as shown below: Select Test 16. Now press analysing. key again and it will starts Analysing ... Battery Test Grounding Test Starter Test Alternator Test Please wait! Then press [Enter]. Grounding Test 13. Pressing key once will scroll down to the “Grounding Test” Select Test Battery Test Grounding Test Starter Test Alternator Test Then press [Enter] 14. Press as follows. 17.
PAGE 5
19. Now you need to press key to proceed and the display will show as follows 22. If you did not follow the right procedures during the testing, it will display the results as follows: Results: Not detected Analysing ... Wrong procedures. Please wait! Try again and follow the step by step instructions given. 20. If the measured resistance reading is within limits, then it will display as follows: 23.
PAGE 6
26. Press key to continue and the display will show as follows: Starter Test Battery: 12.45V Crank engine now until it starts. Then press [Enter]. 27. Switch the ignition key to ON and start cranking the engine until it starts. Immediately after that press key and the results will show as follows: Result: OK Min. Volts: 10.56V Volt Drop: Normal Press [Exit] to main menu. 29.
PAGE 7
33. Press will show: key to continue and the display No Load Test Start the car engine and keep it running. Then press [Enter] to begin. 34. Starts the engine then press key again and the screen will prompt you as shown below: Results: Good At 3,000 rpm, No load Test: Average Charging Volts: 14.2V Press [Enter] to continue to Loading Test. 37. If either minimum or maximum charging volts are not within the voltage range limits then it will display one of the screen as below (Fig. 1 & Fig.
PAGE 8
Testing with load at 2,000 RPM: This test is to check the alternator’s behavior during loading. 41. If either minimum or maximum charging volts are not within the voltage range limits then it will display one of the screen as below (Fig. 3 & Fig. 4) and it will prompt you to check the alternator system for the fault. 38. Continue from the previous test, proceed to the next step by pressing key will enter to the display as follows. Results: Low charge At 2,000 rpm, Loading Test: >13.5V: Max. 13.
PAGE 9
HELP KEY 43. Selecting this key will help you familiarize with the analyser by explaining the various functions and the results. To access to this function, just press the key during the wakeup and the display: PRINTING THE LAST TEST RESULTS Printing all the Last Test Results can only be done while in this View Last Test mode. This is to ensure that the results printed will be the final ones as every test redone will be updated in its memory.
PAGE 10
SELECT DISPLAY LANGUAGE PRINTER SETUP 1. The printer will only work when connected directly to a 12Volt car battery because it needs higher amps than an USB port from the PC can provide. The red LED indicates the printer is ON and the green LED will blink when the printer has run out of paper. If there is paper present and it still blinks then the printer has overheating problem. The green LED will also stay lighted up when there is no paper if BST 12 is connected to the PC through the USB port. 1.
PAGE 11
Then confirm it by pressing save. Once it had been saved, the display will change to the language selected. Press key to exit and get back to the Main menu screen to continue your test. PC LINK 2. This analyser is also designed to link with PC for data storage and printout through normal printer. To do so, the PC has to install the driver and the software provided in order to operate. 3.
