SECTION 1
GETTING ACQUAINTED
3

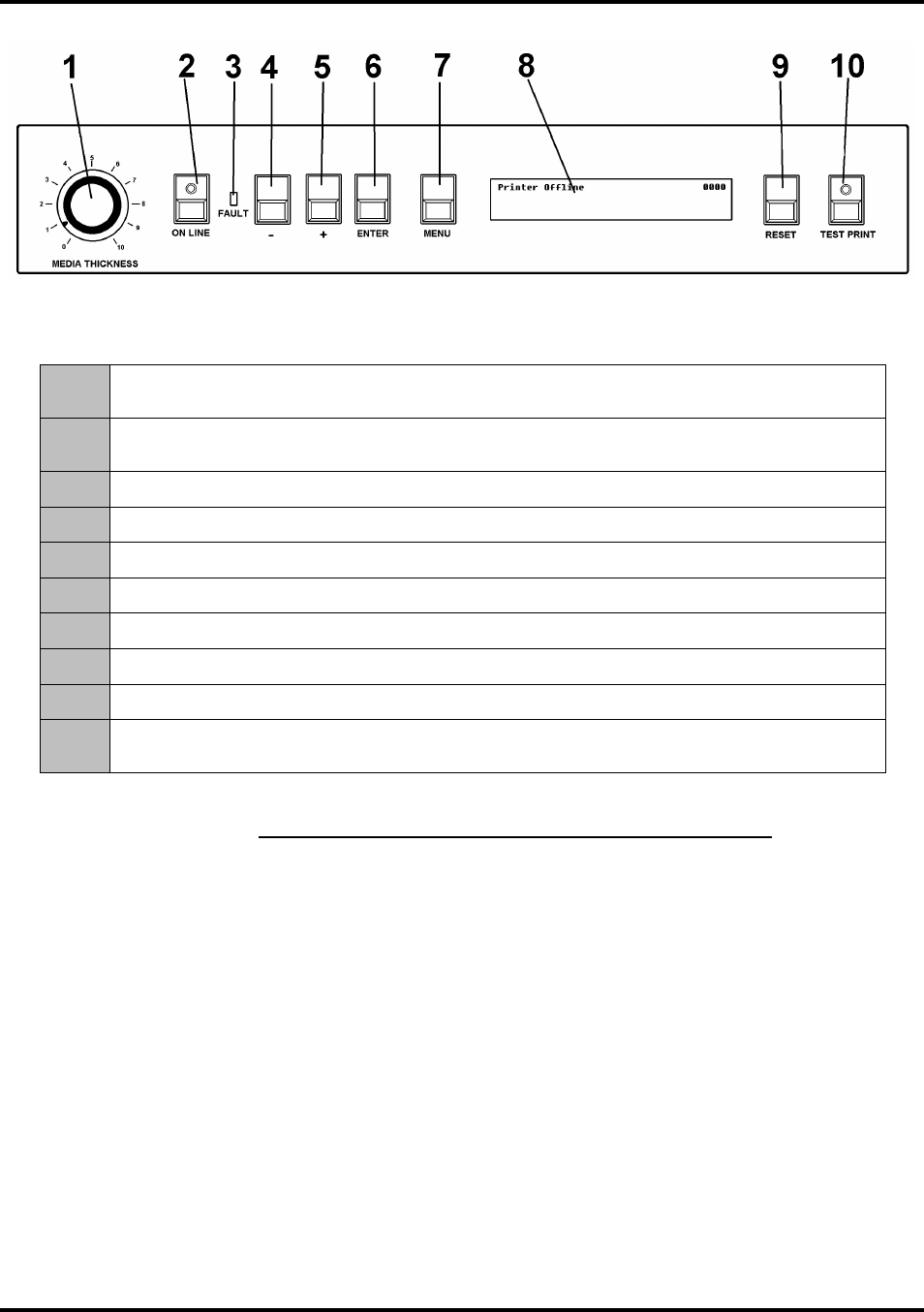

Control Panel
1.
MEDIA THICKNESS CONTROL – Adjusts height of Printheads to compensate for
different media thicknesses.
2.
ON LINE key – Indicator lights when data is sent to Printer and printing is ready to
begin. Also turns Printer offline to access Menu mode.
3.
FAULT Indicator – Lights when there is a problem with printing process.
4.
- key – In Menu mode, use this key to scroll to previous selection.
5.
+ key – In Menu mode, use this key to scroll to next selection.
6.
ENTER key – Starts and stops printing.
7.
MENU key – Puts Printer in Menu mode to access several operator functions.
8.
OPERATOR DISPLAY – Shows Printer’s status, including menus and error messages.
9.
RESET key – Resets Printer to its “wait” state.
10.
TEST PRINT key – Puts Printer in Test mode and prints a sample copy to check
Printer’s output.
NOTE: A complete description of functions and operation of Printer Keys
is found in Section 3 – Operating the ASTROJET 2650P/2800P.
