Disassembly procedure
2 - 15

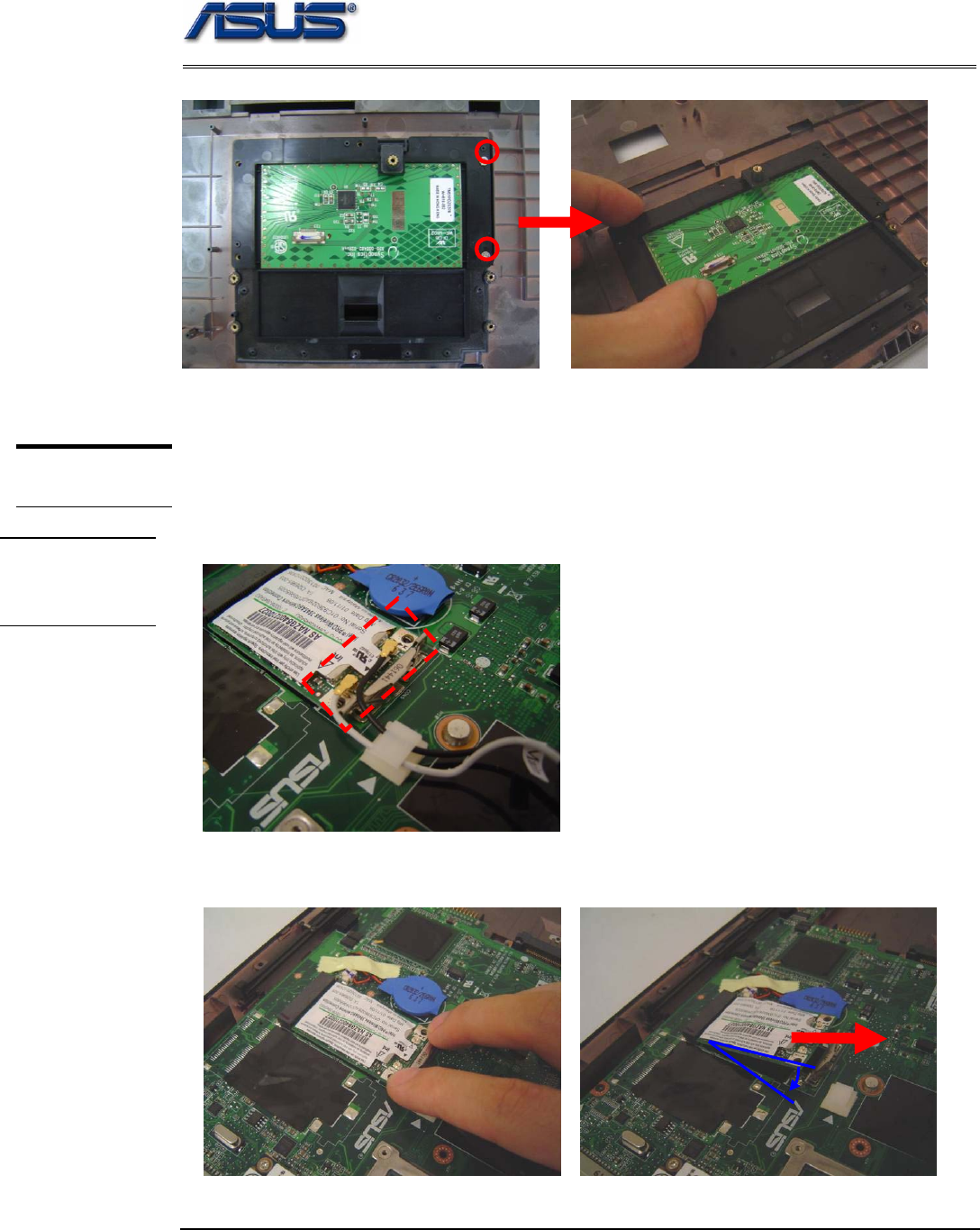

17. Remove 2 screws (M2*3) here and then take away the touchpad module from the top case.
WLAN Module
The illustrations below show how to remove the WLAN module from the notebook.
Remove WLAN module
1. Remove 2 Antenna cables from Wireless LAN Module
2. Pull two latches and pop the module up to a 45° angles, and then pulling out the module in that
angle.
WLAN
MODULE
WLAN
MODULE
REMOVAL
45
o
