2 - 16
3 G Card and Robson Card
The disassembly method of 3 G card and Robson card goes the same with that of the WLAN module.
Motherboard
The illustrations below show how to disassemble and remove the Motherboard.

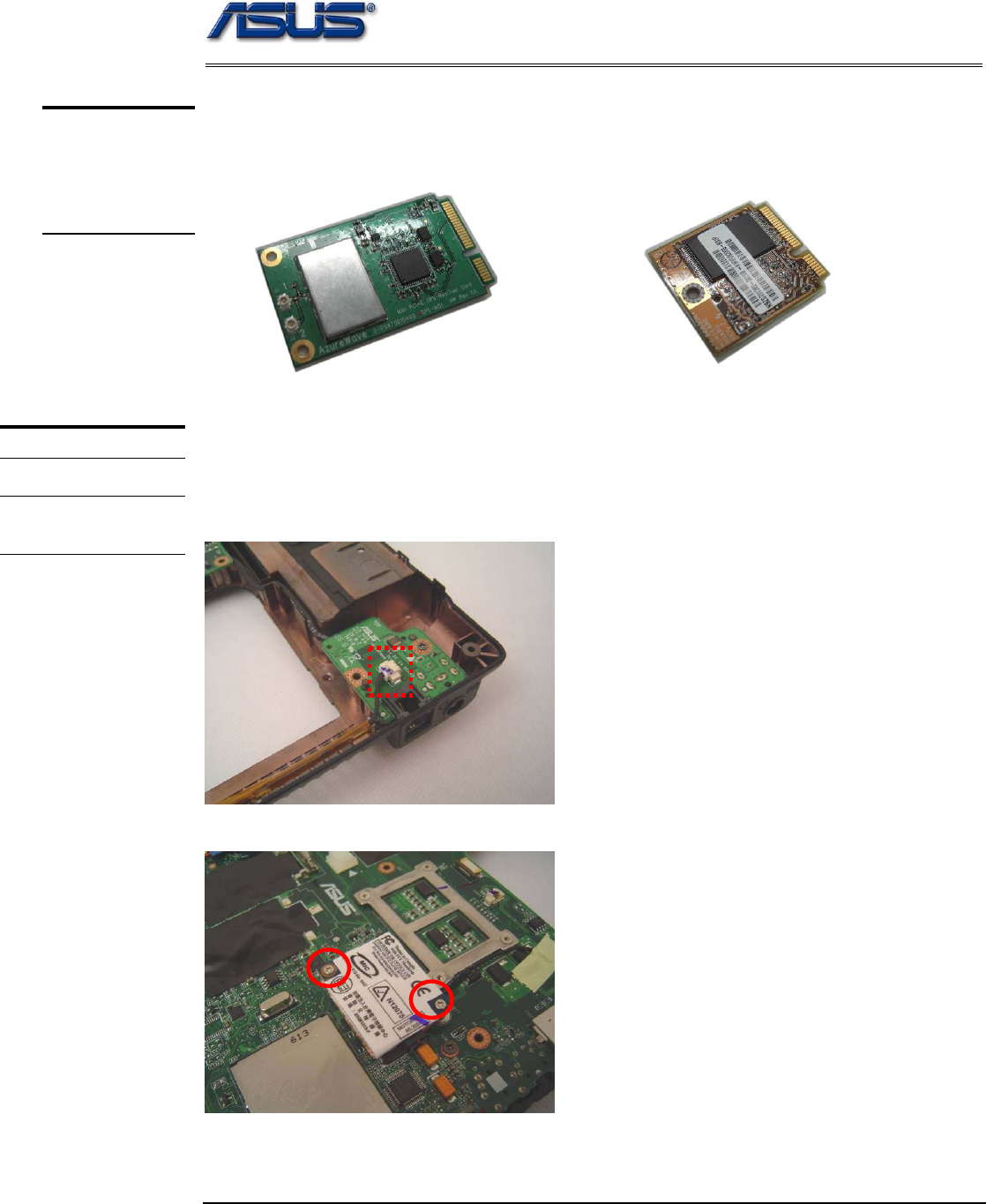

Removing Motherboard
1. Disconnect the modem cable to motherboard.
2. Remove 2 screws here and then take away the modem module.
MOTHERBOARD
MOTHERBOARD
REMOVAL
3 G CARD
&
ROBSON
CARD
Robson card3 G card
