Disassembly procedure
2 - 5
Memory Module

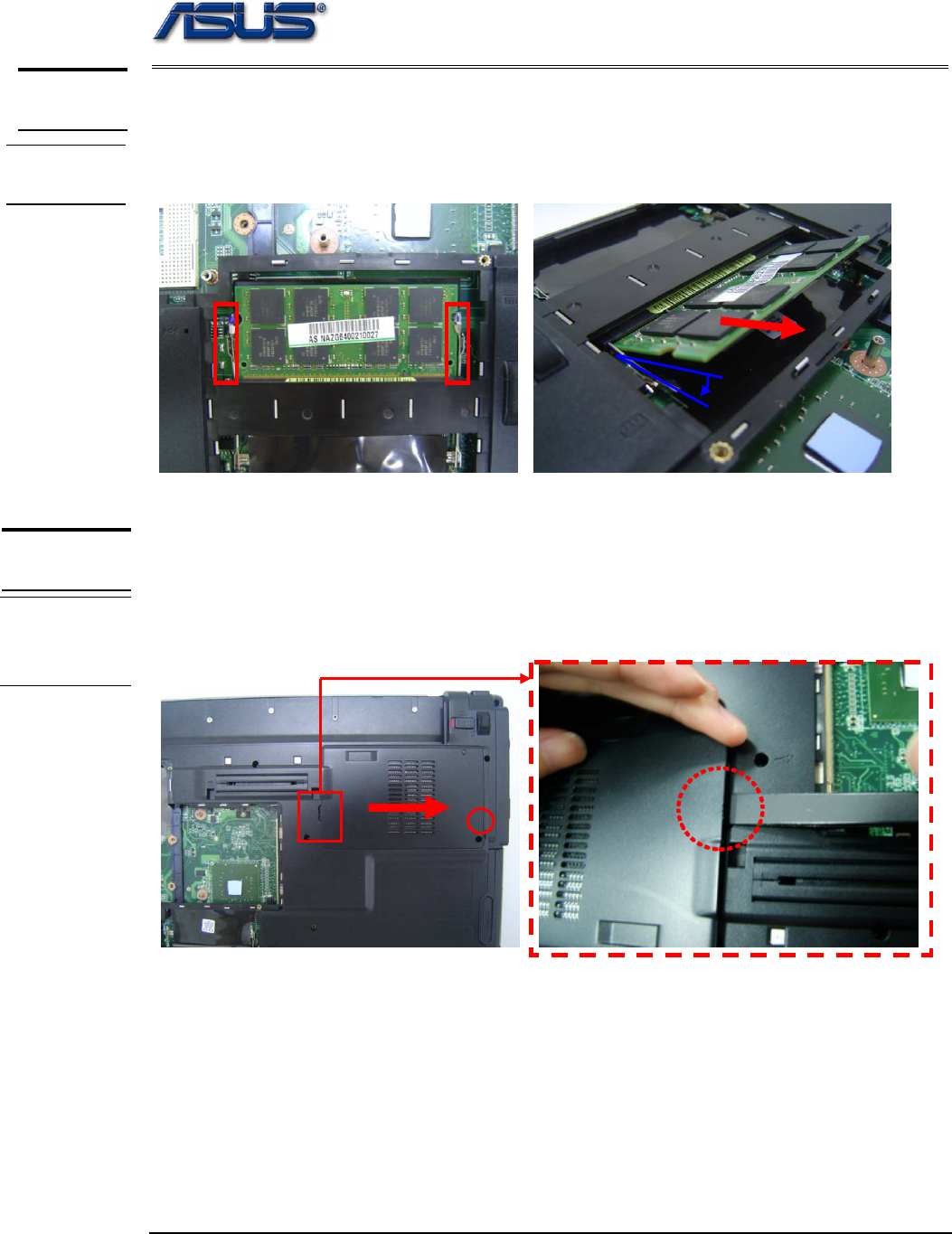

The illustration shows how to remove the memory module form the notebook.
Removing Memory module
1. Pull two latches and pop the module up to a 45° angles, and then pulling out the module in that
angle.
HDD Module
The illustrations below show how to remove the HDD module from the notebook.
Removing HDD Module
1. Remove 1 screw (M2*5) here, open HDD door by the tweezers and then take away the HDD
door.
MEMORY
MODULE
MEMORY
REMOVAL
45
o
HDD
MODULE
HDD
MODULE
REMOVAL
