User Guide

Disassembly procedure
2 - 7

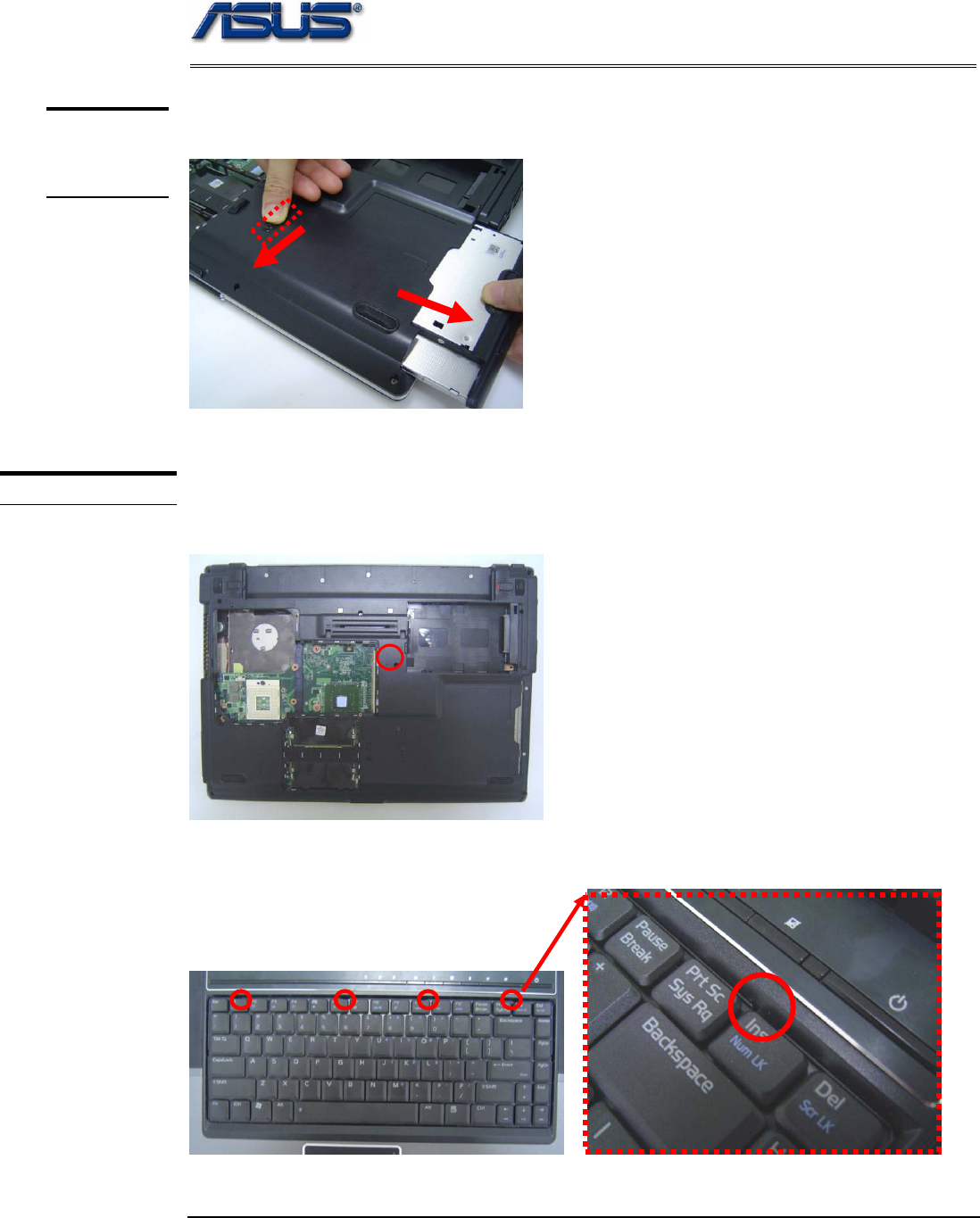

Optical Drive Module
1. Unlock and hold the latch, and remove the ODD module.
Keyboard Module
The illustration of below shows how to remove the keyboard
Removing Keyboard
1. Remove 1 screw (M2*5) here, and then turn over the notebook.
2. Push the 4 latches in (F1, F6, F10, Ins) with a pair of tweezers or a single-slotted
screwdriver and lift the keyboard plate up.
KEYBOARD
OPTICAL
DRIVE
REMOVAL
