Kickstand
Routing
channel for
line cord
and adjunct
cord
Line jack
Adjunct jack
Handset
jack

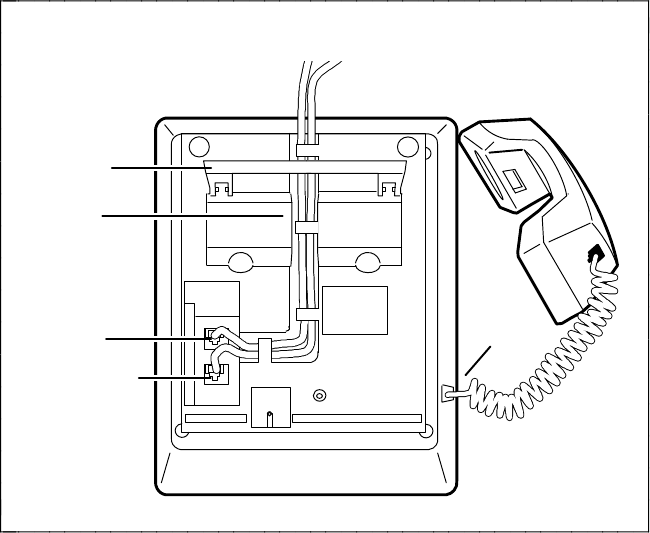

FIGURE 5 Line, Adjunct, and Handset Cord Routing for Desktop Installation
7 Turn the voice terminal right side up, with the front facing you.
8 Decide whether you want the kickstand up, lifted from the desktop
stand, or whether you want the kickstand down, level with the
desktop stand. Check which of these kickstand adjustments allows
you the best viewing angle of the display.
9 Snap the free end of the handset cord into the handset and place the
handset in the cradle.
10 Snap the free end of the line cord into the modular jack. Lift the
handset and listen for the dial tone.
ATTACHING ADJUNCT EQUIPMENT
If you are installing a speakerphone (models AT&T S101A, S201A, or
QUORUM CS201A), a headset adapter (model AT&T 500A or the
507A adapter), or other adjunct that may be offered, follow these steps
to connect the adjunct equipment to your voice terminal.
70
