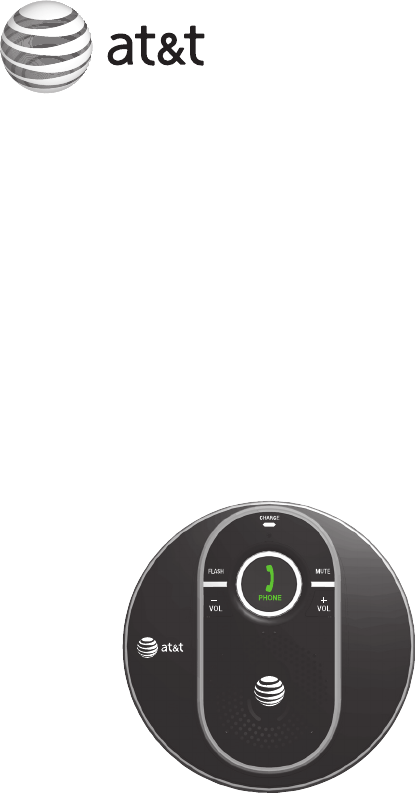

User’s manual TL80133 Cordless Accessory Speakerphone for use with many AT&T business phones and AT&T CL, CRL, CLP, TL and VTech DS, SN, IS series home cordless phones
Congratulations on your purchase of this AT&T product. Be more mobile by using the AT&T TL80133 DECT 6.0 cordless accessory speakerphone for everyday conversations. Plus, the speakerphone fits easily in your hand or a pocket, making it easy to stay connected as you go about your day. Enjoy a sound that can keep up with your calls. Increase participation by allowing both ends to speak–and to be heard–at the same time, for conversations that are more true to life.
Model number: TL80133 Type: Cordless Accessory Speakerphone Serial number: Purchase date: Place of purchase: Both the model and serial numbers of your AT&T product can be found on the bottom of the speakerphone charger. Save your sales receipt and original packaging in case it is necessary to return your telephone for warranty service. © 2014 Advanced American Telephones. All Rights Reserved.
Parts checklist Check to make sure the package includes the following items. Save your sales receipt and original packaging in the event warranty service is necessary. User’s manual TL80133 Cordless Accessory Speakerphone for use with many AT&T business phones and AT&T CL, CRL, CLP, TL and VTech DS, SN, IS series home cordless phones Cordless speakerphone Speakerphone charger THIS SIDE UP Battery Pack : 2.4V Ni-MH WARNING :DO NOT BURN OR PUNCTURE BATTERIES.
User’s manual TL80133 Cordless accessory speakerphone for use with many AT&T business phones and AT&T CL, CRL, CLP, TL and VTech DS, SN, IS series home cordless phones Table of contents Getting started Installation....................................... 1 Charger installation..................... 2 Battery installation and charging......................................... 3 Adding and registering a speakerphone............................. 5 Register a speakerphone to a telephone base.............
Maintenance.................................. 34 FCC, ACTA and IC regulations.................................. 35 California Energy Commission battery charging testing instructions.................................... 40 Limited warranty.......................... 41 Technical specifications........... 45 DECT 6.0 digital technology............................... 45 Operating range.................... 45 Simulated full-duplex speakerphone......................... 45 Extended range and clarity................
Getting started Installation You must install and charge the battery before using the speakerphone. STOP! See pages 3-4 for easy instructions. For customer service or product information, visit our website at www.telephones.att.com or call 1 (800) 222-3111. In Canada, dial 1 (866) 288-4268.
Getting started Charger installation Install the speakerphone charger as shown below. Plug the large end of the charger power adapter into a power outlet not controlled by a wall switch. Route the power adapter cord through this slot. Plug the small end of the charger power adapter into the power adapter jack on the back of the charger. IMPORTANT INFORMATION • ������������������������������������������������������������������� Use only the power adapter provided with this product. To obtain a www.
Getting started Battery installation and charging THIS SIDE UP Battery Pack : 2.4V Ni-MH WARNING :DO NOT BURN OR PUNCTURE BATTERIES. THIS SIDE UP Battery Pack : 2.4V Ni-MH WARNING :DO NOT BURN OR PUNCTURE BATTERIES. Install the battery as shown below. 1. Plug the battery connector securely into the socket inside the speakerphone battery compartment, matching the color-coded label. 2. Insert the supplied battery with the label THIS SIDE UP facing up as indicated. THIS SIDE UP Battery Pack : 2.
Getting started Battery installation and charging IMPORTANT INFORMATION • ������������������������������������������������������������������ Use only the supplied rechargeable battery or replacement battery (model BT185742/BT285742). To order, visit our website at www.telephones.att.com or call 1 (800) 222-3111. In Canada, dial 1 (866) 288-4268.
Getting started Adding and registering a speakerphone Before using a new TL80133 speakerphone, you must register it with an AT&T business phone, an AT&T CL, CRL, CLP, or TL series home cordless phone, or a VTech DS, SN, or IS series home cordless phone. All these compatible telephone systems are purchased separately. Visit www.telephones.att.com for a complete list of compatible phones.
Getting started Adding and registering a speakerphone For AT&T models without /HANDSET LOCATOR button on the telephone base: 1. Press MENU on the telephone base in idle mode. 2. Scroll to Settings, and then press SELECT. 3. Scroll to Registration, and then press SELECT. • The base displays Registering... Please wait. 4. Follow Steps 3 and 4 under For AT&T models with /HANDSET LOCATOR button on the telephone base section. For AT&T Synapse® business phone system: 1.
Getting started Adding and registering a speakerphone For VTech models: 1. Press and hold the /FIND HANDSET button on the telephone base for about four seconds. • The IN USE light turns on. 2. Release the button. 3. Follow Steps 3 and 4 under For AT&T models with /HANDSET LOCATOR button on the telephone base section. NOTES: • You can register a maximum of two TL80133 speakerphones to a cordless telephone. The telephone base recognizes and counts a speakerphone the same as a headset.
Getting started Replacing a speakerphone You may need to deregister your speakerphones if: You want to register your speakerphone to a different telephone base. -ORYou already have two registered speakerphones on the telephone base and need to replace one of them. -ORYou wish to reassign the designated speakerphone number. To do so, you must deregister all the speakerphones and then individually register each speakerphone again.
Getting started Quick reference guide - speakerphone CHARGE light FLASH Microphone Press to answer an incoming call when you receive a call waiting alert during a call (page 18). PHONE Press to answer or end a call (page 13). Press to switch between calls on the same line (page 18). Press to join a call in progress (page 19). VOL–/VOL+ MUTE Press to adjust the speakerphone ringer volume while in idle mode (page 15). Press to mute the microphone during a call (page 17).
Getting started Quick reference guide - speakerphone Speakerphone lights CHARGE light Red • On when the speakerphone is charging. • Flashes once every 10 seconds to indicate the battery is low when the speakerphone is out of the charger. Green • On when the speakerphone is in the charger and the battery is full. Red and green • Flashes quickly when the speakerphone is in registration mode. • Flashes during paging from the telephone base. • Flashes twice when there is an error.
Getting started Quick reference guide - speakerphone Speakerphone alert tones One short beep every 30 seconds • The microphone is muted. Two beeps • Error alert tone. • The volume has reached its highest or lowest setting. Two low beeps • Call waiting alert tone. Two rapid beeps every 60 seconds • The battery is low and the speakerphone is in use. Three rapid beeps • The speakerphone is successfully reset. • The speakerphone is deregistered.
Getting started Quick reference guide - speakerphone Speakerphone voice prompts "Not registered" • Plays upon every key press when the speakerphone is not registered. "Out of range" • Plays upon every key press when the speakerphone is out of range. "Low battery" • Plays every five minutes when the battery is low. "Mute on" • Plays when you press MUTE while on a call. "Mute off" • Plays when you press MUTE again while on a call after the microphone is off.
Operation Speakerphone operation Make a call The speakerphone is not designed to make outgoing calls. Calling has to be done via a telephone base or a handset, and then joined by the speakerphone. 1. Use the dialing keys of your phone for making calls. 2. Press PHONE on the speakerphone at any time to join the call. 3. After you join the call on the speakerphone, you can hang up the phone and continue the call on the speakerphone. Answer a call Press PHONE on the speakerphone.
Operation Speakerphone operation Auto-off The auto-off feature enables you to end a call by placing the speakerphone in the charger. By default this feature is disabled. To enable auto-off: • When the speakerphone is not in use, enter the following code on the speakerphone by pressing the keys in this order: PHONE, VOL–, VOL–, PHONE, VOL+, VOL–, VOL+, PHONE.
Operation Speakerphone operation Speakerphone ringer To change the speakerphone ringer volume: • Press VOL+ or VOL– when the speakerphone is not in use to sample each volume level. To turn off the speakerphone ringer volume: • Press VOL– until you hear two beeps when the speakerphone is not in use. NOTES: • If the ringer volume is turned off, the speakerphone is silenced for all calls.
Operation Speakerphone operation Speakerphone paging On the telephone base the speakerphone is registered to, press /HANDSET LOCATOR or /FIND HANDSET to page the speakerphone and all system devices. The speakerphone plays the paging tone regardless of its ringer volume setting and the CHARGE light flashes red and green. To mute the paging tone: • Press MUTE or VOL– on the speakerphone. To end paging: • Press /HANDSET LOCATOR or /FIND HANDSET on the telephone base. -OR• Press PHONE on the speakerphone.
Operation Options while on calls Volume control To adjust the listening volume: • While on a call, press VOL+ or VOL– on the speakerphone to adjust the listening volume. NOTES: • Listening volume settings are independent for each speakerphone. • When the listening volume reaches the minimum or maximum setting, you hear two beeps. Mute The mute function turns off the speakerphone microphone. You can hear the caller, but the caller cannot hear you.
Operation Options while on calls Flash/call waiting If you subscribe to call waiting service offered by your telephone service provider, you will hear a call waiting alert tone if someone calls you while you are in the middle of a call. If the incoming call is from the same line of the current call: • Press FLASH on the speakerphone to put your current call on hold and answer the new call. • Press FLASH again at any time to switch back and forth between calls.
Operation Options while on calls Join a call in progress The speakerphone can join an external call in progress with telephone base, handsets and headsets on the same telephone line, creating a conference call. The number of devices that can join may be limited by your telephone system. See your telephone user's manual for more information. To join a call: • Press PHONE on the speakerphone. The conference begins. To end a call on the speakerphone: • Press PHONE on the speakerphone.
Operation Intercom Intercom calls and transfers Use the intercom feature for conversations between a system handset and a speakerphone, or a telephone base and a speakerphone. Only one intercom call can be established at a time. Follow the instructions in your telephone user's manual for intercom calls and call transfers using intercom. The speakerphone is listed as HDST/SPK or HEADSET in the intercom menu.
Operation Intercom Answer an incoming call during an intercom call 1. During an intercom call, press PHONE on the speakerphone to end the intercom session. 2. The ringer of the incoming call rings. Press PHONE again to answer the incoming call. NOTES: • When there is more than one simultaneous incoming call from different lines (landline, cell line or PC line), pressing PHONE will answer the first ringing line. • You can answer a call regardless of whether the speakerphone is in the charger.
Appendix Troubleshooting If you have difficulty with your speakerphone, please try the suggestions below. For customer service, visit our website at www.telephones.att.com or call 1 (800) 222–3111. In Canada, dial 1 (866) 288-4268. My speakerphone doesn't work at all. • Make sure the battery connector is securely plugged into the cordless speakerphone. • Charge the battery in the cordless speakerphone for at least 11 hours.
Appendix Troubleshooting I cannot get a dial tone. • Try all the suggestions above. • Make sure you have registered the speakerphone to your telephone base. • Move the cordless speakerphone closer to the telephone base. You might have moved out of range. • The telephone line cord of the telephone base might be defective. Try installing a new telephone line cord.
Appendix Troubleshooting I cannot dial out. • The speakerphone is not designed to make outgoing calls. Calling has to be done via a telephone base or a handset, and then joined by the speakerphone (page 13). The other party cannot hear my voice during a call. • Make sure the call is not muted (page 17). My cordless speakerphone isn't performing normally. • Make sure you have registered the speakerphone to your telephone base. • Move the cordless speakerphone closer to the telephone base.
Appendix Troubleshooting I want to use my speakerphone with a different telephone base. • You need to deregister the speakerphone from the current telephone base (page 8) and then register it to the new telephone base (pages 5-7). The batteries do not hold a charge. • Make sure that the speakerphone battery is installed and securely plugged into the connector.
Appendix Troubleshooting I get noise, static, or weak signal even when I'm near the telephone base. • If you subscribe to high-speed Internet service (DSL - digital subscriber line) through your telephone line, you must install a DSL filter between the telephone line cord and the telephone wall jack. The filter prevents noise and caller ID problems caused by DSL interference. Contact your DSL service provider for more information about DSL filters.
Appendix Troubleshooting I hear other calls while using my speakerphone. • Test the telephone line by plugging a different telephone into the telephone jack that you are using. If you still hear other calls, the problem is probably in your building's wiring or telephone service. Contact your telephone service provider (charges may apply). My calls cut in and out while I'm using my cordless speakerphone.
Appendix Troubleshooting I cannot hear a ring tone from the speakerphone when there is an incoming call. • Make sure you have registered the speakerphone to your telephone base. • If you have pressed MUTE or VOL– on the speakerphone when it is ringing, it mutes the ring tone of the speakerphone. The ring tone resumes on the next call. • You may have too many extension phones on your telephone line to allow all of them to ring simultaneously. Try unplugging some of the other phones.
Appendix Troubleshooting The CHARGE light on the speakerphone is off while charging. • Make sure the power cord of the charger is plugged in correctly and securely. • Make sure that the battery connector is securely plugged into the cordless speakerphone. • Place the speakerphone face upward in the charging cradle until the CHARGE light on the speakerphone turns on. • Remove the battery from the speakerphone, then insert the battery back into the speakerphone.
Appendix Important safety information This symbol is to alert you to important operating or servicing instructions that may appear in this user’s manual. Always follow basic safety precautions when using this product to reduce the risk of injury, fire or electric shock. Safety information • Read and understand all instructions in the user’s manual. Observe all markings on the product. • Avoid using a telephone during a thunderstorm. There may be a slight chance of electric shock from lightning.
Appendix Important safety information • If this product does not operate normally, see the Troubleshooting section on pages 22-29 in this user’s manual. If you cannot solve the problem, or if the product is damaged, refer to Limited warranty on pages 41-44. Do not open this product except as may be directed in your user’s manual. Opening the product or reassembling it incorrectly may expose you to hazardous voltages or other risks.
Appendix Important safety information • Potential TV interference: Some cordless speakerphones operate at frequencies that may cause interference to TVs and VCRs. To minimize or prevent such interference, do not place the cordless speakerphone near or on top of a TV or VCR. If interference is experienced, moving the cordless speakerphone farther away from the TV or VCR will often reduce or eliminate the interference.
Appendix Important safety information Precautions for users of implanted cardiac pacemakers Cardiac pacemakers (applies only to digital cordless telephones): Wireless Technology Research, LLC (WTR), an independent research entity, led a multidisciplinary evaluation of the interference between portable cordless telephones and implanted cardiac pacemakers. Supported by the U.S.
Appendix Maintenance Taking care of your speakerphone • Your cordless speakerphone contains sophisticated electronic parts, so it must be treated with care. • Avoid rough treatment. • Place the speakerphone down gently. Save the original packing materials to protect your speakerphone if you ever need to ship it. Avoid water • Your speakerphone can be damaged if it gets wet. Do not use the speakerphone outdoors in the rain, or handle it with wet hands.
Appendix FCC, ACTA and IC regulations FCC Part 68 and ACTA This equipment complies with Part 68 of the FCC rules and with technical requirements adopted by the Administrative Council for Terminal Attachments (ACTA). The label on the back or bottom of this equipment contains, among other things, a product identifier in the format US:AAAEQ##TXXXX. This identifier must be provided to your telephone service provider upon request.
Appendix FCC, ACTA and IC regulations If this equipment is causing harm to the telephone network, the telephone service provider may temporarily discontinue your telephone service. The telephone service provider is required to notify you before interrupting service. If advance notice is not practical, you will be notified as soon as possible. You will be given the opportunity to correct the problem and the telephone service provider is required to inform you of your right to file a complaint with the FCC.
Appendix FCC, ACTA and IC regulations Industry Canada This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this device.
Appendix FCC, ACTA and IC regulations FCC Part 15 This equipment has been tested and found to comply with the requirements for a Class B digital device under Part 15 of the Federal Communications Commission (FCC) rules. These requirements are intended to provide reasonable protection against harmful interference in a residential installation.
Appendix FCC, ACTA and IC regulations To ensure safety of users, the FCC has established criteria for the amount of radio frequency energy that can be safely absorbed by a user or bystander according to the intended usage of the product. This product has been tested and found to comply with the FCC criteria. The telephone base shall be installed and used such that parts of the user’s body other than the hands are maintained at a distance of approximately 20 cm (8 inches) or more.
Appendix California Energy Commission battery charging testing instructions This telephone is set up to comply with the energy-conserving standards right out of the box. These instructions are intended for California Energy Commission (CEC) compliance testing only. When the CEC battery charging testing mode is activated, all telephone functions, except battery charging, will be disabled. To activate the CEC battery charging testing mode: 1. Unplug the telephone base power adapter from the power outlet.
Appendix Limited warranty The AT&T brand is used under license - any repair, replacement or warranty service, and all questions about this product should be directed to: In the United States of America, visit www.telephones.att.com or call 1 (800) 222-3111. In Canada, dial 1 (866) 288-4268. 1.
Appendix Limited warranty 3. How long is the limited warranty period? The limited warranty period for the PRODUCT extends for ONE (1) YEAR from the date of purchase.
Appendix Limited warranty • PRODUCT returned without a valid proof of purchase (see item 6 below); or • Charges for installation or setup, adjustment of customer controls, and installation or repair of systems outside the unit. 5. How do you get warranty service? To obtain warranty service in the United States of America, visit www.telephones.att.com or call 1 (800) 222-3111. In Canada, call 1 (866) 288-4268.
Appendix Limited warranty b. Include a “valid proof of purchase” (sales receipt) identifying the PRODUCT purchased (PRODUCT model) and the date of purchase or receipt; and c. Provide your name, complete and correct mailing address, and telephone number. 7. Other limitations This warranty is the complete and exclusive agreement between you and the manufacturer of this AT&T branded PRODUCT. It supersedes all other written or oral communications related to this PRODUCT.
Appendix Technical specifications RF frequency band 1921.536MHz — 1928.448MHz Channels 5 Operating temperature 32°F — 122°F 0°C — 50°C Nominal effective range 500 ft. (indoor) 980 ft. (outdoor) Battery pack BT185742/BT285742 2.4V 600mAh Ni-MH Charger voltage (DC adapter output) 6VDC @ 400mA Operating times* Talk time: up to five hours Standby: up to seven days *Operating time varies depending on your actual use and the age of battery. DECT 6.
Appendix Technical specifications Extended range and clarity Experience the best in long-range coverage and clarity, provided by a unique antenna design and advances in noisefiltering technology. The TL80133 is a fully cordless DECT 6.0 speakerphone offering a range of up to 500 feet. Open range test was performed by Wyle Laboratories, an independent commercial test facility. "Up to 500 feet" cordless speakerphone range refers to the maximum open field range.
Index Index A L Alert tones 11 Answer a call 13 Auto-off 13, 14, 19, 20 Light 10 Limited warranty 41–44 Listening volume 17 B M Battery charging 4 installation 3 Maintenance 34 Make a call 13 Mute 17 C O Call waiting 18 Charger installation 2 Operations 13–21 Options while on calls 17–19 D P Deregister all speakerphones 8 Paging 16 Q E Quick reference guide 9–12 End a call 13 R F Register a speakerphone 5–7 Replace a speakerphone 8 Ringer 15 Flash 18 I S Intercom 20–21 Safety inf
Index Index T Technical specifications 45–46 Temporary ringer silencing 15 Troubleshooting 22–29 V Voice command 13 Voice prompts 12 Volume control 17 listening volume 17 ringer 15 W Warranty 41–44 48
www.telephones.att.com © 2014 Advanced American Telephones. All Rights Reserved. AT&T and the AT&T logo are trademarks of AT&T Intellectual Property licensed to Advanced American Telephones, San Antonio, TX 78219. Printed in China. Issue 2.0 AT&T 03/14.
