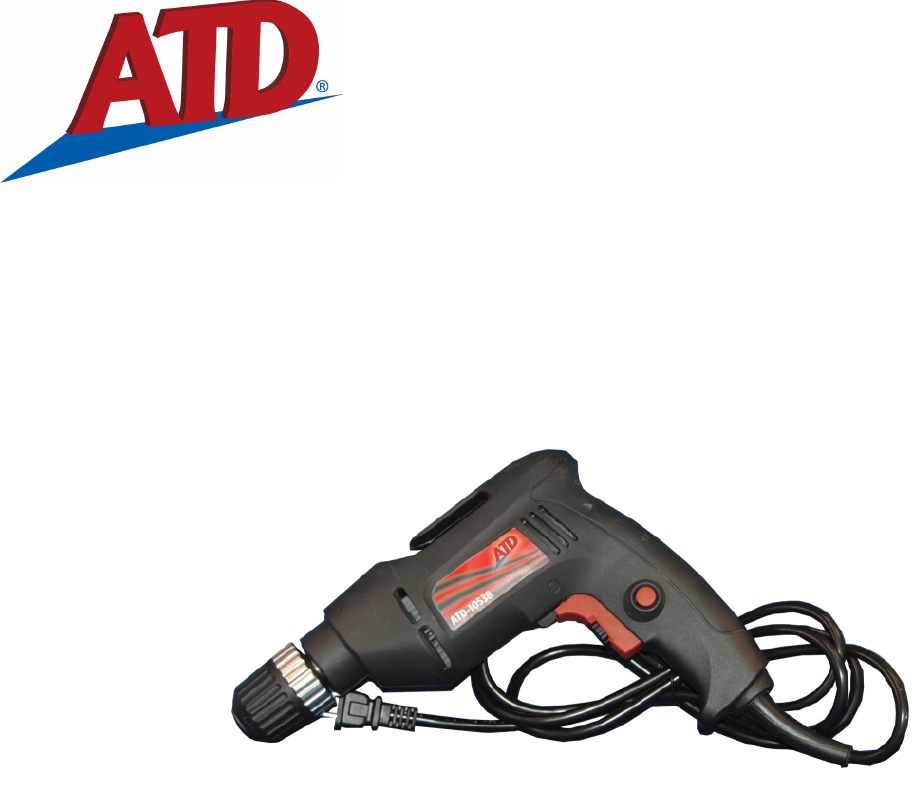

ATD-10538 3/8” Electric Drill Tool specifications: Rated Voltage: (V) Rated Frequency: (Hz) Rated current: (A) No-load Speed: (RPM) Speed Selection: Right/Left Rotation: Chuck Size: Drilling Capacity (max): - Steel: - Wood: Net Weight: 120 60 3.3 0-2700 Yes Yes 3/8” (10 mm) 3/8” (10 mm) 3/4” (20 mm) 3 lbs (1.4kg) WARNING – To reduce the risk of injury, please read this instruction manual before use.
Intended use The ATD10538 drill is intended for impact drilling in brick, concrete as well as for drilling in wood, metal, ceramic and plastic. Electrical safety The electric motor has been designed for 120V only. Always check that the power supply corresponds to the voltage on the rating plate. Double insulation This tool is double insulated in accordance with EN60745; therefore no earth (ground) wire is required. General safety rules for work with electric tools Read and understand all instructions.
2. Electrical safety. a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is grounded. c) Don’t expose power tools to rain or wet conditions.
. Power tool use and care. a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it is designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source before making any adjustments, changing accessories, or storing the tool.
Description 1. Chuck 3. Ventilation slots 7. Forward / Reverse switch 8. Speed selector thumbwheel 9. Switch 10. Lock button Applications (Use only for the purposes listed below.) ·Drilling wood,materials and resin boards. ·Drilling metal steel brass, aluminum sheets, stainless steel & pipe. Noise build-up Noise (sound pressure level) in the workplace can exceed 85 dB. in this case, sound insulation and hearing protection measures must be taken by the operator.
Initial Operating Always use the correct supply voltage: The power supply voltage must match the information quoted on the tool identification plate. Switch (Fig.1) This tool is started and stopped by pressing and releasing the switch (9). The speed can be adjusted in the high gear or in the low gear, by controlling the on/off-pressing force. Stepless Speed Control The machine runs with variable speed between 0 and maximum depending on the pressure applied to the switch (9).
Mounting and removing the bit (Fig.3) Insert the bit (16) into the keyless chuck (1) as far as it will go. While holding stationary base of chuck, with one hand, tighten the moveable portion of the keyless chuck with your other hand until bit is firmly held in place. Be sure that that the bit does not move and is held by all three jaws as you tighten the chuck. Operating Never cover the ventilation slots (3) since they must always be open for proper motor cooling.
The brushes should be checked periodically and worn-out brushes should be replaced in time. After replacing, inspect whether the new brushes can move freely in the brush holder. Keep running the motor for 15 minutes to match the contact of the brushes and commutator. Keep the ventilation slots clear from dirt, clean off the accumulated dust and oil dirt periodically. During normal operation, if anything happens, the power supply should be cut off at once and the tool should be checked and repaired.
1 3 4 5 6 7 8 9 10 15 16 17 18 11 12 19 13 28 14 20 21 22 29 23 24 25 26 27
