User guide

Technical Specifications
AC-AP-4040
400x400mm
General Features
Dimensions
HORIZONTAL supports:
400x400mm 400x300mm
400x200mm 300x300mm
300x200mm 200x300mm
VERTICAL supports:
400x400mm 300x400mm
300x300mm 300x200mm
200x400mm 200x300mm

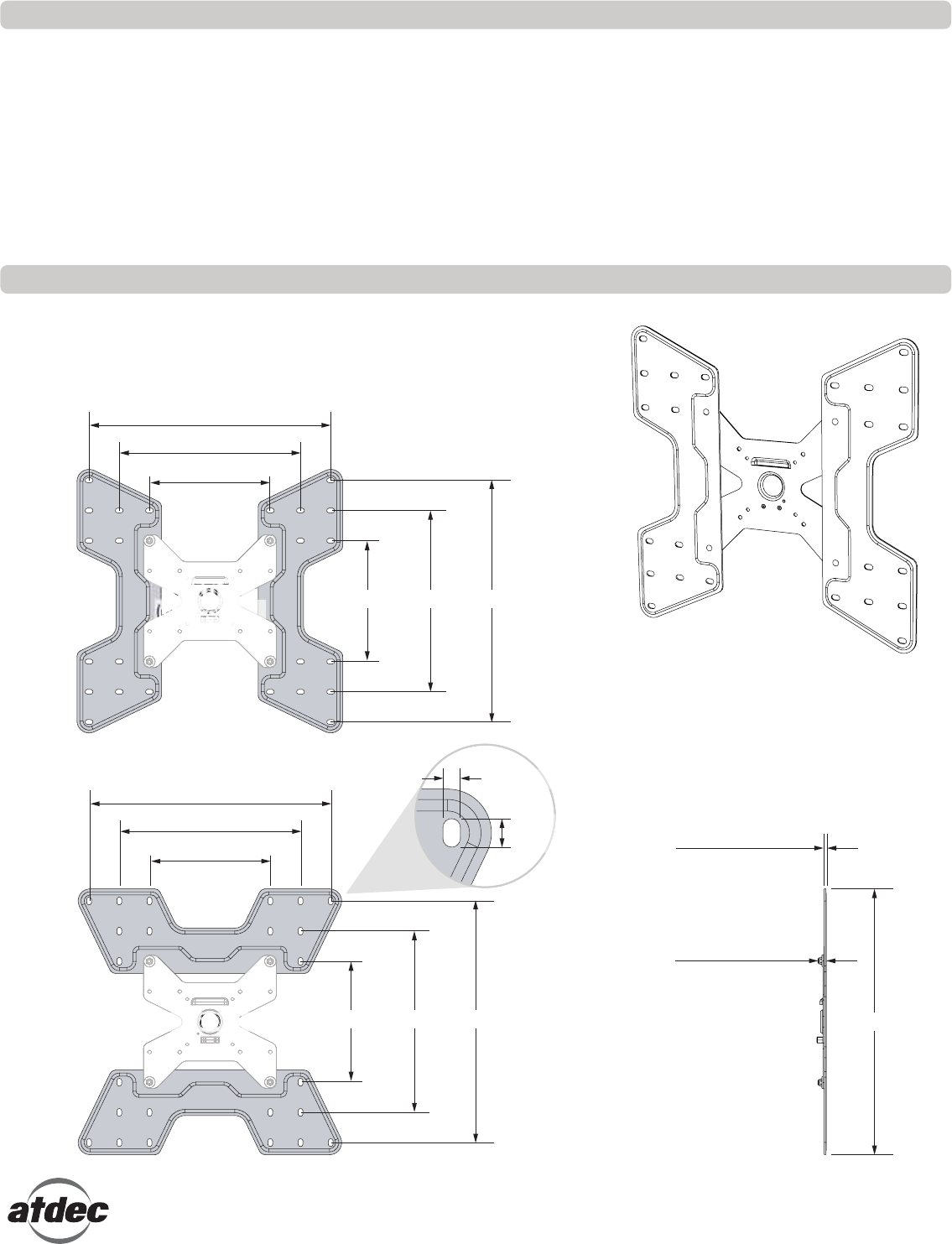

Mounting Configurations:
The Adaptor plates can be fixed vertically or horizontally.
Each configuration offers different VESA mounting hole configurations.
No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd.
Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published 27.03.12 ©
Adaptor plate
MAXIMUM LOAD 25kg (55lbs).
DISPLAY COMPATIBILITY
Compatible with Telehook:
TH-1032-VFM, TH-1040-VFM, TH-1040-CTS, TH-1040-CTSW, TH-1040-CTL, TH-1040-CTLW, TH-1040-CT-B2B,
TH-2040-VTR, TH-2250-VTP.
Product supports VESA mounting hole patterns: 200x300mm, 200x400mm, 300x200mm, 300x300mm, 300x400mm,
400x200mm, 400x300mm, 400x400mm (see below for Mounting Configurations).
INCLUDED HARDWARE COLOUR WARRANTY
All fasteners are included. Black 10 years limited
400mm300mm200mm
400mm
300mm
200mm
400mm300mm200mm
400mm
300mm
200mm
VERTICAL
(most common)
HORIZONTAL
4mm (0.16”)
13mm (0.51”)
440mm
8mm (0.32”)
13mm
(0.51”)
