User Manual
1 •
T D S 6 0 0 B S e r i e s
Features
• 1 GHz and 500 MHz Bandwidth
• 5 GS/s and 2.5 GS/s Sample Rates
• 4 and 2 Input Channels
• 8-Bit Vertical Resolution
• Greater than 11-Bits with Averaging
• Record Length to 15,000 Points
• 1 mV/div to 10 V/div Sensitivity
• 1.5% Vertical Accuracy
• Waveform Math and Advanced
Waveform DSP
• 1 ns Peak Detect (not available w/TDS 640A)
• Channel Deskew (not available w/TDS 640A)
• Fully Automated Measurement System
• Waveform Pass/Fail Template Testing
• Color VGA Display
• 3.5 in. DOS Format Floppy Drive
• RS-232, Centronics, GPIB and VGA I/O
Ports
Applications
• Digital Design Characterization and
Verification
• Telecommunications/Datacommunications
• Transient Event Capture
• High Energy Physics
Your designs may be digital but at today’s speeds, many of your toughest problems aren’t.
Crosstalk noise. Transmission effects. Ground bounce. Not to mention sub-nanosecond edges.
Today’s design problems require high bandwidth oscilloscopes that can measure up to these
challenges. The Digital Real-Time
™
architecture of the TDS 600 Series simplifies capturing inter-
mittent signals or non-recurring problems like glitches or metastable states caused by setup
and hold time violations.
TDS 600 Series provides design engineers excellent single shot accuracy for multi-channel,
high speed signal characterization. Additional features and specifications of the TDS 600 Series
are explained in the TDS Reference section of the Textronix Test and Measurement Catalog or
on the World Wide Web at www.tek.com.
Digital Real-Time™ Oscilloscopes
TDS 684B • TDS 680B • TDS 644B • TDS 620B • TDS 640A
See Tektronix on the World Wide Web:
http://www.tek.com
Tektronix measurement products
are manufactured in ISO
registered facilities.
Product(s) complies with IEEE Standard
488.2-1987, and with Tektronix Standard
Codes and Formats.

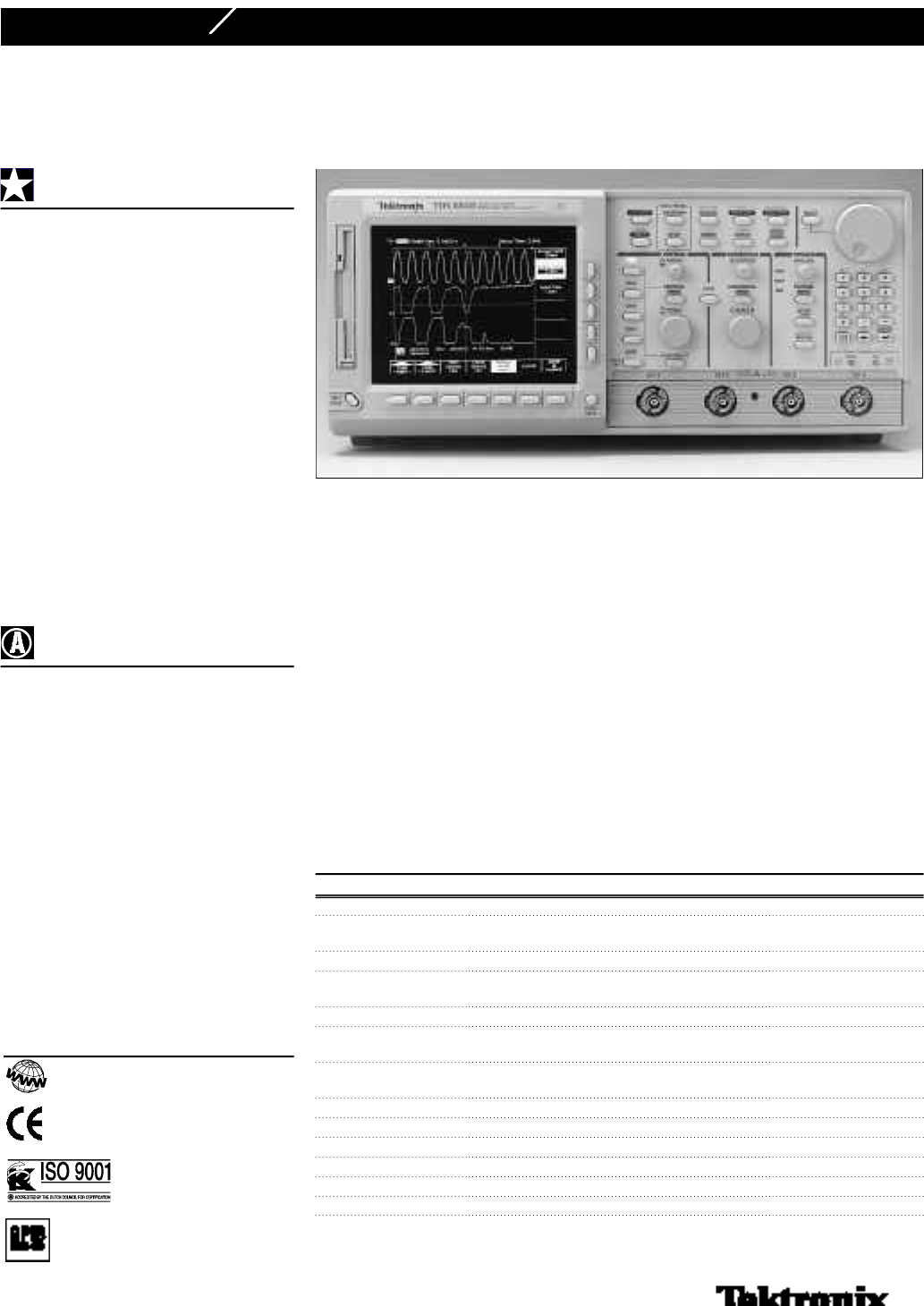

TDS 684B
TDS 640A TDS 620B TDS 644B TDS 680B TDS 684B
Total Channels 4 2 + 2 4 2 + 2 4
Sample Rate 2 GS/s 2.5 GS/s 2.5 GS/s 5 GS/s 5 GS/s
(all channels simultaneously)
Real-time Bandwidth 500MHz 500MHz 500MHz 1 GHz 1 GHz
Maximum Record 2,000 pts 15,000 pts 15,000 pts 15,000 pts 15,000 pts
Length per Channel
Vertical Resolution 8-Bits; >11-Bits with averaging
Time Measurement <110 ps <100 ps <100 ps <50 ps <50 ps
Accuracy @ 2 GS/s @ 2.5 GS/s @ 2.5 GS/s @ 5 GS/s @ 5 GS/s
Advanced Waveform Std. Std. Std. Std. Std.
DSP/Math
Standard Probes 4 P6139A 2 P6139A 4 P6243 None None
Display Type 7 in. mono 7 in. mono 7 in. color 7 in. mono 7 in. color
Disk Drive Std. Std. Std. Std. Std.
GPIB Port Std. Std. Std. Std. Std.
RS-232 & Centronics Std. Std. Std. Std. Std.
VGA I/O Port Printer Ports Std. Mono Std. Mono Std. Color Std. Mono Std. Color
