Input Channels - Channel Types

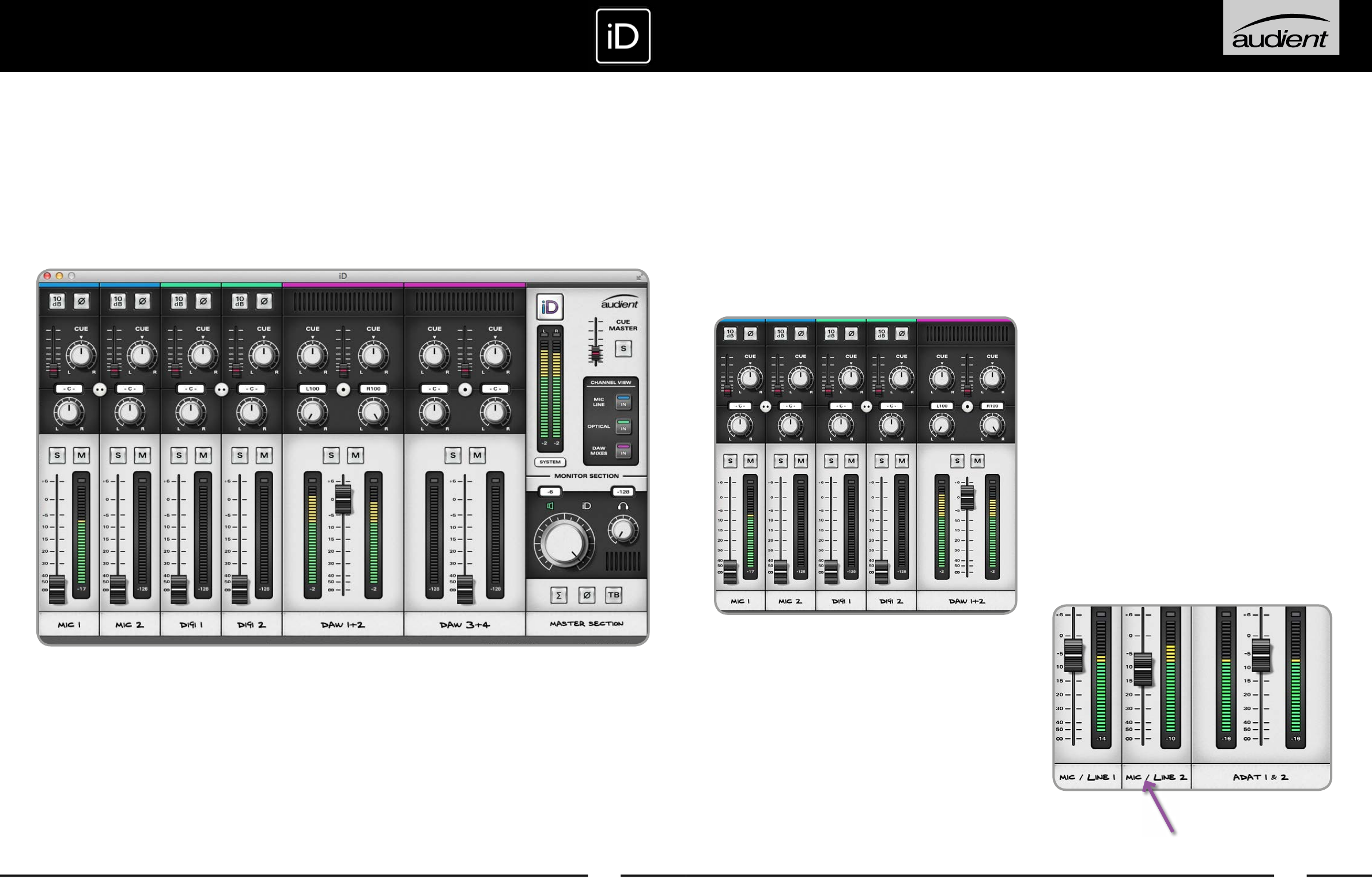

The iD mixer application features three
types of input channels, these are colour
coded and are as follows:
• Analogue Inputs (Mic/Line 1-2) - BLUE
• Digital Inputs (S/PDIF or ADAT) - GREEN
• DAW Mixes (Playback 1-4) - PURPLE
Analogue input channels are taken
from the microphone, line or D.I. (channel
one) inputs.
Digital inputs are provided as two
channels in S/PDIF mode and eight
channels in ADAT mode (four at > 48kHz).
DAW inputs are provided as two stereo
pairs and are designed as ‘virtual’ playback
channels from your DAW.
Setting outputs in your DAW will feed
signals into these channels. For example if
you send signal to ‘Output 1-2’ in your DAW,
it will be seen in the meters of ‘DAW 1+2’
in the iD mixer. Then if you want to hear it,
turn up the channel’s Main Mix Fader
Channel Naming Strip
The iD mixer application allows you to label
your channels via the editable
marker pen text on console tape!
Double clicking on the channel name
allows you to rename it using up to eight
characters.
You could name it ‘Kick’ for example
