User Guide

Modulation Speed and Depth can be adjusted.
The Stereo button can be used to create a stereo effect by
modulating the right channel with phase shifted version of the sine
wave.
If the Vintage button is checked the characteristics of a vintage
analog tremolo effect are emulated. The Tremolo effect can also be
used as an 'analog warmer' (set Depth to zero).
7.26 Tuner
The Tuner effect can be used to tune instruments like guitar, bass etc.

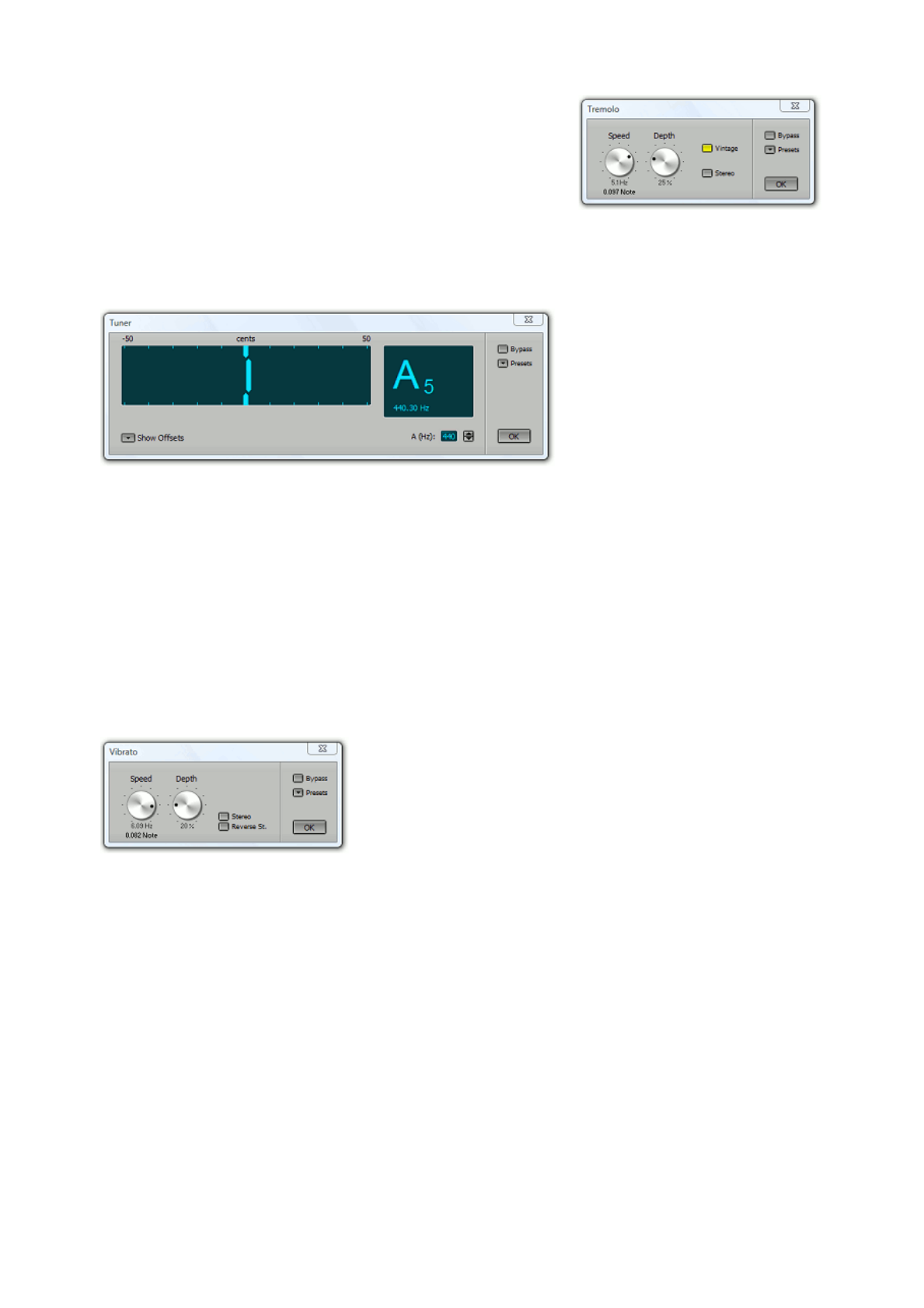

Tuner window
The Tuner typically works best if it's used before any other effects (like the Guitar Amp).
The A box determines the frequency of note A5. The Tuner effect can be used to measure the frequency of
an A5 played on, for example, a piano. This value can be entered in the A box, so other instruments can be
tuned to the same pitch.
Note: in order to use the Tuner effect you should switch the track's Rec button on. Alternatively you can
make sure Practice Mode is being used.
7.27 Vibrato
Vibrato modulates the pitch of the signal with a sine wave.
Vibrato window
Modulation Speed and Depth can be adjusted.
7.28 VST Plugins
VST plugins are .dll files. In the Studio->Preferences menu a folder can be selected where the VST plugins
are located. MultitrackStudio looks for VST plugins in this folder and its subfolders.
VST plugins can be loaded in an effect slot using the slot's down arrow. The VST plugins appear in the
effect selector's "VST and DX plugins" section.
VST plugins that do not have their own user interface will be made to look like native MultitrackStudio
effects. Plugins that do have their own user interface will be shown in a window with OK, Bypass and
Presets buttons.
Any presets coming with the plugin appear in the Presets menu. The presets can be factory presets (stored
in the dll file itself), presets stored in .fxb bank files or presets stored in .fxp files. MultitrackStudio looks for
matching .fxb/.fxp files in the folder where the .dll file is located, and all of its subfolders.
Tremolo window
