User Manual

Professional UHF

Wireless Systems

ATW-RM1 Rack Mount Hardware Kit

Installation and Operation

Assembly Instructions/ATW-RM1 Rack-mount Hardware Kit

For use with Audio-Technica 2000 and 3000 Series wireless

systems and for the ATW-DA49 antenna distribution system.

This kit contains the hardware necessary for mounting a half-rack

receiver or distribution system in a 19" audio equipment rack; also

brings antennas to the front for improved reception.

The following parts are included:

• Long rack ear

• Short rack ear

• Two BNC bulkhead connectors with mounting hardware

• Two 34" BNC-to-BNC cables

• Six rack ear screws

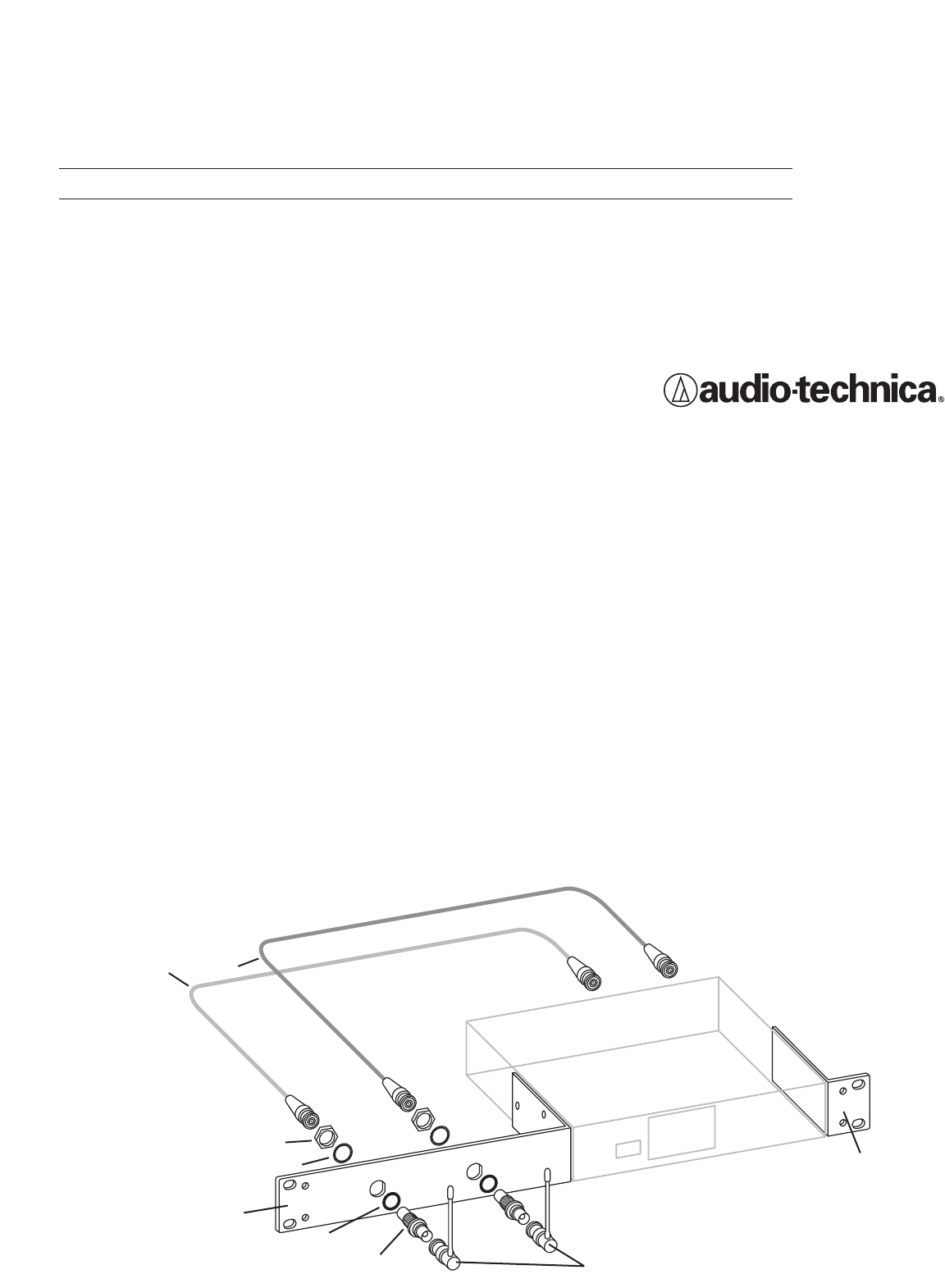

Figure 1

How to assemble the ATW-RM1 Rack Mount Hardware Kit (see Fig. 1)

1. Remove the nut and lock-washer from each bulkhead connector.

Install the connectors from the front into the two holes in the long

rack ear (see Fig. 1). Note that the flat on the threaded section

must be aligned with the flat in each panel hole.

2. Install the lock-washer and nuts (included) over the back of each

bulkhead connector. Secure each connector from the back with its

lock-washer and nut, tightening the nut firmly.

3. Connect one end of each provided BNC-BNC cable to the rear

antenna input jacks on the back of the receiver (or antenna distribution

system amplifier). Attach the other end of each cable to the back of

the BNC bulkhead connectors. Make certain the bayonet twist-rings

are fully latched on the connectors at both ends.

4. Finally, mount the receiver's antennas to each of the BNC bulkhead

connectors.

Bulkhead Connector

Rubber Washer

Lock-Washer

Nut

BNC-BNC Cables

Long Rack Ear

Short Rack Ear

Antennas (not included)
