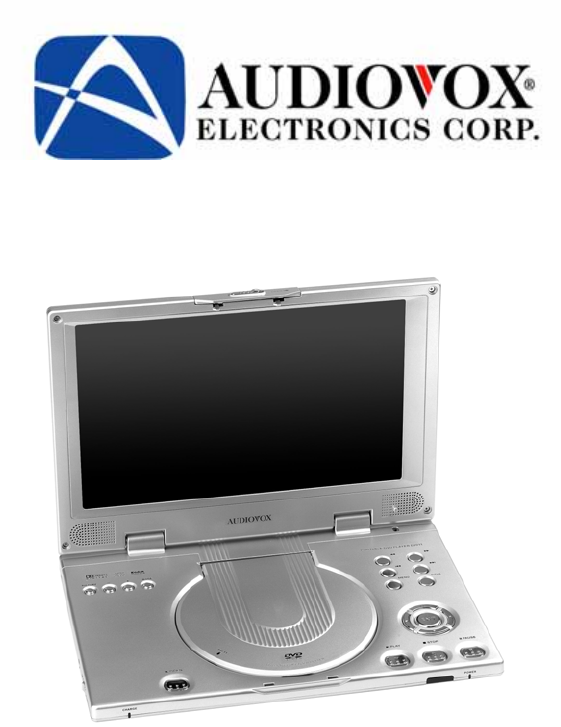

Model D2011 PORTABLE DVD PLAYER WITH 10.
Introduction Thank you for choosing the D2011 portable DVD Player. The unit applies the latest state of the art electronics and is designed for use in hotels, offices, vehicles or your home. The DVD Player is constructed to provide years of reliable, trouble-free service, and is compact so that you can take it with you anywhere and is designed for quick and easy setup. Please read all documentation prior to using this product. The documentation will assist you in obtaining the best equipment performance.
Cautions and Warnings WARNING: To reduce the risk of fire or electric shock, DO NOT expose this product to rain or moisture. The lighting flash with arrowhead symbol, within a triangle, alerts the user to “dangerous voltage” which could cause electric shock. The exclamation point within a triangle is to indicate that the user should read important operating and maintenance instructions in the manual. CAUTION: Laser radiation when open. Do not stare into beam.
Table Of Contents Introduction---------------------------------------------------------------------------------------------- 1 Cautions and Warnings------------------------------------------------------------------------------ 2 Table of Contents--------------------------------------------------------------------------------------- 3 Main Features-------------------------------------------------------------------------------------------- 4 Screen and System Panel Controls-----------------------------------
Main Features High Quality Audio and Video Advanced Playing Function LCD (Liquid Crystal Display) Screen Compatibility 10.2” Color LCD screen. Plays: DVD, DVD-R, DVD-RW, CD, CD-R, CD-RW and JPEG discs are compatible. Special Functions Supports Multi-angle, Multi-language and Parental-lock features. ON-Screen Display ON-screen displays your choice of English /Spanish/French.
Screen and System Panel Controls Front Panel Controls 1. OPEN button 2. Disc Tray Cover Press to open the disc tray cover. When the disc is loaded gently press the cover to close it. 3. PLAY button 4. Remote Sensor 5. STOP button Press to begin playback. IR receiver for remote control operation. Press to stop playback. 6. Power Indicator 7. PAUSE button Lights green when the player is in operation. Press once to pause playback. Press again to activate step frame by frame playback.
Screen and System Panel Controls 8. ENT button Press to confirm selection. 9. Direction buttons Press to select menu items or settings. 10. MENU button Press to display the disc menu on the LCD screen in Play mode. 11. TITLE button Press to display titles if present on the DVD disc. 12. Next button Press to skip to the next chapter or track. 13. Forward Scan button Press to scan forward. 14.
System Side Panel Controls Right Side Panel Controls 4. Audio Input/Output and Optical 1. Volume Control Used to adjust the headphone and speaker volume. 2. Headphone Jack Used to connect wired headphones for private listening. When headphones are connected to this jack the speaker output will turn off automatically. 3. AV IN/OUT Switch Switch to IN, to input an external Audio/Video source. Switch to OUT when the player is connected to an external monitor. Digital Output Jack.
Remote Control Remote Control 1. PWR button Press to turn the unit ON or OFF. 5. ENTER button Press to confirm settings. 2. INFO button Press to display detailed playback information. Keep pressing the button to display additional information or to turn the information display OFF. the items or 6. SETUP button Press to access the DVD player’s setup menu. 7. Number buttons (0-9) Press to select Password Numbers or go to a specific Track or Time on a disc. (GOTO Function) 3.
Remote Control 8. PREV button Press to go to beginning of current Track or Chapter. Press twice to go to beginning of a previous Track or Chapter. 16. PAUSE button Press to pause playback, press the PLAY button to resume playback. 17. STOP button Press once to stop playback. Press 9. NEXT button Press to go to next Track or Chapter. the PLAY button to resume normal playback. Press the button twice to 10.
System Connections Note: Before plugging the power cord into an AC outlet, make sure that all other connections have been made as described below. Power Supply Connection Connect the supplied adapter to the side of the DVD player in the jack marked “DC 12V IN”. Plug the two-prong end of the power cord to an AC100-240V outlet. If you have difficulty inserting the plug, turn it over and reinsert it. If the DVD Player will not be used for a long time, disconnect the plug from the outlet.
System Connections Connecting to an Amplifier The DVD player can be connected to an amplifier. Plug the supplied A/V cable into the audio jack on the right side of the unit and plug the other end into an audio input on the amplifier (White= left, Red=Right). Please refer to the equipment’s manual before connecting. Connecting to a Digital Ready Amplifier The DVD Player can be connected to an amplifier with a digital optical input.
System Preparations Using of Remote Control 1. Remove the battery holder. Refer to the figure above. 2. Insert the battery into the battery holder (observe correct polarity) and insert the battery holder into the remote control. 3. For best results, aim the remote directly at the player’s IR receiver window, within 15 feet, and angles not exceeding 60 degrees. The path between the remote control and remote sensor should be free of obstructions. 4.
System Preparations Disc Formats Supported By This Player DISC LOGO DIAMETER PLAYBACK TIME/ PLAYABLE SIDES 133 min (SS-SL) 12cm DVD 242 min (SS-DL) 266 min (DS-SL) 484 min (DS-DL) 41 min (SS-SL) 8cm 75 min (SS-DL) 82 min (DS-SL) 150 min (DS-DL) 12cm 74 min 8cm 20 min CD Note: The D2011 is capable of playing most recordable DVDs in the DVD-R format. However due to the variety of recordable DVD disc manufacturers and software manufacturers playback cannot be guaranteed.
Power Supply Rechargeable Battery Pack Your portable DVD player comes with a lithium ion rechargeable battery that attaches to the rear of the DVD player. Charge the battery fully before initial use. Charging time is typically about 5 hours. A fully charged battery delivers approximately 2-1/2 hours of use, but playing time varies from disc to disc. If the battery will not be used for a long period of time, fully charge the battery prior to storage.
Power Supply Attaching the Battery Pack Refer to the following steps for attaching the Battery Pack: 1. Place the DVD Player on a soft and smooth surface with the bottom of the unit facing UP (chassis up see the Fig.1). 2. With one hand on the DVD Player to prevent it from moving, take the battery and align the four (4) plastic tabs on the battery pack with holes on the player, and push the battery pack into the DVD Player. (see the Fig.1). 3.
Power Supply Detaching the Battery Pack If the DVD Player is not going to be used for a long period of time, the Battery Pack should first be fully charged and then detached from the DVD Player. When the DVD Player is turned OFF, the DVD Player is still consuming some power in STANDBY mode. This will eventually discharge the battery. Make sure the power is turned OFF before detaching the Battery Pack. 1. Place the player on a soft and smooth surface with the bottom of the unit facing up. 2.
Power Supply Using the DC Adapter To use the supplied Vehicle DC Adapter, disconnect the Battery Pack and connect the Vehicle Power Plug Adapter into the DVD Player’s Power Jack and the other end into the Vehicle DC outlet (Cigarette Lighter Socket) as shown below. Vehicle Power Plug Quick Tips: • Do not operate the unit while driving a vehicle. • Place the unit in a secure position for viewing. • Do not leave battery attached when using car adaptor as power source.
Installing The System Onto Vehicle Seat Back 1. Take one of the supplied straps from the carrier bag and connect the latch to one of the upper metal rings on the mounting bag. Connect the “S” hook to the other upper metal ring and place the loop over the headrest. Adjust the strap until the bag is firmly secured. 2. Take another strap from the carrier bag, and connect the latch to the lower metal ring on the left side of the bag.
Installing The System Between Vehicle Seats 1. Take one strap and connect the latch to the upper metal ring on the left side of the bag. Attach the “S” hook to the same ring after looping the strap around the headrest of the driver’s seat. Repeat this process for the right side (Passenger Seat). 2. Take another strap and connect the latch to lower metal ring on the left side of the bag. Attach the “S” hook to the same ring after looping the strap around the driver’s seat rail.
Using Headphones Using Wired Headphone Connect headphones into the headphone jack on the left or right side of the unit. Quick Tips: • Excessively loud volume could damage your hearing. • Turn down the volume before you connect the headphones, and then raise the volume to comfortable level. • Sound from the DVD Player’s external speaker will stop when headphones are connected.
DVD Player Operation Preparation 1. Turn on the player’s power by switching the POWER switch on the side of the player to “ON”. 2. Unlatch the LCD panel and lift it up. 3. Press the OPEN button on front panel to open the disc cover. 4. Load disc with the label facing up. 5. Close the disc tray cover, pressing the area of the disc cover that says “Press”. The player will automatically search for the disc and start playback.
Track. Press the NEXT button on the remote control and playback of the disc will start from the next Chapter or Track. System Setup You can customize the set up menu to your own preference. Press the “SETUP” button on the remote control to display the setup menu. The menu will include “General Setup”, “Speaker Setup”, “Dolby Digital Setup”, “Video Setup”, and “Preference Setup”. Press the direction button ( ) on the remote control to select a category.
System Setup Captions You can choose captions ON or OFF during playback. Screen Saver When activated, the unit will go into screensaver mode if the same image remains on the screen for 3 minutes. Last Memory Select on, and the unit will resume playback from the point where playback was stopped. Speaker Setup Downmix Select “LT/RT” in DOWNMIX, the player will output the audio signal IN MIXED MONO. Select “Stereo”, then the player will output a stereo signal.
System Setup Preference Page Audio, Subtitle, Disc Menu This setting allows you to hear or read the subtitles of a DVD in your choice of English, Spanish and French etc. if the disc contains multiple languages. Parental DVD discs equipped with the child lock function are rated according to their contents and settings vary from disc to disc. Depending on the disc, you can lock out playback of the disc altogether.
Playback Functions Forward and Reverse Scan Press the and buttons to Forward or Reverse scan a disc during playback (x2, x4, x8, x16 x32). Slow Forward Press the SLOW button to Slow Scan a track on a disc during playback (1/2, 1/4,1/8, 1/16). Repeat Repeat a Title, Chapter or Track by pressing the REP button on the remote control. Continually pressing the REP button will display a menu as follows: Repeat Chapter, Title, All or Off.
Playback Functions Search by time During DVD disc playback, press the GOTO button on the remote control once, there will be a menu displayed on the screen. You can set or select items for your preference. Use the direction buttons to select the desired item. Press the direction button to return. Select Title or Chapter and use the number buttons to input the desired title or chapter number. NOTE: Some DVD discs may not support this function.
Playback Functions Playing a JPEG JPEG is a common picture format. Hundreds of pictures can be stored in a disc in this format and viewed on the LCD screen. Normal Playback Load a JPEG disc into the DVD Player. After reading the disc, the DVD Player will display the images on the disc in sequence. Press the STOP button to return to the root menu. Press the MENU button to enter the preview menu.
Troubleshooting Symptom How To Check The player cannot play. • Make sure the AV IN/OUT switch on the right side of the player unit is in the OUT position for standard play. • Make sure the disc cover is completely closed. • Make sure a disc is loaded. • Make sure the disc is loaded with label side up. • Disc should be clean, not dirty or warped. • Player’s region code should be the same as the region code of the DVD disc.
Specifications Screen Resolution 800 x 480 TFT Screen Size 10.2 inches (259.08mm) (16:9) Laser Wavelength Wavelength: 780/650nm Video System NTSC Frequency Response 20Hz 20kHz ±2.5dB Audio Signal-to-Noise ≥ 85 dB Audio Distortion + Noise ≤ -70dB (1KHz) Channel Separation ≥ 70dB (1KHz) Dynamic Range ≥ 80dB (1KHz) Audio Out Analog Audio Out Video Out Video Out Power 0.2 Output Level: 1.5V±1.0 , Load: 10KΩ Output Level:1VP-P±0.
WARRANTY 90 DAY LIMITED WARRANTY Applies to Audiovox Video Products AUDIOVOX ELECTRONICS CORP. (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within ninety (90) days from the date of original purchase, such defect(s) will be repaired or replaced with reconditioned product (at the Company's option) without charge for parts and repair labor.
For Customer Service Visit Our Website At WWW .audiovox.com Product Information, Photos, FAQ’s Owner’s Manuals © 2005 Audiovox Electronics Corp., 150 Marcus Blvd., Hauppauge, N.Y.
