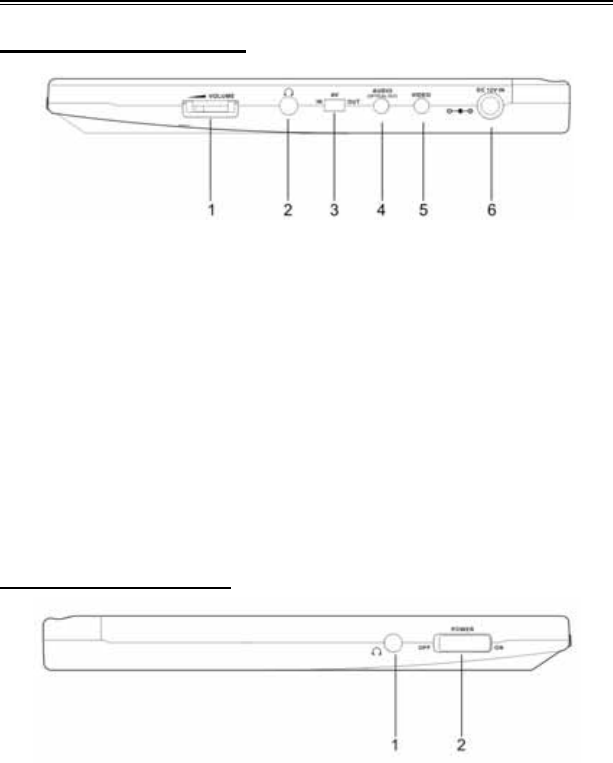

System Side Panel Controls
Right Side Panel Controls
1. Volume Control
Used to adjust the headphone and
speaker volume.
2. Headphone Jack
Used to connect wired headphones
for private listening. When
headphones are connected to this
jack the speaker output will turn off
automatically.
3. AV IN/OUT Switch
Switch to IN, to input an external
Audio/Video source. Switch to OUT
when the player is connected to an
external monitor.
4. Audio Input/Output and Optical
Digital Output Jack.
Used for connection to an external
amplifier or digital processor
(Optical Cable not supplied) or
external audio source.
5. Video Input/Output Jack
Used for connection to an external
monitor or video source.
6. DC 12V IN Jack
Used to connect the AC/DC
Adaptor or DC Vehicle Adaptor
Power to the unit.
Left Side Panel Controls
1. Headphone jack
Used to connect wired head-
phones for private listening.
When headphones are con-
nested to this jack the speaker
output will turn off
2. Power ON/OFF Switch
Used to switch the power on or
off.
- 7 -
