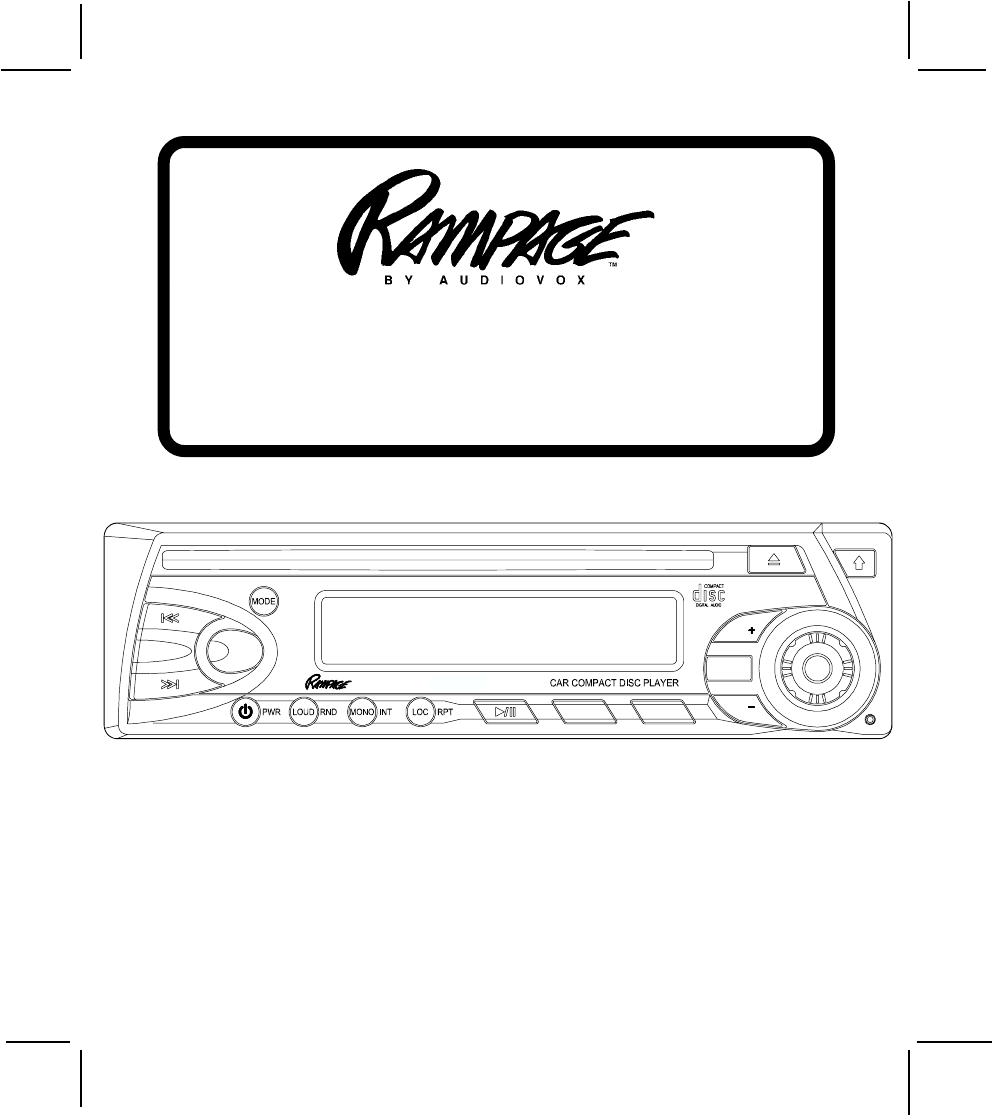

OWNER'S MANU AL MANUAL TRACK/SKIP EJECT VOL REL T UNING BAND SEL ACD-13 ACD-17 T/F MUTE VOL ACD-17 AM/FM/MPX RADIO WITH DETACHABLE FRONT PANEL, COMPACT DISC PLAYER AND QUARTZ CLOCK Released 9-19-02 128-6496 1 of 16
THIS PAGE INTENTIONALLY LEFT BLANK 2 128-6496 2 of 16
UNIVERSAL INSTALLATION PROCEDURE USING MOUNTING SLEEVE 1. Remove the front panel from the unit by pressing the RELease button at the top right corner; then slide the mounting sleeve off of the chassis. If it is locked into position, use the removal tools (supplied) to disengage it. 2. Check the dashboard opening size by sliding the mounting sleeve into it. If the opening is not large enough, carefully cut or file as necessary until the sleeve easily slides into the opening.
INSTALL ALLA INSTRUCTT IONS INST ALL AT ION INSTRUC TOLL-FREE INST ALL AT ION ASSIST A NCE INSTALL ALLA ASSISTA The installation and wiring connections for this unit are so simple, we doubt you'll need our help, but, if you do, we're here to help you. Just call our toll-free telephone assistance line at 1-800-645-4994 during the days and hours shown (U.S.A. and Canada only). TIME ZONE DAY PACIFIC MOUNTAIN CENTRAL EASTERN MON. - FRI.
RADIO WIRING R A DIO WIRING REFER TO PAGE 6 FOR SPEAKER WIRING CONTAINS: 1- 15A FUSE 1- 0.
SPEA SPE A K ER WIRING SPE A K ER WIRING SPEA REFER TO PAGE 5 FOR RADIO WIRING WARNING! ! NEVER COMBINE (BRIDGE) OUTPUTS FOR USE WITH 1 SPEAKER. ! NEVER GROUND NEGATIVE SPEAKER LEADS TO CHASSIS GROUND. ! FAILURE TO WIRE EXACTLY AS SHOWN BELOW MAY CAUSE ELECTRICAL DAMAGE TO THE RADIO.
9 14 24 17 15 16 13 23 27 19 TRACK/SKIP EJECT VOL REL 10 T UNING BAND SEL ACD-13 ACD-17 T/F MUTE 25 26 VOL 18 1 8, 22 11,21 12,20 1 POWER (PWR) ON-OFF BUTTON ) to turn the unit on and Press this button ( off when the ignition switch is on. When the unit is off, the time of day is automatically displayed on the Liquid Crystal Display (LCD) panel unless the ignition switch is off.
OPER AT ING INSTRUC OPERA INSTRUCTT I0NS response as desired. The bass level will be shown on the display panel from a minimum of B -7 to a maximum of B 7 (BAS 0 represents flat response), with each change accompanied by a beep tone. The display will automatically return to the normal indication 5 seconds after the last adjustment or when another function is activated.
During FM radio operation, press this button to select mono or stereo reception of the broadcast signal. Under normal reception mode as icon on the display panel indicated by the ST when tuned to an FM stereo signal. If the stereo signal is too noisy for comfortable listening, press the MONO/INT select button to switch to icon will monaural reception (the ST disappear from the display panel). To return to stereo reception mode, press the button again indication reappears.
OPER AT ING INSTRUC OPERA INSTRUCTT IONS continue until all tracks on the disc have been played, after which playback will automatically stop (unless the repeat mode had been selected). bt FORWARD TRACK/SKIP SELECTOR ( ) During disc play, this button is used to quickly select or skip to the beginning of a particular track in the forward direction. With each press of the button, the next higher TRACK number will be selected as shown on the display panel.
cq THEFT-DETERRENT LED Located on the chassis behind the front panel, a light-emitting diode (LED) will flash when the panel is physically removed. The flashing lightserves as a visual warning to the would-be thief that the unit has been disabled by removal of the front panel. cr RESET BUTTON A Reset button is located on the front panel of the unit in the extreme lower right corner.
SPECIFICATT IONS SPECIFICA SPECIFICATIONS Size: 7" W x 2" H x 6-1/8" D 178 mm x 50 mm x 155 mm Operating Voltage: 12 volts DC, negative ground Fuse Ratings: Output Power: Constant (yellow) lead: 15 AMP. Switched (red) lead: 0.5 AMP. 140 watts maximum ( 35 watts x 4 channels) Output Wiring: Output Impedance: Floating-ground type designed for 4 speaker use. Compatible with 4-8 ohm speakers. Tuning Range: AM: 519 – 1,735 kHz. FM: 87.3– 108.5 MHz. Sensitivity: AM: 20 uv. FM: 1.5 uv.
The radio section of your new sound system does not require any maintenance. We recommend that you keep this manual for reference on the many features found in this unit as well as how to set the clock. The compact disc player section also requires no routine maintenance, but proper understanding of its use and handling will help you obtain maximum enjoyment of its capabilities.
W A RR A NT Y 12 MONTH LIMI TED W A RR A NT Y LIMITED WA RRA AUDIOVOX CORPORATION (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product (at the Company's option) without charge for parts and repair labor.
