AUDIX M55

INSTALLATION GUIDE

Thank you for choosing Audix! Our products are designed to provide you with many

years of reliable service. Please read this manual before using the system

for optimal installation and operation.

Summary of content (4 pages)

PAGE 1

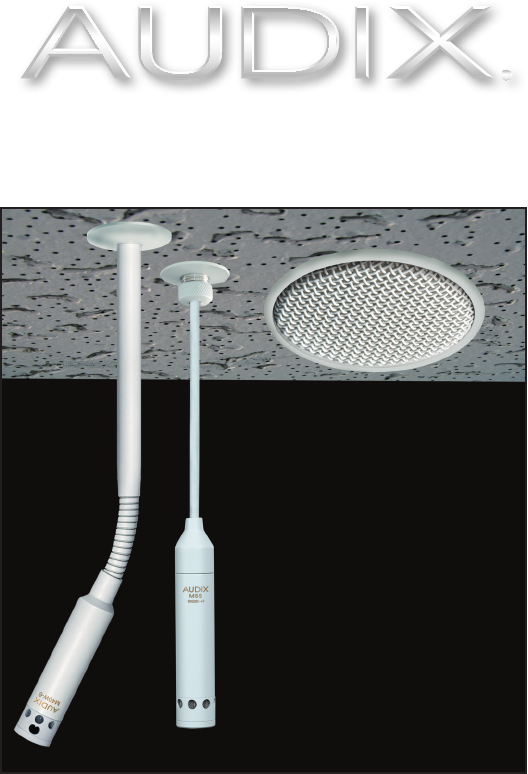

PROFESSIONAL MICROPHONES AUDIX M55 INSTALLATION GUIDE Thank you for choosing Audix! Our products are designed to provide you with many years of reliable service. Please read this manual before using the system for optimal installation and operation.
PAGE 2
M55 EXPLODED VIEW: SLOTTED MOUNTING NUT MALE & FEMALE PHOENIX CONNECTORS BRASS STRAIN RELIEF FOR OUTER CABLE JBM55 PLENUM RATED BOX CEILING TILE WITH 5/8″ HOLE ADJUSTMENT NUT TIGHTENS BY HAND M55 M55 JUNCTION BOX ASSEMBLY BOTTOM VIEW OF JUNCTION BOX • • • • • • • • • DRILL 5/8 INCH HOLE IN THE CEILING TILE. OPEN JMB55 BOX LID AND PLACE BOX ON TOP OF 5/8 INCH HOLE IN THE CEILING TILE.
PAGE 3
INSTALLATION AND WIRING INSTRUCTIONS FOR AUDIX M55 CEILING MICROPHONES 1 2 Open lid of JBM55 box and place on top of ceiling tile drilled hole. 3 Insert ceiling mount through ceiling tile hole, and into JBM55 box then tighten the knurled nut. 4 3 21 Insert plenum wire through strain relief nut, then connect to the Phoenix terminal. Recommended cable: Belden 9451P - .124” O.D. or Belden 82761 - .116” O.D.
PAGE 4
SEISMIC RESTRAINT INSTRUCTIONS SEISMIC RESTRAINT DIAGRAM: PLENUM RATED CABLE PLENUM RATED BOX Wrap the cable through fastening point (beam,eyebolt). Next, slip the cable through the top of cable stay barrel pulling excess cable until taut. CABLE g g g CABLE RELEASE PIN g g g g CABLE STAY BARREL g CABLE RELEASE PIN g g To loosen or disassemble cable, depress the cable release pin and pull cable to desired length. LITJB405570 ver. 2.
