Setup guide

3
Section
Display Features
 The FLI-150(-TS) is capable of displaying 16M (24 Bit) colors in a continuous
spectrum. The high contrast LCD enhances the image with no geometric distortion.
 FLI-150(-TS) Series directly accepts an analog 3,4, or 5 wire RGB with separate H/V,
composit, or sync on green. This is the standard PC video signal.
 The FLI-150(-TS) Series is auto synchronous adjusting the display to the appropriate
input between VGA and SXGA (Note: XGA is the displays native mode, SXGA is
interpolated).
 The FLI 150(-TS) Series is supplied with a Anti-Glare Touch Screeen [TS models] or
an Anti-Glare impact window on non touch screen models.
 The FLI-150(-TS) Requires an external 12 VDC power supply such
AutomationDirect’s PS-MON is required. Turn on the power.
Adjusting the Display
The FLI-150 (-TS) Series display has an embedded microprocessor on the converter
card [the electronics that drive the LCD], and has been recently updated with a more
powerful chip set. In most cases the unit will require very little if any user intervention to
operate correctly. That is, produce a sharp, stable picture.
The micoprocessor in the display has the capability to adjust itself to the computer to
which it is attached. This auto-adjustment will take place when the unit is first installed
and connected to a computer, if the video input changes, or the user initates it. If the
picture is not satisfactory, the first step is to allow the unit to attempt to re-adjust itself to
your computer.

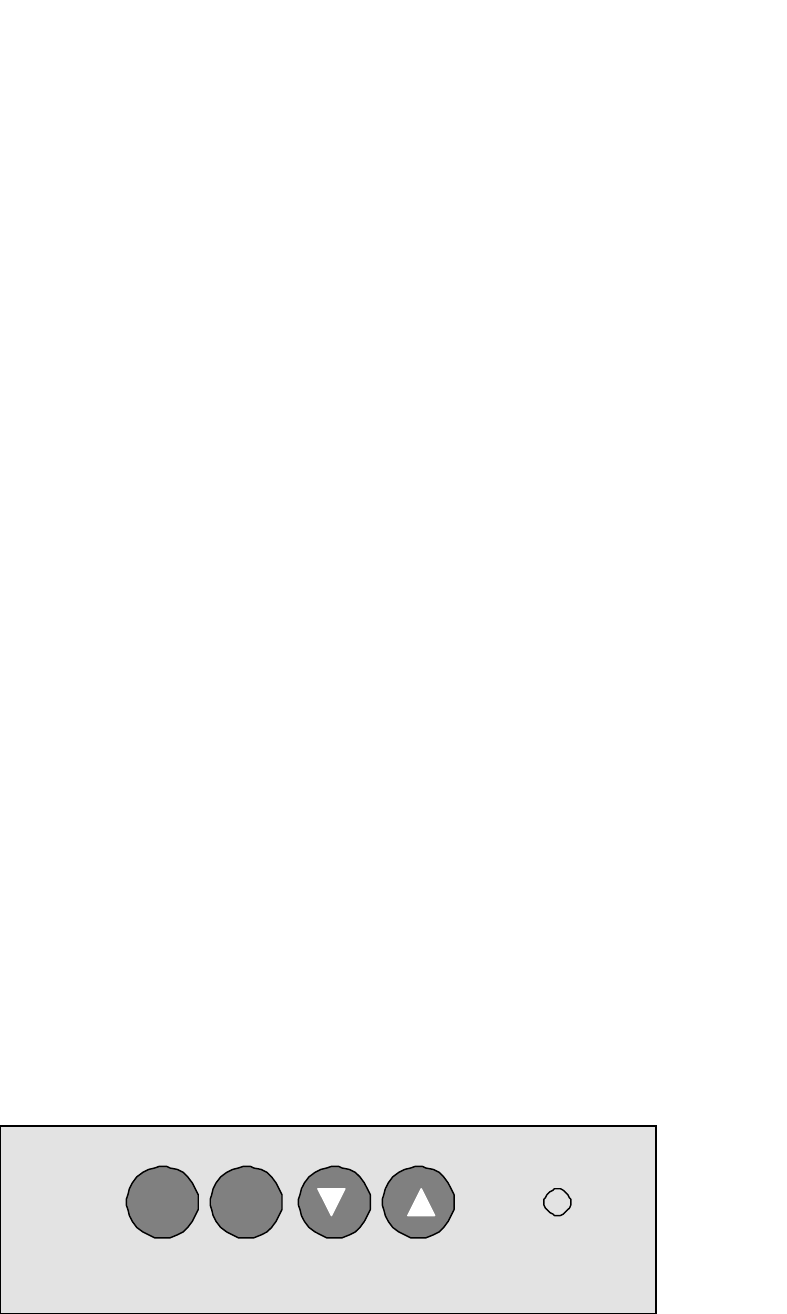

Located on the rear of the unit is a membrane keypad used for adjusting the display..
See figure 1 below:
Figure 1
Getting
Started
Select Menu
